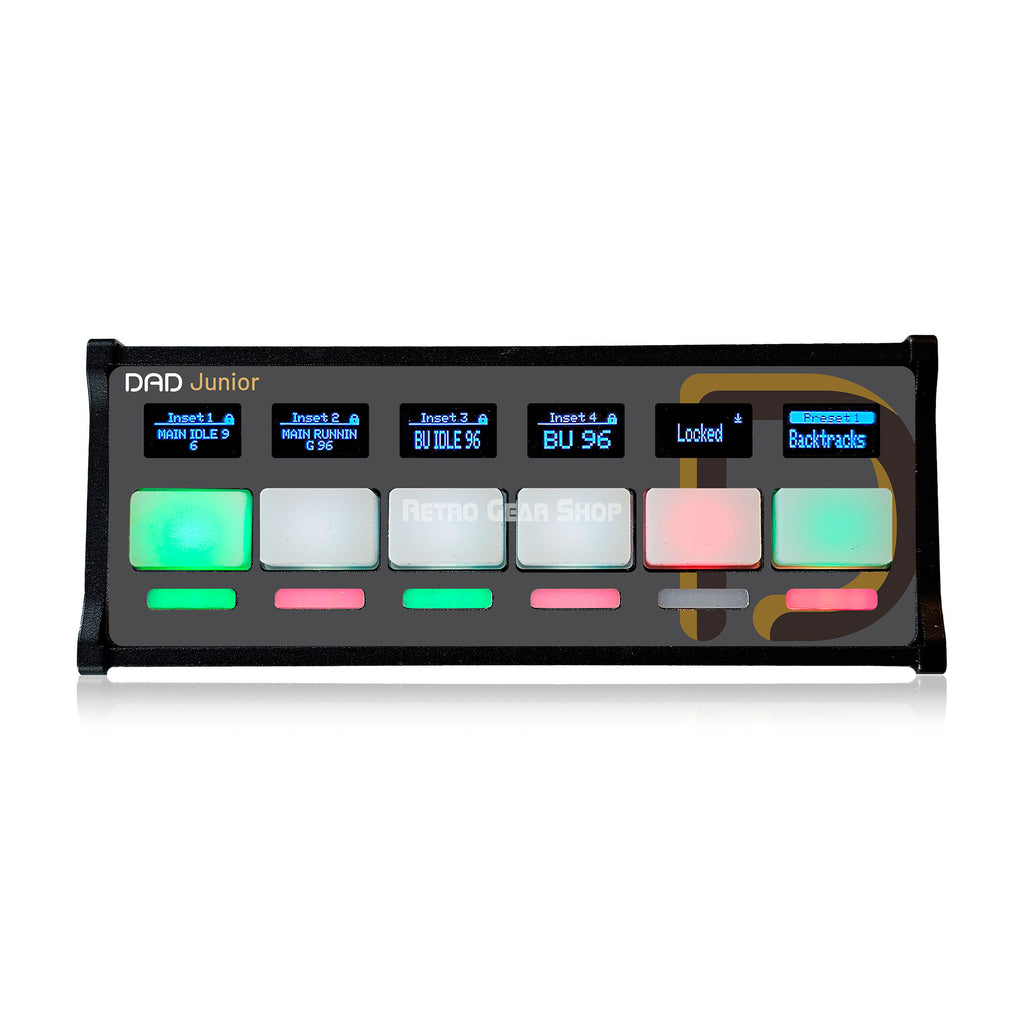

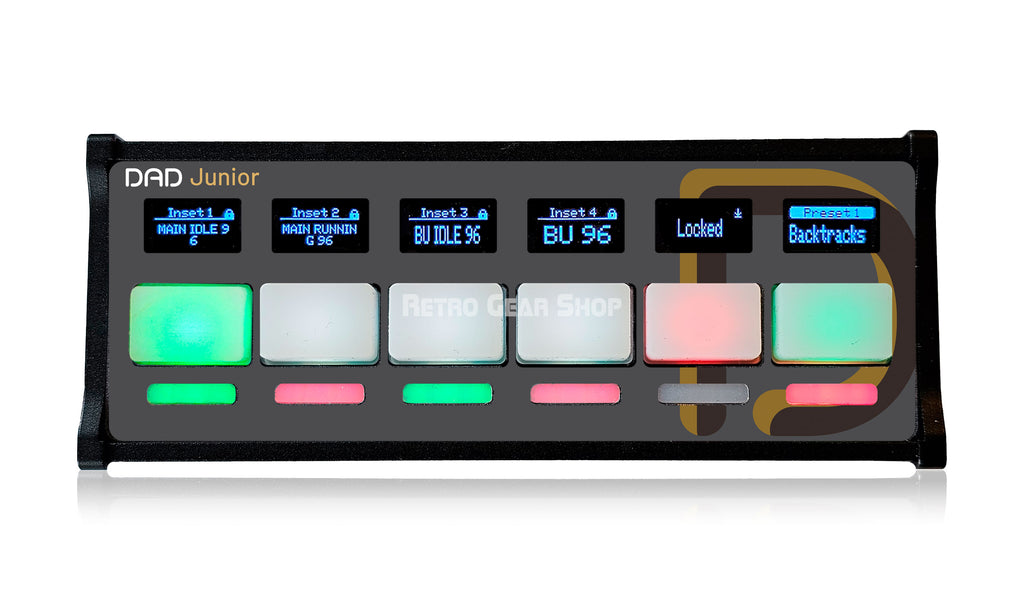

Digital Audio Denmark DAD Junior Control | Pack Controller
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
Junior Control Pack Controller is PoE-enabled control unit for manual control of pre-configured Routing Presets and Buckets in any DAD Thunder | Core audio interface.
The Control Pack functionality is embedded in all Thunder | Core units. Once a configuration has been made via the DADman software it can be controlled via DADman and via the Junior Controller. Junior- is connected via Ethernet to the IP address of the Thunder | Core unit where Control Pack is active and will control the unit directly also without DADman being connected.
• 6 RGB Led illuminated buttons.
• 6 RGB status Leds
• 6 character OLED displays
• Direct control of Thunder | Core products
• 1GB Ethernet connection
• Support for DHCP or Fixed IP address
• Powered via PoE or external 12V PSU
• 5V power supply included
• Compatible with: CORE256-BASE, AXCNTRBASE, AX64-BASE
• Interface:
1000BASE-T, RJ45 connector,
4-pair connection
• PoE: According to IEEE 802-3, class 0
• DC power:
12 Volt, 5.5mm/2.1mm
DC connector. Tip is +5V
• Power Consumption: 2.5 Watt max
• Dimensions:
11.6 cm x 4.8 cm x 4 cm
4.6” x 1.9” x 1.6”
• Weight: 0.16 kg / 0.35 lbs.
• Operating Temperature: 0 – 45 ºC / 32 - 113ºF
• Humidity: 20 to 85%, non-condensing
• EMC Compliance:
CISPR 32:2015, CISPR
32:2015/AMD1:2019, CISPR 35:2016, IEC 61000-3-
2:2018, IEC 61000-3-2:2018/AMD1:2020, IEC 61000-
3-3:2013, IEC 61000-3-:2013/AMD1:2017.
• Safety Compliance: IEC 62368-1: 2018
