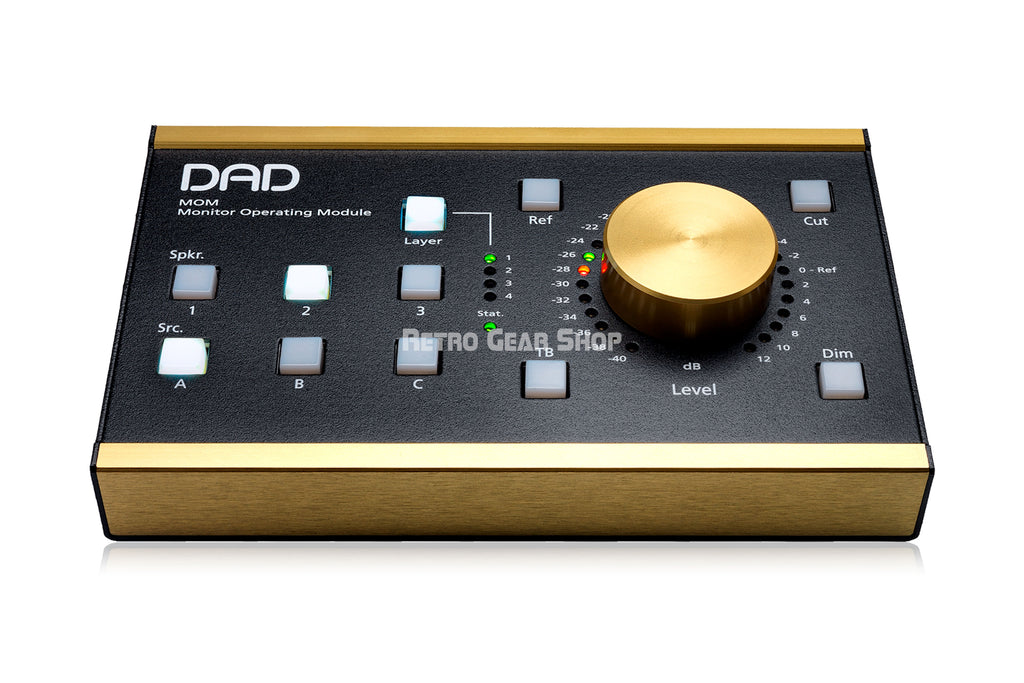

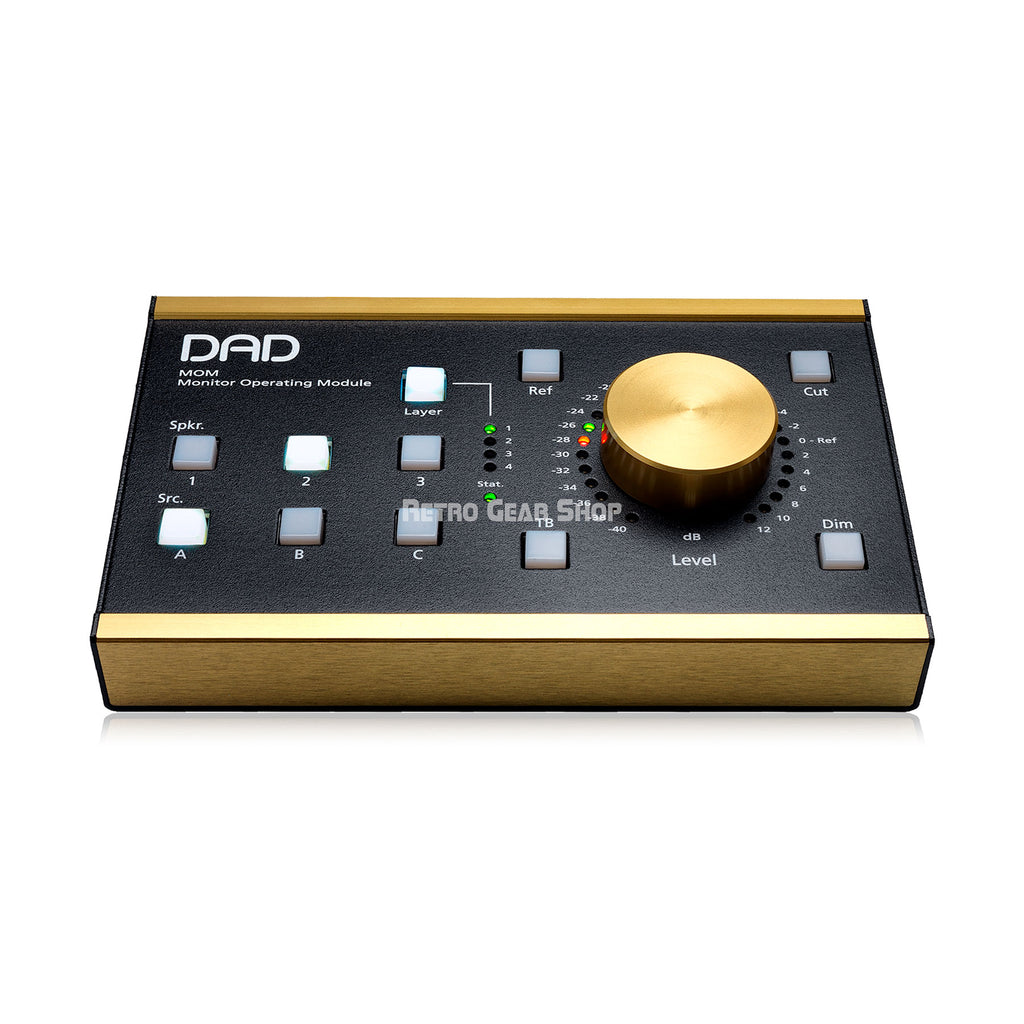

Digital Audio Denmark DAD MOM Base Monitor Operating Module

MOM-BASE – Monitor Operating Module is a versatile remote controller for connection via Ethernet to DADman providing tactile monitor control for all NTP and DAD Digital Audio devices, as well as OEM products with PRO | MON capabilities.

MOM-BASE has 10 user-definable keys in 4 layers. This effectively provides up to 40 user-definable keys by having 10 keys on each layer. It also features an external GPI input for e.g. a footswitch for talkback. The MOM buttons can be preconfigured in DADman for Source selection, Speaker set selection, Talkback, Dim, Cut and reference level set.

• Large volume knob, rotary encoder for volume control.
• Volume level readout via 27 LED ring with a resolution of 0.5dB
• Pre-configured functionality for 3 Speaker set, 3 Sources, Talkback, Dim, Cut and reference level set in up to 4 layers
• Input for footswitch
• 100MB Ethernet connection
• Support for DHCP or Fixed IP address
• Powered via PoE or external 5V PSU
• 5V power supply included

• Interface:
1000BASE-T, RJ45 connector,
4-pair connection

• PoE: According to IEEE 802-3, class 0
• Foot switch: 3.5 mm mini jack

• DC power:
5 Volt, 5.5mm/2.1mm
DC connector. Tip is +5V

• Power Consumption: 5 Watt max

• Dimensions:
17.2 cm x 11 cm x 5 cm
6.8” x 4.3” x 2”

• Weight: 1 kg / 2.2 lbs.

• Operating Temperature: 0 – 45 ºC / 32 - 113ºF
• Humidity: 20 to 85%, non-condensing

• EMC Compliance:
CISPR 32:2015, CISPR
32:2015/AMD1:2019, CISPR 35:2016, IEC 61000-3-
2:2018, IEC 61000-3-2:2018/AMD1:2020, IEC 61000-
3-3:2013, IEC 61000-3-:2013/AMD1:2017.

• Safety Compliance: IEC 62368-1: 2018
