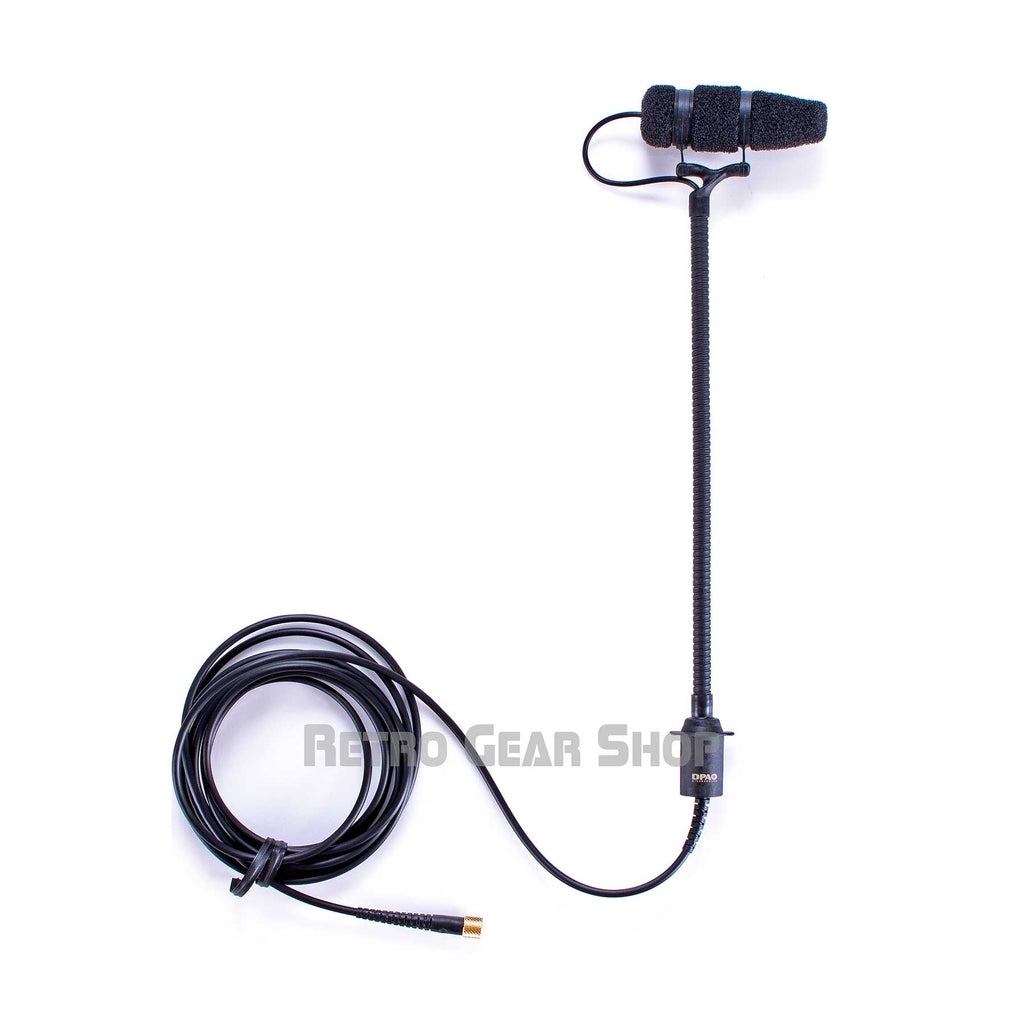

DPA Microphones 4099 Drum Extreme SPL Microphone Small Diaphragm Super Cardioid Condensor
DPA Microphones 4099 Drum Front

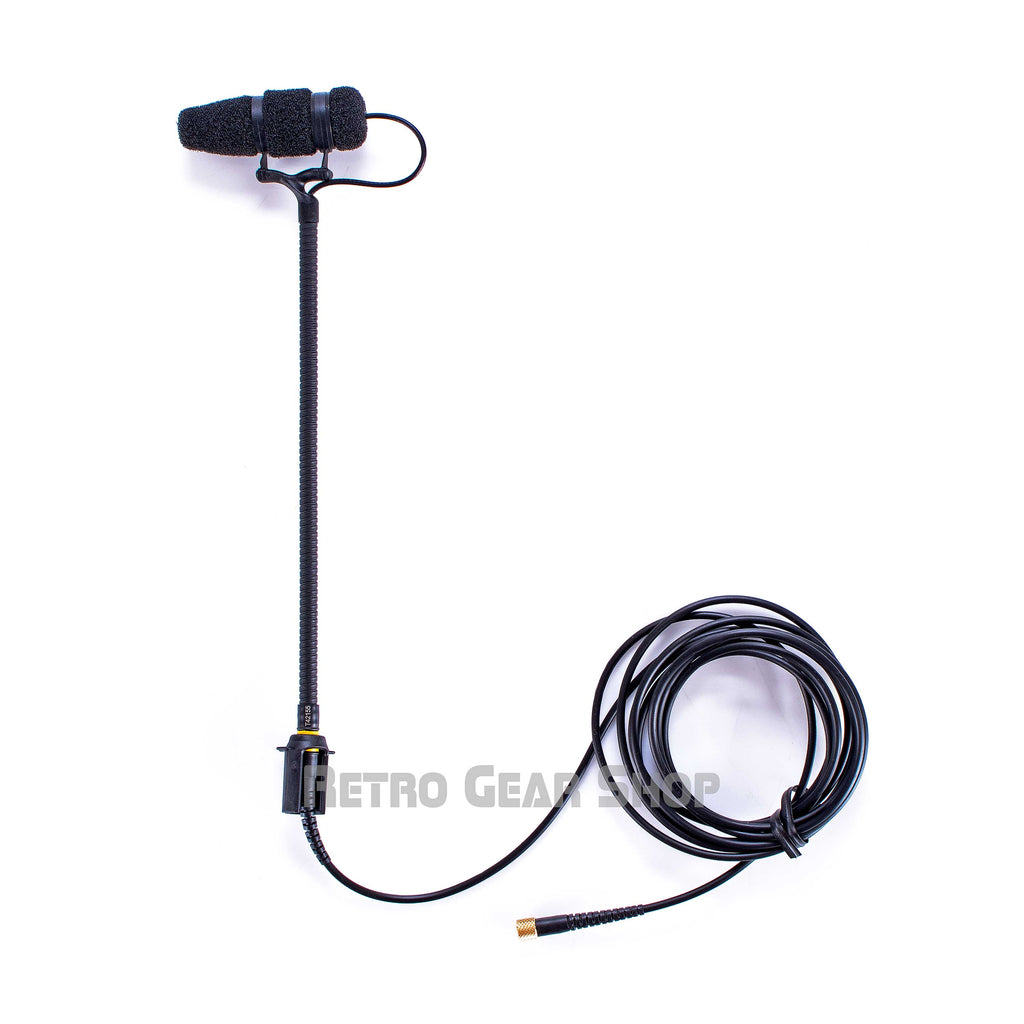

DPA Microphones 4099 Drum Rear

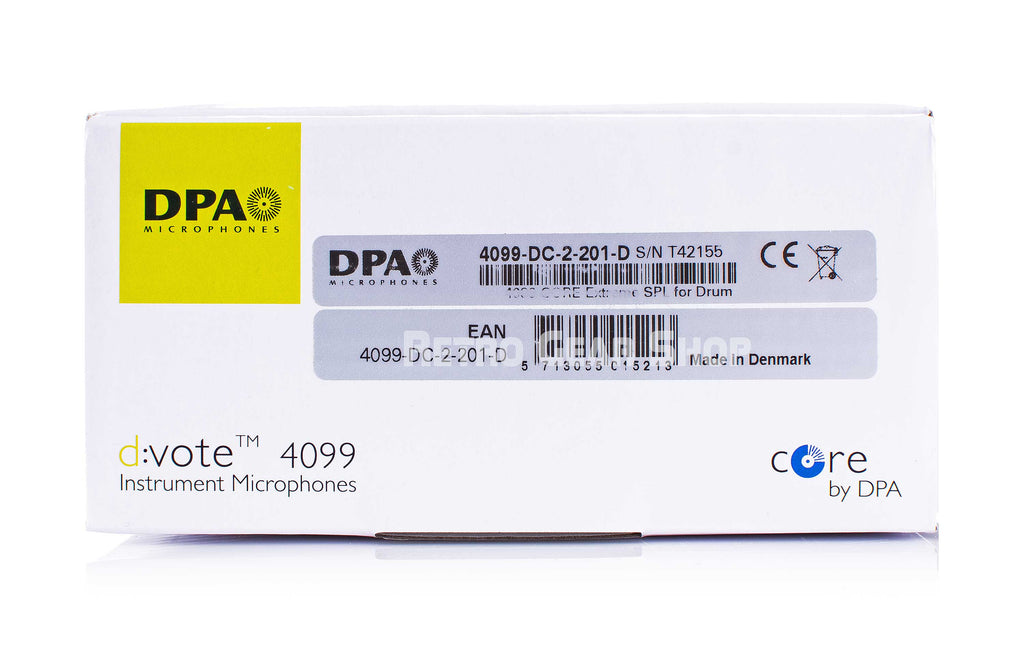

DPA Microphones 4099 Drum Box

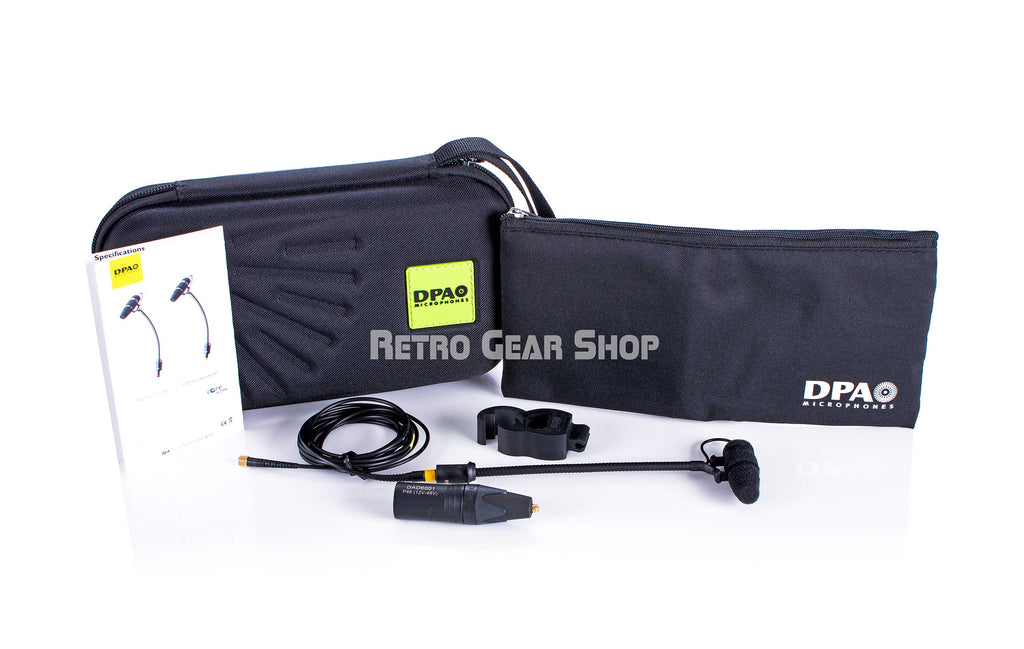

DPA Microphones 4099 Drum Case Manuak Extras
DPA Microphones 4099 Drum Rear

DPA 4099 Drum Microphone

Regular price $620

HomeOutboard/RecordingMicrophonesDPA

DPA 4099 Microphone for Drums

Out of stock. Contact us to order and for ETA.

From the piano to guitar; strings to woodwinds; brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument; just make sure you have the right type of clip to mount it correctly.The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

Free shipping in the USA with Fedex Ground
Retro Gear Shop is an authorized DPA Microphones Dealer.
Brand New with full Warranty.
Any questions, contact us!
Directional pattern - Supercardioid
Principle of operation - Pressure gradient
Cartridge type - Pre-polarized condenser
Frequency response  - 20 Hz - 20 kHz
Effective frequency range ±2 dB, at 20 cm (7.9 in) - 80 Hz - 15 kHz with 2 dB soft boost at 10-12 kHz. Second order low-cut filter at 80 Hz with DAD4099-BC
Sensitivity, nominal, ±3 dB at 1 kHz -2 mV/Pa; -54 dB re. 1 V/Pa
Equivalent noise level, A-weighted - Typ. 28 dB(A) re. 20 μPa (max. 31 dB(A))
Distortion, THD < 1% - 134 dB SPL RMS, 137 dB SPL peak
Dynamic range - Typ. 109 dB
Max. SPL, THD 10% - 152 dB SPL peak
Rated output impedance - From MicroDot: 30 - 40 Ω. From DAD4099-BC or DAD6001-BC: 100 Ω
Cable drive capability - Up to 300 m (984 ft) with DAD6001-BC/DAD4099-BC XLR Adapter
Output balance principle - Signal balanced with DAD4099-BC or DAD6001-BC XLR Adapter
Common mode rejection ratio (CMRR) - > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR Adapter
Power supply (for full performance) - For wireless systems: Min. 5 V - max. 10 V through DPA adapter
With DAD6001-BC or DAD4099-BC: P48 (Phantom Power). Will work from 12 V
Current consumption - Typ. 1.5 mA (microphone). 3.5 mA with DAD4099-BC or DAD6001-BC XLR Adapter
Connector - MicroDot
Color - Black
Weight - Microphone: 17 g (0.60 oz)
Instrument Microphone Clamp Mount (CM4099): 16 g (0.56 oz)
Instrument Microphone Clip for Accordion (AC4099): 5 g (0.18 oz)
Instrument Microphone Clip for Bass (BC4099): 20 g (0.71 oz)
Instrument Microphone Clip for Cello (CC4099): 13 g (0.46 oz)
Instrument Microphone Clip for Drum (DC4099): 13 g (0.46 oz)
Instrument Microphone Clip for Guitar (GC4099): 12 g (0.42 oz)
Instrument Microphone Clip for Piano (PC4099): 19 g (0.67 oz)
Instrument Microphone Clip for Sax and Trumpet (STC4099): 7 g (0.25 oz)
Instrument Microphone Clip for Violin and Mandolin (VC4099): 10 g (0.35 oz)
Universal Instrument Microphone Clip (UC4099): 15 g (0.53 oz)
Stand Mount for Instrument Microphone (SM4099): 24 g (0.85 oz)
Cold Shoe Mount with standard 1/4" in thread (CS4099): 5 g (0.18 oz)
Microphone diameter - 5.7 mm (0.22 in)
Microphone length - 45 mm (1.8 in)
Cable length - 1.8 m (5.9 ft)
Cable diameter - 1.6 mm (0.06 in) / 2.2 mm (0.09 in)
Polarity - +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
Temperature range  -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) - Up to 90%
Gooseneck length - 140 mm (5.5 in)
