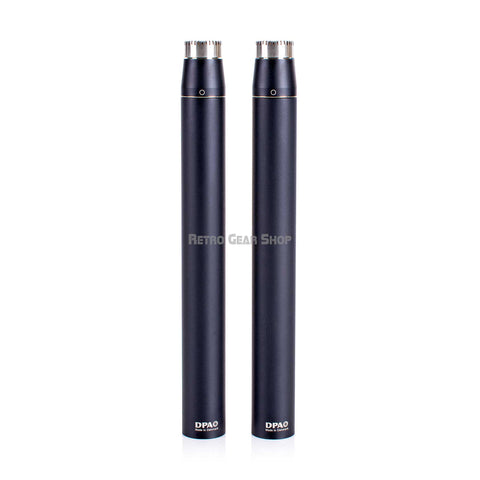

DPA ST4006A Omindirectional Stereo Pair
Out of stock. Contact us to order one and for ETA.
The 4006A Omnidirectional Microphone is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.
For reference stereo recording, there is no better choice than a d:dicate™ 4006A Omnidirectional Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.
Free shipping in the USA with Fedex Ground
Retro Gear Shop is an authorized DPA Microphones Dealer.
Brand New with full Warranty.
Any questions, contact us!
Out of stock. Contact us to order one and for ETA.
The 4006A Omnidirectional Microphone is a flexible solution. Engineers, broadcasters and musicians alike can achieve clean, natural and precise sound reproduction. This mic is ideal for A-B stereo pairs for symphonic concert hall recordings. It also excels on vocals, for close-miking all types of instruments and as an outdoor interview microphone.
For reference stereo recording, there is no better choice than a d:dicate™ 4006A Omnidirectional Microphone. These omnidirectional condenser microphones are linear and true in character. They come as a hand-matched pair that offers the truest capture of stereo sound available.
Free shipping in the USA with Fedex Ground
Retro Gear Shop is an authorized DPA Microphones Dealer.
Brand New with full Warranty.
Any questions, contact us!
Directional pattern - Omnidirectional
Principle of operation - Pressure
Cartridge type - Pre-polarized condenser
Frequency response - 10 Hz - 20 kHz
Effective frequency range ±2 dB 10 Hz - 20 kHz
Sensitivity, nominal, ±2 dB at 250 Hz 40 mV/Pa; -28 dB re. 1 V/Pa
Equivalent noise level, A-weighted - Typ. 15 dB(A) re. 20 µPa (max. 17 dB(A))
Equivalent noise level, ITU-R BS.468-4 - Typ. 27 dB (max. 29 dB)
Distortion, THD < 1% 136 dB SPL RMS, 139 dB SPL peak
Dynamic range - Typ. 124 dB
Max. SPL, THD 10% 146 dB SPL peak
Switchable attenuator, filters etc. 0 dB / -20 dB
Rated output impedance 200 Ω
Minimum load impedance 2 kΩ
Cable drive capability 100 m (328 ft)
Output balance principle - Impedance balancing with Active Drive
Common mode rejection ratio (CMRR) > 60 dB
Power supply (for full performance) - P48 (Phantom Power)
Current consumption 2.8 mA
Connector XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
Color Matte black
Weight 163 g (5.7 oz)
Microphone diameter 16 - 19 mm (0.6 - 0.75 in)
Capsule diameter 16 mm (0.6 in)
Microphone length 170 mm (6.7 in)
Maximum output voltage, RMS 8 V
Polarity +V at pin 2 for positive sound pressure
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90 %
Matching tolerance (frequency response and sensitivity) ±0.5 dB
Phase deviation for kit < 5°
