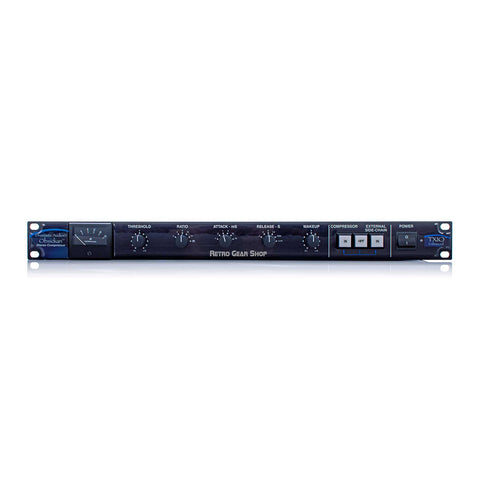

Dramastic Obsidian Used Front
Dramastic Obsidian Used Rear
Dramastic Obsidian Used Top Left
Dramastic Obsidian Used Bottom Right
Dramastic Audio Obsidian Box
Dramastic Obsidian Used Rear

Dramastic Audio Obsidian Used

HomeOutboard/RecordingCompressorsDramastic Audio

Dramastic Audio Obsidian 19"
In excellent shape and includes original box. Minor signs of cosmetic wear but fully functional. Awesome sounding compressor for mix bus or tracking.

VCA feed forward compression featuring Jensen transformers

Features:
Precision stepped controls to accurately recall settings
Electronically Balanced External Side-Chain Input XLR
TXIO Enhanced Transformer Balanced I/O
Internal High Pass Filter

Through the use of several proprietary methods the Dramastic Audio Obsidian performs a range of tasks unheard of from the average SSL or SSL-esque unit. The first difference the user will notice is that the unit suffers no ‘shrinkage’ to the audio sound field. The highs stay brilliant and clear and the bottom will continue to thunder (especially with the unit’s internal High Pass Filter engaged on the unit’s detection circuit).

The second thing the user will notice is that when the "auto" release time is employed the audio has a smooth, rich texture without any pumping or breathing. From there, if the user has decided that the audio is a little too smooth for their application a simple click of the release switch to the "lofi" setting will net all the "in your face" aggression a user may desire. Overall the clarity and performance of this unit is unparalleled by any unit based around a Voltage Controlled Amplifier (VCA) gain reduction cell. At first look it may suggest something from the past, but at first listen the user will understand the future of professional audio. Transformer balanced input/output interface which gives the Obsidian its unique sound. The TXIO Enhanced option produces that "phat" classic analog sound making the Obsidian an excellent way to add warmth and character to digital audio workstations.
Ratio settings: 2:1, 4:1, 8:1, 10:1, 12:1 and SKULL
Attack control range: 0.1, 0.3, 0.6, 10 and 30mSec
Release control range: 0.1, 0.3, 0., 1.2 sec, AUTO and Lo-Fi
Makeup Gain Output 12 db
Selectable Voltage Operation 115/230v
Hand Crafted in The USA
