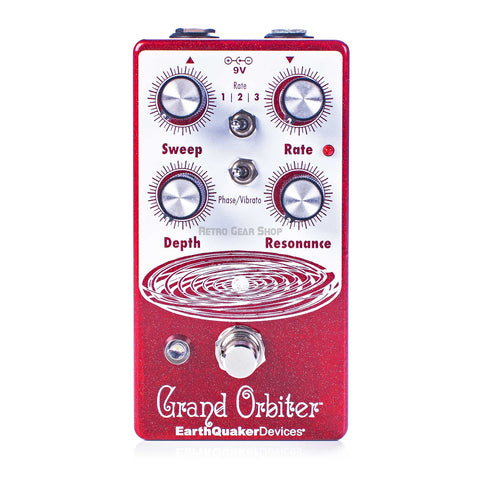

EarthQuaker Devices Grand Orbiter V3 Phaser
Currently sold out but we have more on order. Please contact us for availability.
Retro Gear Shop is an Authorized EarthQuaker Devices Dealer.
Brand New with full Warranty.
Sweep: Controls the frequency peak of the sweep. Higher peak clockwise, lower peak counter clockwise.
Rate 1,2,3: Changes the range of the speed control. Rate 1 is slow mode, Rate 2 is LFO kill to use the Orbiter as a fixed resonant filter, Rate 3 is fast mode.
Rate: Controls the speed of the LFO. Faster clockwise, slower counterclockwise.
Depth: Controls the amount of phase effect mixed with dry signal. Clockwise for more intense phasing, counterclockwise for less. In “Vibrato” mode, this acts as a volume control.
Phase/Vibrato: Cuts the dry signal to create a vibe/vibrato effect depending on the setting of the other controls. Vibrato is created by turning the resonance down low.
Resonance: Controls the regeneration of the phased signal. More resonant clockwise, more subtle counterclockwise.
Measures: 4.65" x 3.65" x 2.25" with knobs
Input Impedance: 1 MOhm
Output Impedance: <1 KOhm
This device features Flexi-Switch™ Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.
For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.
For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.
Since the switching is relay based, it requires power to pass signal.
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise. DO NOT RUN AT HIGHER VOLTAGES!
EarthQuaker Devices Grand Orbiter V3 Manual
