 Flock Audio Patch XT 192-point Digitally Controlled Analog Patchbay

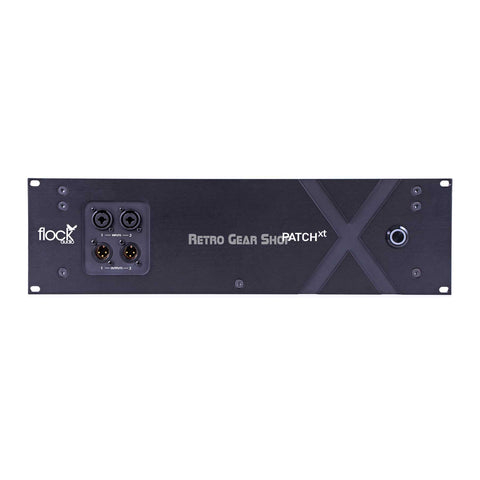

 Flock Audio Patch XT 192 96x96 Front
 Flock Audio Patch XT 192 96x96 Rear
 Flock Audio Patch XT 192 96x96 Rear

Flock Audio Patch XT 192 96x96

Regular price $11,750

HomeOutboard/RecordingConvertersFlock Audio Patchbays

Flock Audio Patch XT 192-point Digitally Controlled Analog Patchbay
The worlds most advanced digitally controlled 100% analog audio patch bay routing system.

Retro Gear Shop is an Authorized Flock Audio Dealer.
Brand New with full Warranty.

Free shipping in the USA with UPS Ground
Flat rate discounted shipping worldwide

Any questions, contact us!
The Flock Audio PATCH System is a digitally controlled, 100% analog audio patch bay routing system. A combination of Software known as the PATCH APP and a 192 Point Connection PATCH Hardware component, combined allows users to easily route and control analog audio routings without having to resort to the use of manual patch cables. The PATCH APP software application (OSX & Windows Compatible) is designed with familiarity in mind. PATH’s in the application represent audio signal flows from top to bottom. Signal flows are divided up into single vertical columns allowing users to drag + drop available analog audio equipment connected to the PATCH’s Hardware component. This analog audio equipment is cataloged in the Hardware Index located to the left side of the PATCH APP. The PATCH Hardware component is a 3U rack mountable unit that acts as the center piece hub of an audio equipment processing setup. Utilizing digital control over analog audio signals is what makes the PATCH System unique and unlike anything else in the audio industry
- 192 Point Connections (96 Inputs / 96 Outputs)
- DB-25/D-SUB Tascam Standard Pinout Format Connectors
- 32 Assignable Independent Channels of 48V Phantom Power
- Front Panel - 2 Combo TRS/XLR Input & 2 XLR Output
- PATCH APP Routing Software (OSX & Windows) (iOS iPad Coming Soon)
- Create, Store & Recall Routings in Seconds
- Create Complex Multing Combinations w/ No Impedance Issues
- No AD/DA Conversion, 100% Transparent Analog Signal Path
- Remote Sleep/Wake Mode Control of PXT Hardware
- Patented Flock Audio Matrix Technology
- Multiple Unit Expansion with any PATCH Model (PATCH, LT & XT)
- Internal Power Supply w/ IEC Cable Included
- 6 Ft. - USB 2.0 (USB-A to USB-B) Threaded Securement - Cable Included
- CAT5 Network (Optional Control) Capability (Cable Not Included)
- Unit Dimensions: 3U - 5.25”(H) x 19” (L) x 13” (D) - 35 lbs
- Optional Rear mount Cable Hanger Accessory (Product Code: XTH)
 Flock Audio Patch XT 192 96x96 Rear
