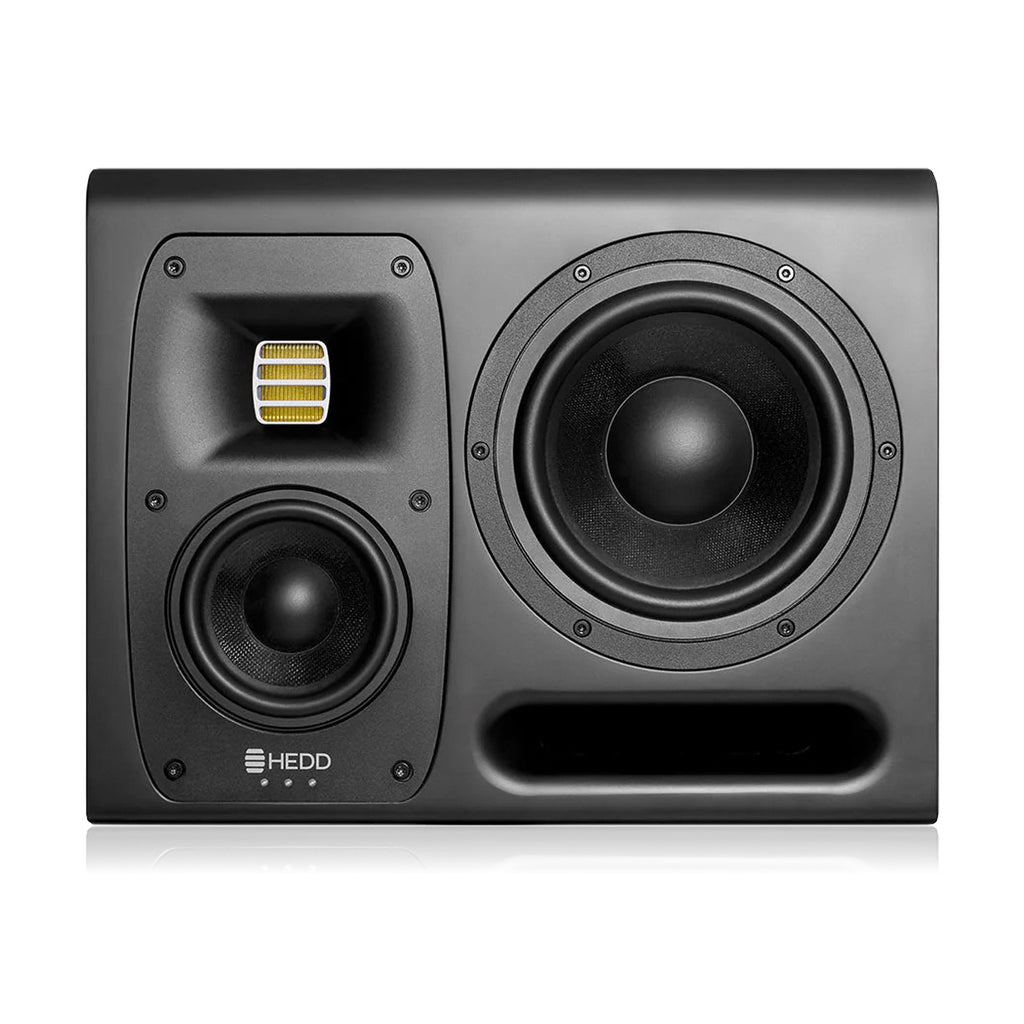

HEDD Audio Type 20 MK2 3-way Studio Monitor Black Right

The TYPE 20 is a perfect all-rounder monitor designed as the ideal partner for studio professionals who need to work on a variety of audio tasks.

Thanks to the HEDD Air Motion Transformer driver, Closed or Ported mode, and DSP-enabled functionalities it delivers honest midrange clarity and plentiful low end performance.

The TYPE 20 is equally well-suited to bass-hungry beats, jazz recordings, soundtrack work, or Atmos mixing.

• 7” honeycomb woofer
• Dedicated 4” midrange driver
• 3 x 300W ICEpower class D amps
• High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies
• High-end, 32bit SHARC DSP lets you tune the speaker to your needs
• CTRL software for advanced system management
• HEDD Lineariser, a zero-phase filter to create fascinating stereo image and depth
• Closed or Ported functionality gives you the best of two monitoring systems: accurate and detailed (closed) or energetic and bassy (ported)
• Desktop filter helps you remove reflections from nearby studio furniture
• Hi and Low shelving filters to tune output to your preference
• Bass-extension mode to increase bottom-end by up to 20%
• Complete, linear phase Satellite-Subwoofer setup with BASS 08 subwoofers
• Aluminum pot controls
• Analog XLR and Digital AES connections (supports AES/EBU with daisy-chaining)
• Assembled in Berlin with premium components
• Each unit is tested before shipping
• Mounting gear available separately, ideal for Atmos installations
• Ongoing feature support via the HEDD Access tool (downloadable separately)
• 5 year warranty after registration

• Main Features: HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
• Dimensions: 280 x 358 x 338 mm
• Weight: 15.4 kg per unit
• DSP Integration: Custom high-resolution 96 kHz / 32 Bit AD / DA converter
• Drivers: 3-Way: Proprietary 7" and 4" Honeycomb Woofers, HEDD AMT Tweeter
• Power: 3x300 W ICEpower amplification (85-264 V)
• Crossovers: 250 Hz / 3.200 Hz
• Frequency Range: 32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
• Maximum SPL: SPL 120 dB SPL (sound pressure level) per pair at 1m
• Inputs: Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
• Output: Digital AES pass-through via XLR
