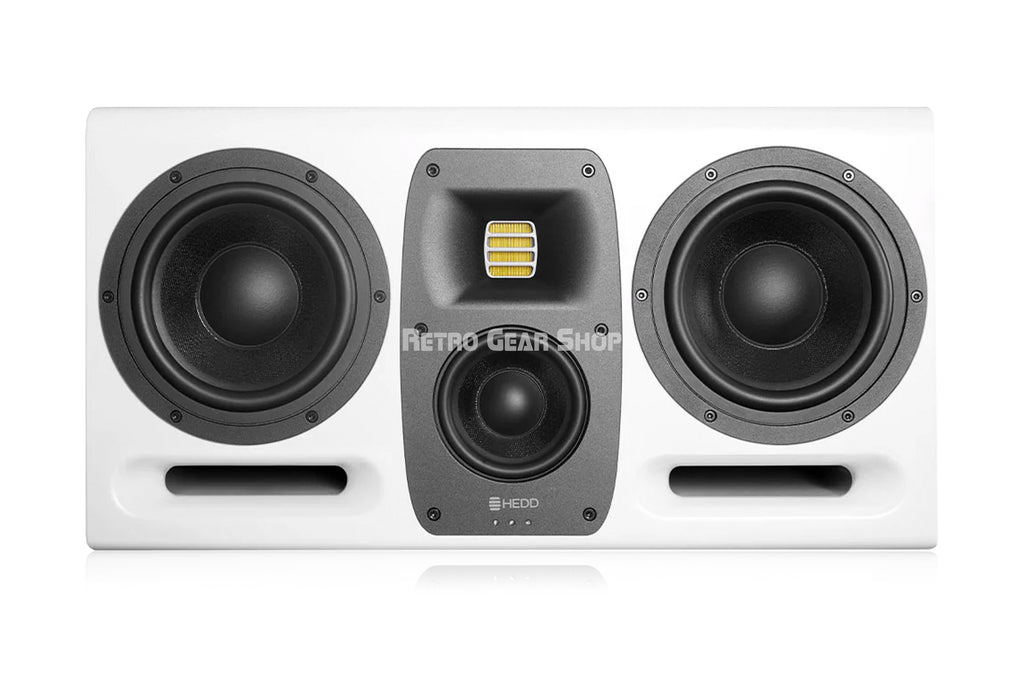

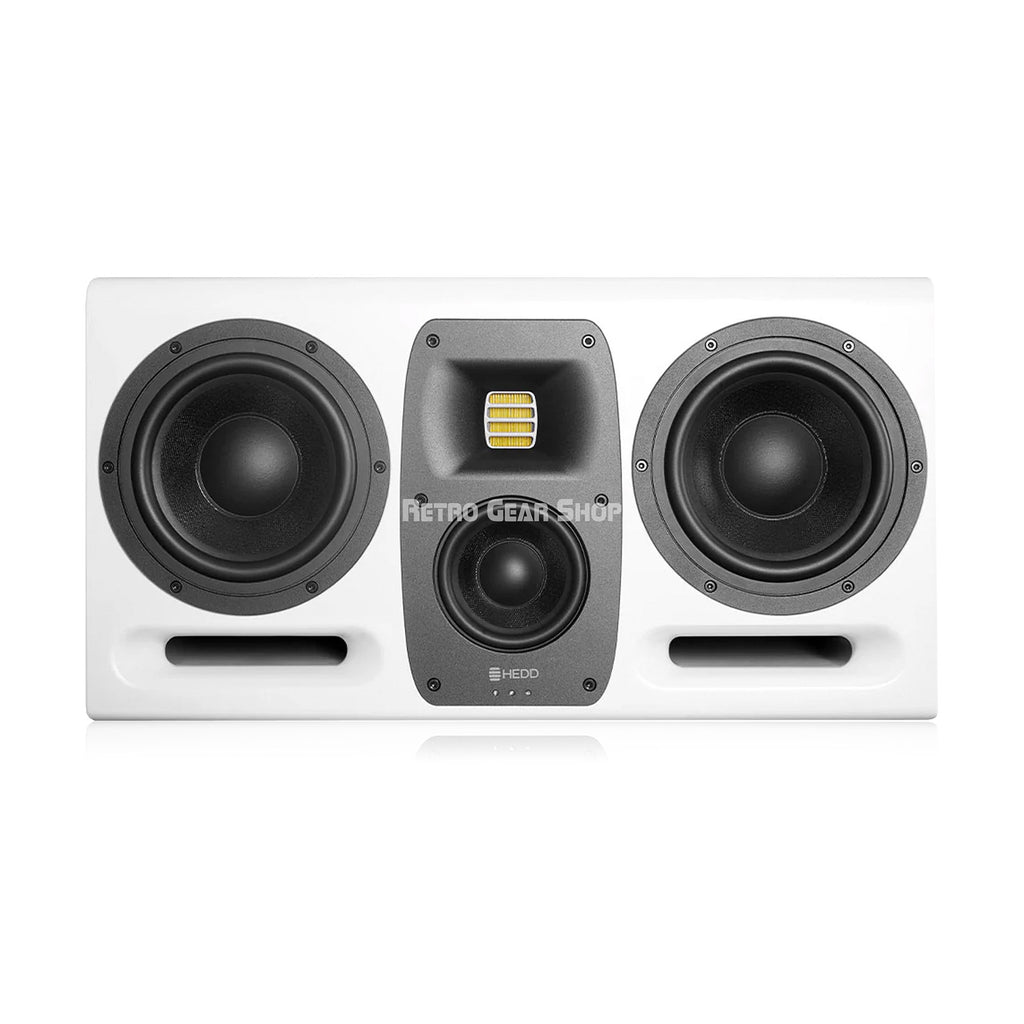

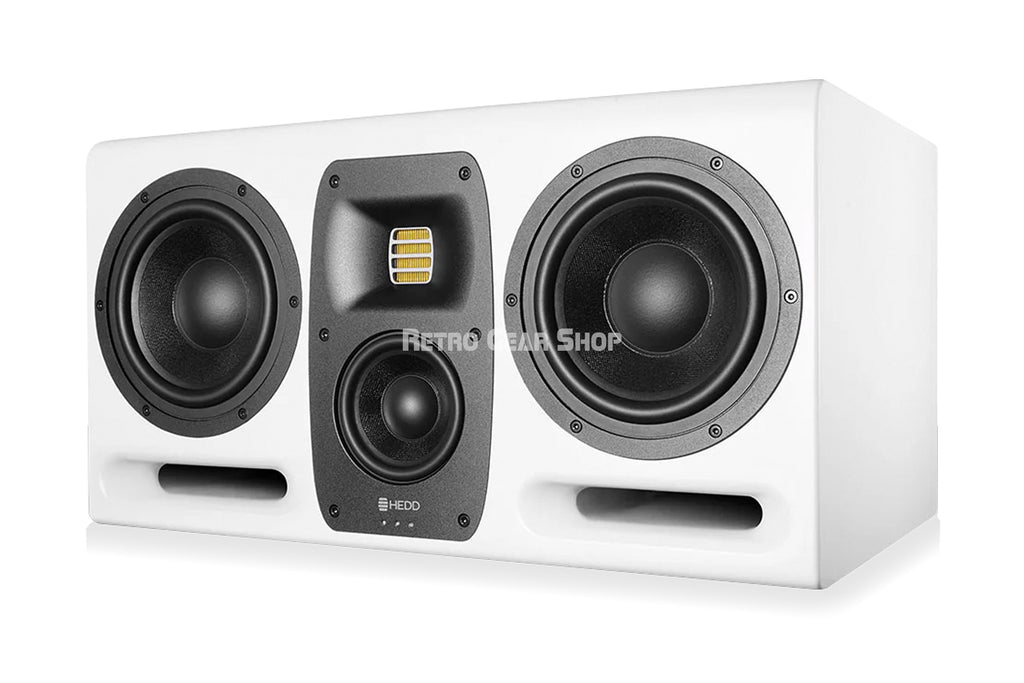

The TYPE 30 is our monitoring solution for mid to large recording and mastering studios who need power, flexibility, and dynamics to get the job done and impress customers.
The strictly symmetrical layout calms the sound stage and allows you to identify and shape even the smallest signals within a track or larger immersive setup while still remaining fun to use and experience.
• 2 x 7" honeycomb woofers
• Dedicated 4" midrange driver
• 3 x 300W ICEpower class D amps
• High-definition Air Motion Transformer driver for clear, accurate upper mid and high frequencies
• High-end, 32bit SHARC DSP lets you tune the speaker to your needs
• CTRL software for advanced system management
• HEDD Lineariser, a zero-phase filter to create fascinating stereo image and depth
• Closed or Ported functionality gives you the best of two monitoring systems: accurate and detailed (closed) or energetic and bassy (ported)
• Desktop filter helps you remove reflections from nearby studio furniture
• Hi and Low shelving filters to tune output to your preference
• Bass-extension mode to increase bottom-end by up to 20%
• Complete, linear phase Satellite-Subwoofer setup with BASS 08 subwoofers
• Aluminum pot controls
• Analog XLR and Digital AES connections (supports AES/EBU with daisy-chaining)
• Assembled in Berlin with premium components
• Each unit is tested before shipping
• Mounting gear available separately, ideal for Atmos installations
• Ongoing feature support via the HEDD Access tool (downloadable separately)
• 5 year warranty after registration
• Main Features: HEDD Lineariser®, CoP, GDC, LFE, Desk and Shelf Filters
• DSP Integration: Custom high-resolution 96 kHz / 32 Bit AD / DA converter
• Drivers: 3-Way: Proprietary 7'' and 4'' Honeycomb Woofers, HEDD AMT Tweeter
• Power: 3x300 W ICEpower Amplifiers (85-264 V)
• Crossovers: 250 Hz / 3.200 Hz
• Frequency Range: 32 Hz - 40 kHz (LFE: 26 Hz - 40 kHz)
• Maximum SPL: 125 dB SPL (sound pressure level) per pair at 1m
• Inputs: Analog (XLR / 22 kΩ) and Digital 2ch (AES / XLR)
• Output: Digital AES pass-through via XLR
• Dimensions: 280 x 530 x 338 mm
• Weight: 21.5 kg per unit
