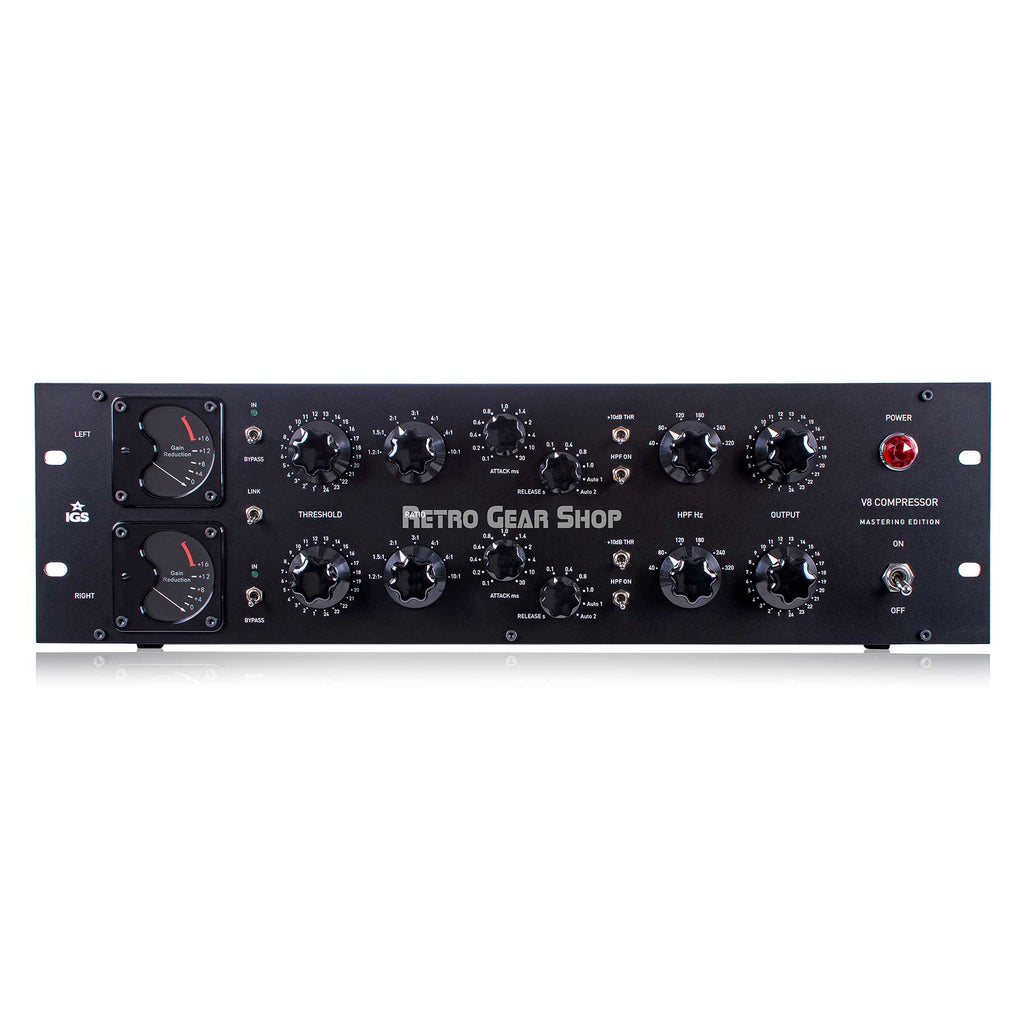

The V8 compressor is built only with discrete components and six IGS Customs transformers (three per channel). The element responsible for the compression is the bridge, composed of 4 matched pulse diodes. A device is a dual-mono unit with the option of linking the sidechain circuitry. All controls are stepped, for channel matching and recall.
The V8 compressor is also equipped with a HPF on the sidechain circuitry. This feature allows you to cut the lowest frequencies from the signal, before they hit the compressor stage, and allow a single instrument, such as the kick drum, to go through without the pumping effect. An additional switch on the front (+10THR) lowers the compressor’s threshold level by an extra 10dB. This feature is useful when compressing very low signals, or for very strong compression. The typical application for IGS V8 is bus compression. However, due to its nature and the incredible range of tone and color settings, uses of the V8 compressor are unlimited.
• All stepped manipulators: Yes, Elma switches
• Sidechain HPF: OFF, 40, 80, 120, 180, 240, 320 Hz
• Stereo Link: Yes
INPUT & OUTPUT
• Audio transformers: Input, Interstage and Output. (3 transformers per channel)
• Input Impedance (balanced): 10k Ohm, IGS Custom transformer
• Output Impedance (balanced): 600 Ohm, IGS Custom transformer
LEVELS
• Operating Level: +4 dBu
• Max input level: > +22 dBu
• Max output level: > +26 dBu
• Dynamic Range: 101 dBA (@ 1 kHz, +24 dBu)
• Max Gain Reduction: 30 dB
• Max. gain: 22 dB
TIME CONSTANTS
• Attack: 0.1 ms – 30 ms
• Release: 0.1 s to 1.4 s + Auto
BANDWIDTH
• Frequency response: 10 Hz to 25 kHz (+0.2 dB / -0.4 dB)
DISTORTION (@ 20 HZ - 20 KHZ)
• Signal to Noise Ratio: 87 dBA (@ 20 Hz - 20 kHz)
• THD+N: 0.056 % (@ 20 Hz - 20 kHz)
• IMD (SMPTE): 0.16 % (@ 20 Hz - 20 kHz)
• Crosstalk: 91 dB (@ 20 Hz - 20 kHz)

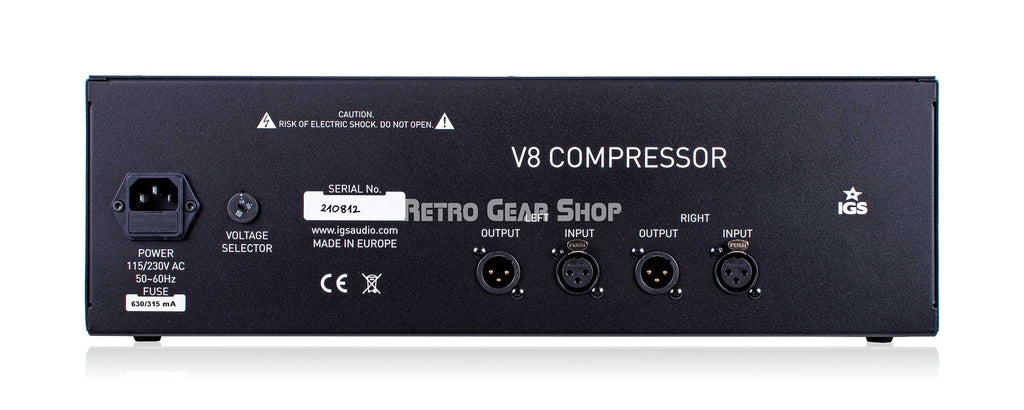

POWER
• Voltage: 115/230V AC, 50-60 Hz
• Power consumption: 24 W
• Power supply: Internal

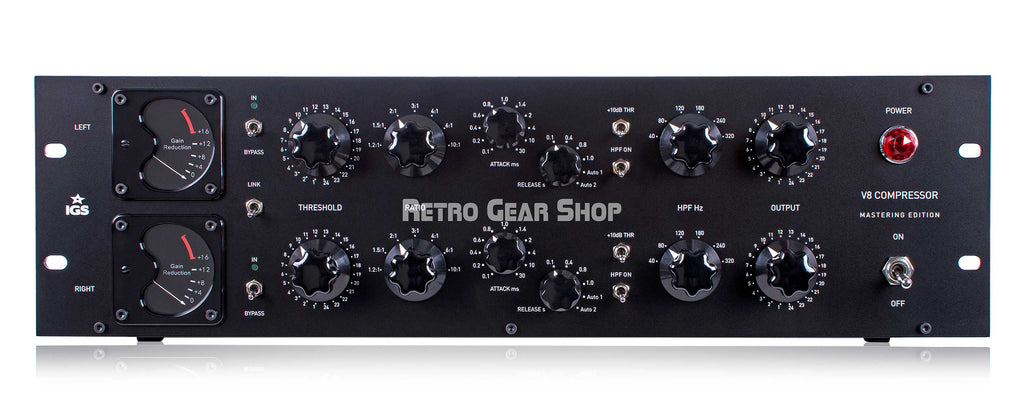

FRONT PANEL
• VU Meters: Yes, Analog IGS Custom scales
