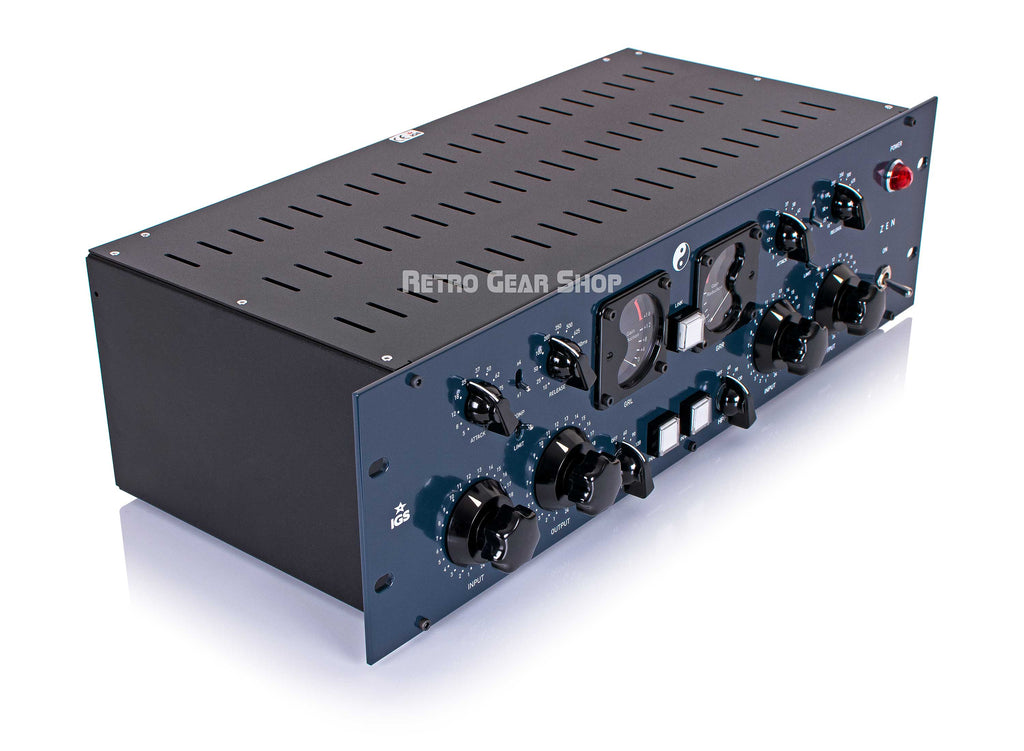

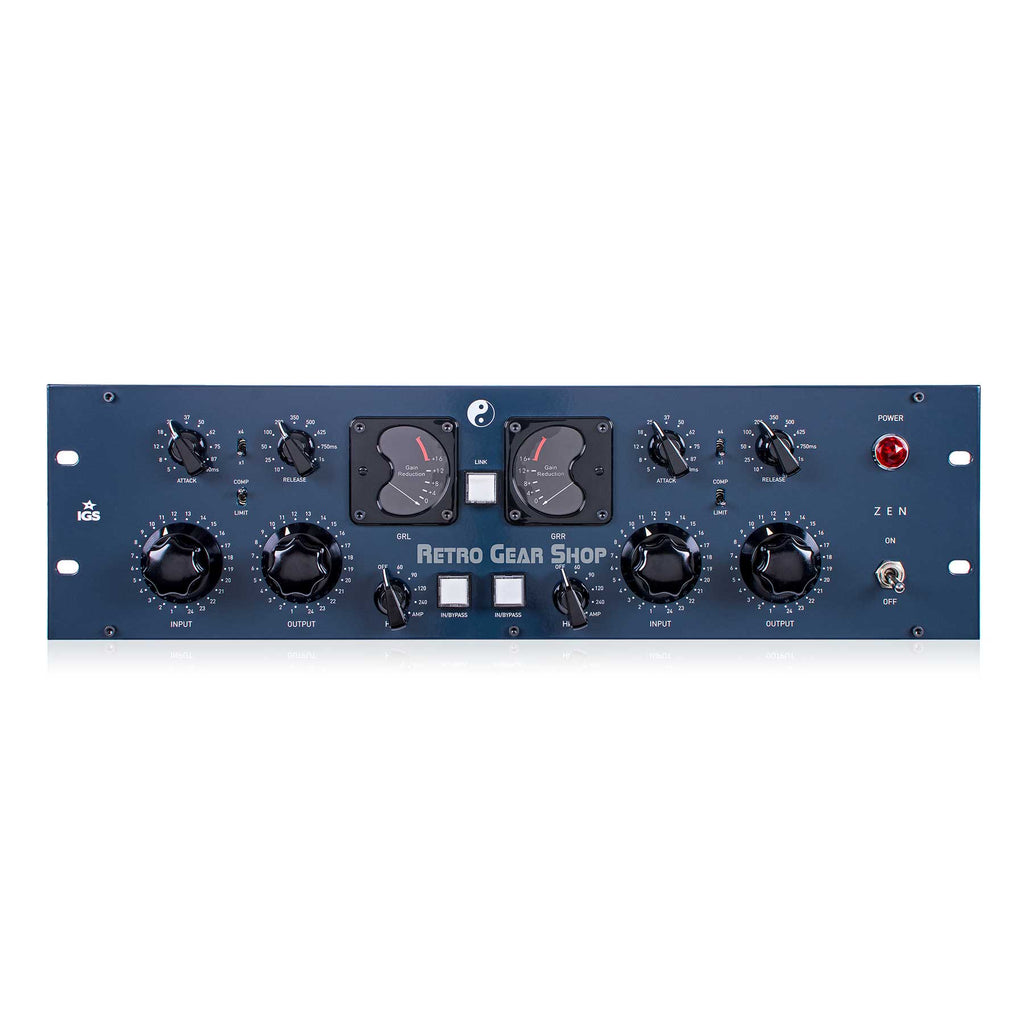

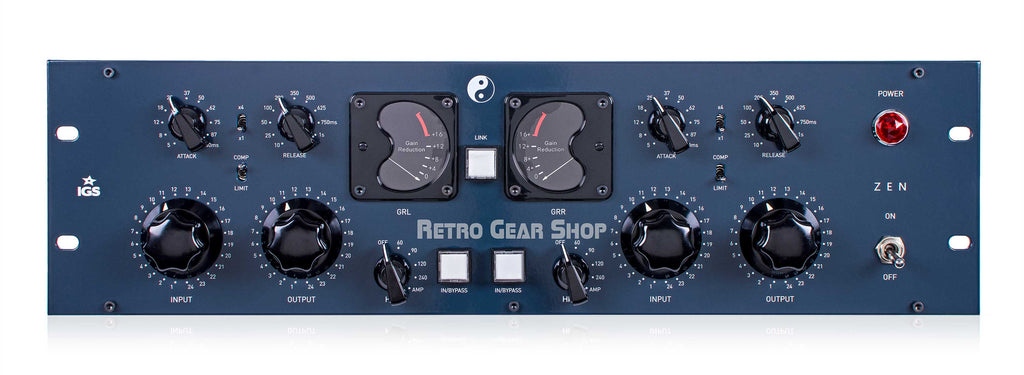

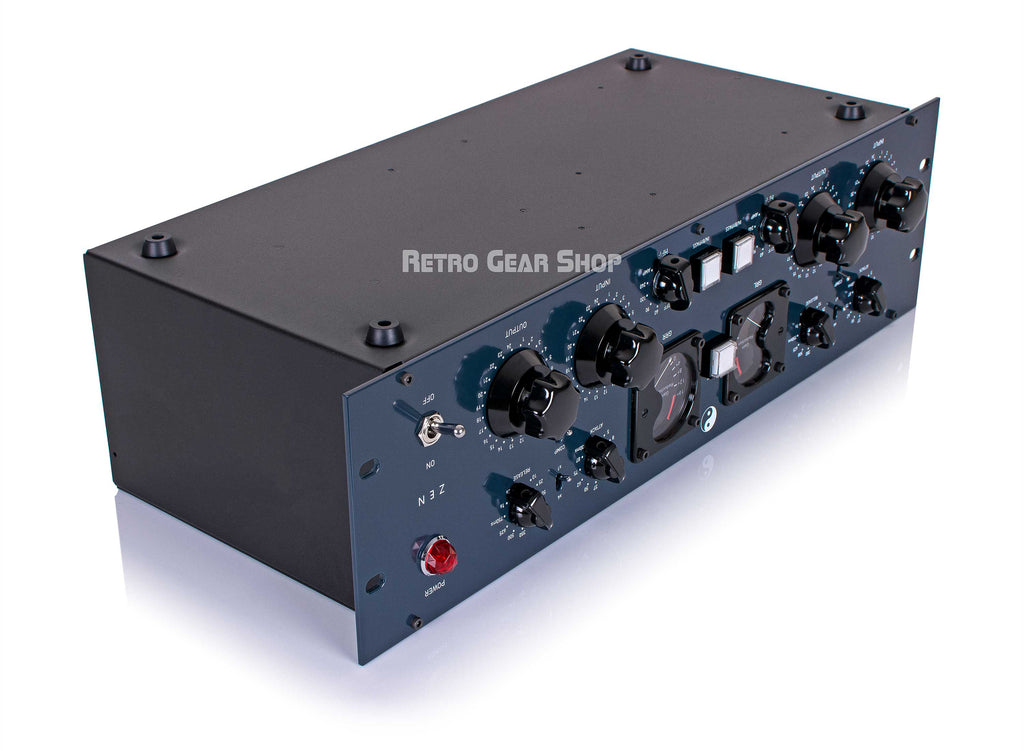

The ZEN is unique. The construction is based on the legendary compressors used in Abbey Road Studios. It’s the musical canon of art used by The Beatles. The ZEN Compressor audio circuit is based on 14 bi-polar transistors in each channel. The compression is achieved by 8 hand-matched Zener diodes biased by a perfect feedback circuit.
• All stepped manipulators: 24 pole Elma switches
• MID/SIDE Processing: OpAmp M-S encode/decode
• Sidechain HPF: 120Hz, 60Hz, Off
• Stereo Link: Yes
• WET/DRY Mixer: 0 - 100%, 4 dB step

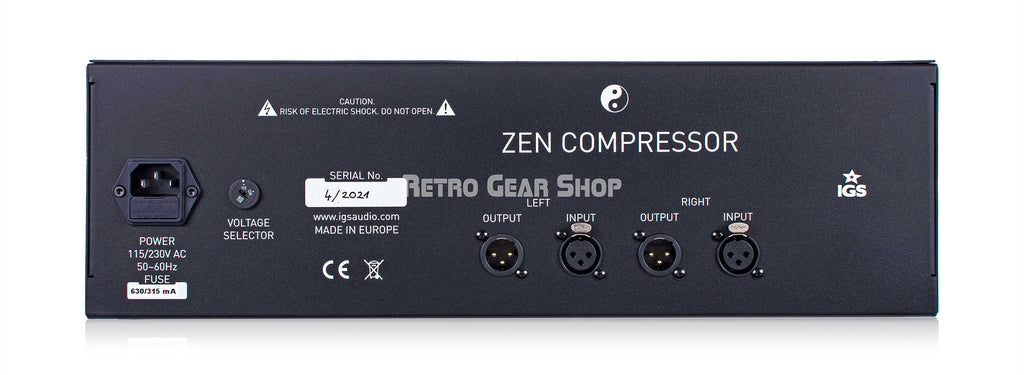

INPUT & OUTPUT
• Input Impedance (balanced): XLR, 10k Ohm, IGS Custom Transformers
• Output Impedance (balanced): XLR, 600 Ohm, IGS Custom Transformers
LEVELS
• Operating Level: +4dBu
• Max input level: +22 dBu
• Max output level: +26 dBu
• Dynamic Range: >107 dBA (@ 1kHz, +24 dBu)
• Max Gain Reduction: 20 dB
• Max. gain: +35dB
TIME CONSTANTS
• Attack: 0.1 - 30 ms
• Release: 0.1 - 4s BANDWIDTH
• Frequency response: 20Hz to 20kHz; +/- 0.2dB
DISTORTION (@ 20 HZ - 20 KHZ)
• Signal to Noise Ratio: 95 dBA @ +4dBu, 1kHz
• THD: 0.12 %
• THD+N: 0.15 %
• IMD (SMPTE): 0.32%
• Crosstalk: 82 dB POWER
• Voltage: 115/230V AC, 50-60Hz
• Power consumption: 44 Watts
• Power supply: External
OTHERS
• Tube set: Standard: 6N1P-EW or 6N3P-EW, Optional: 6BC8, 5670, 6386
