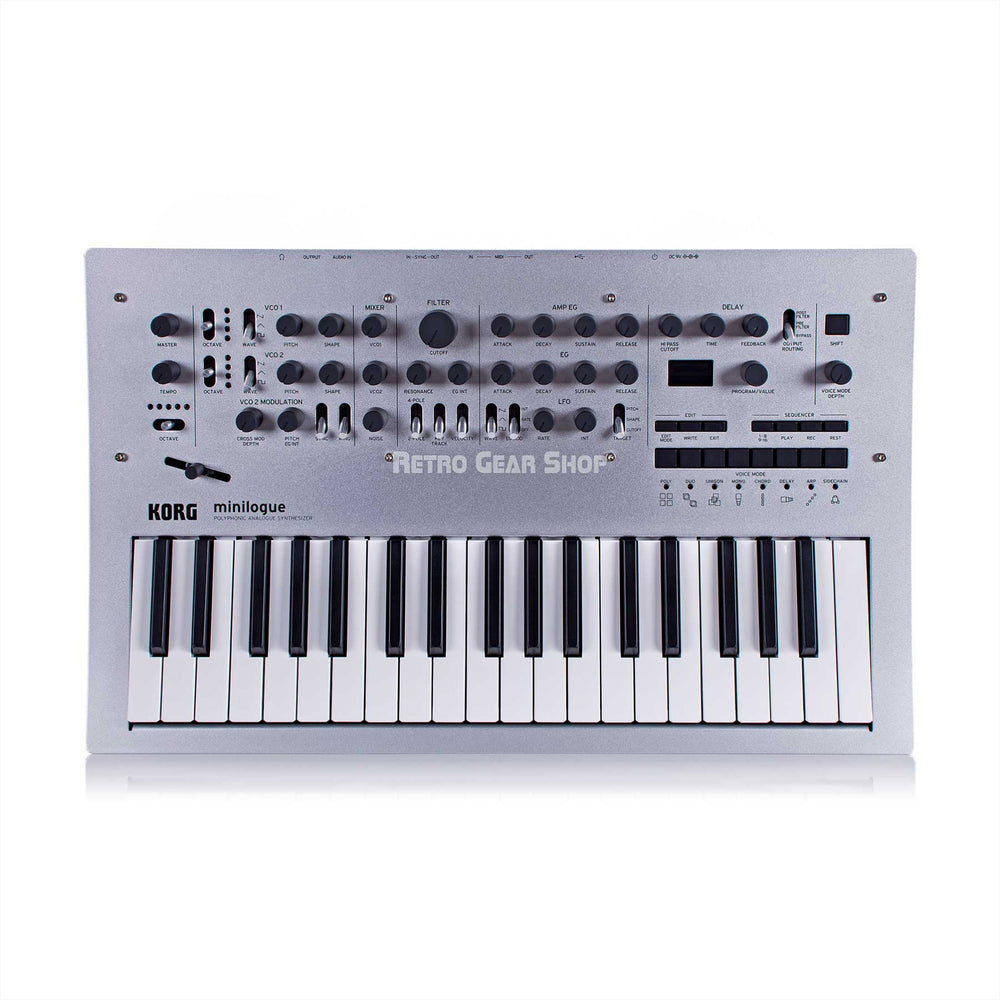

Korg Minilogue 4 Voice Analog Polyphonic Synthesizer
Korg Minilogue Top
Korg Minilogue Rear
Korg Minilogue Rear

Korg Minilogue

Regular price $599.99

HomeSynthesizersKorg

Korg Minilogue Synthesizer

Minilogue’s newly developed analog synthesizer circuit delivers polyphony and full programmability at a great price --- exactly what today's musician needs. With the Minilogue, you can get your hands on the powerful sound that's only possible with real analog, and find inspiration with features including a polyphonic step and motion sequencer, on board tape-style delay, multiple sound shaping and filter options, and an oscilloscope display. All of these seamlessly integrated features make Minilogue as fun and easy to use as it is powerful. It's the next-generation analog synthesizer for musicians of all types.

Retro Gear Shop is an Authorized Korg Dealer.
Includes full Warranty.
Free USA shipping with Fedex Ground

Any questions, please ask!
    •    Flexible, powerful four-voice analog synthesizer
    •    Fully programmable, with 200 program memories (100 sounds included)
    •    Voice Mode lets you flexibly configure the four voices
    •    Automatable 16-step polyphonic note and motion sequencer
    •    Oscilloscope function shows the waveform visually
    •    Rugged and stylish with aluminum top panel, chassis-mounted pots, rubber-coated knobs, and real wood back panel
    •    MIDI, USB MIDI, and Audio Sync for all types of in-studio and live connectivity, including direct sync with SQ1, volca, electribe, and more

The synth circuits for Minilogue are all new ground up designs, delivering a synthesizer experience like no other. Unprecedented in this class, it’s a four-voice polyphonic true-analog synth with an interface that's designed for accessibility. Whether you're performing live or producing in the studio, the Minilogue is the fastest way for the user to explore and implement real analog synthesis in any situation.

The structure consists of 2VCO, 1VCF, 2EG, 1VCA, and 1LFO. The Minilogue's unique wave shape capability lets you fine tune the oscillators’ harmonics, creating the most divine sounds and compositions. The Minilogue is also equipped with a variety of powerful types of modulation including cross modulation, oscillator sync, and ring modulator, as well as a delay with a high-pass filter. Powerful sound creation and rich variety are the true hallmarks of an analog synthesizer.
Polyphony and Presets – Perfect.

Minilogue goes beyond analog synths in its price range by adding 200 preset locations. Select a program for instant access to great sounds - - ranging from thick basses to deep pads to brilliant polyphonic leads and atmospheric sounds. No need to have deep synthesis knowledge; just choose a sound and tweak - a workflow that is very familiar with musicians today. For those who want to dive deeper into the heart and soul of Minilogue’s engine, the Minilogue hold 200 programs; with 100 editable factory programs included, and 100 locations serving as blank canvases on which to create your next analog masterpiece. Each preset can also hold a step sequence and delay settings along with the sounds you create.
In addition, the Sound Librarian lets you manage your program data.
More information about the Minilogue Sound Librarian
Voice modes.

Selectable voice modes let you freely configure the four voices for performance. The voices can be set to four note polyphony for chords or layered for thick basses and leads. Other modes cover a range of sounds from octave shifted bass explosions to delicately staggered layered triggering.


Eight voice modes

- POLY - operates as a four-voice polyphonic synthesizer

- DUO - operates as a unison two-voice polyphonic synthesizer

- UNISON - operates as an all-unison mono synthesizer

- MONO - operates as a mono synth with sub-oscillator

- CHORD - produces chords

- DELAY - voices 2--4 sound consecutively at a delay following voice 1

- ARP - an arpeggiator operates with up to four voices

- SIDE CHAIN - when a note sounds, the volume of the preceding voice is lowered
Keyboard - 37-keys (Slim-key, velocity sensitive)
Sound Generation - Analog synthesis
Maximum Polyphony - 4 voices
Program - 200 programs (100 Presets / 100 Users)
Each program includes voice mode and sequence data settings
Up to eight favorite programs can be registered
Voice Modes
8 modes (Poly, Duo, Unison, Mono, Chord, Delay, Arp, Side Chain)
VOICE MODE DEPTH can vary different parameters in each mode

Main Synthesis Parameter
VCO1 - Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2  - Octave, Wave (Saw, Triangle, Square), Pitch, Shape
VCO2 MODULATION  - Cross Mod Depth, Pitch EG Int, Sync, Ring
MIXER  - VCO1, VCO2, Noise
FILTER  - Cutoff, Resonance, EG Int, Filter Type (2-Pole, 4-Pole), Keytrack, Velocity
AMP EG  - Attack, Decay, Sustain, Release
EG  - Attack, Decay, Sustain, Release
LFO  - Wave (Saw, Triangle, Square), EG Mod (Int, Rate, Off), Rate, Int, Target (Pitch, Shape, Cutoff)
DELAY  - Hi Pass Cutoff, Time, Feedback, Output Routing (Post Filter, Pre Filter, Bypass)

Sequencer
16-step polyphonic sequencer
Motion sequence can be used on up to four parameters

Controls
41 dedicated panel controls deliver immediate parameter access
A slider can control different parameters for each program

Display
Real-time OLED oscilloscope provides visual feedback of parameter changes

Connectors
Headphones (6.3mm stereo phone jack)
Output (6.3mm monaural phone jack)
Audio In (6.3mm monaural phone jack)
Sync In (3.5mm monaural mini jack)
Sync Out (3.5mm monaural mini jack)
MIDI In
MIDI Out
USB Type B

Power Supply - AC adapter (DC9V)
Power Consumption - 8 W
Dimensions (W x D x H)
500 x 300 x 85 mm / 19.69" x 11.81" x 3.35"
Weight - 2.8 kg / 6.17 lbs.
Included Items - AC adapter
