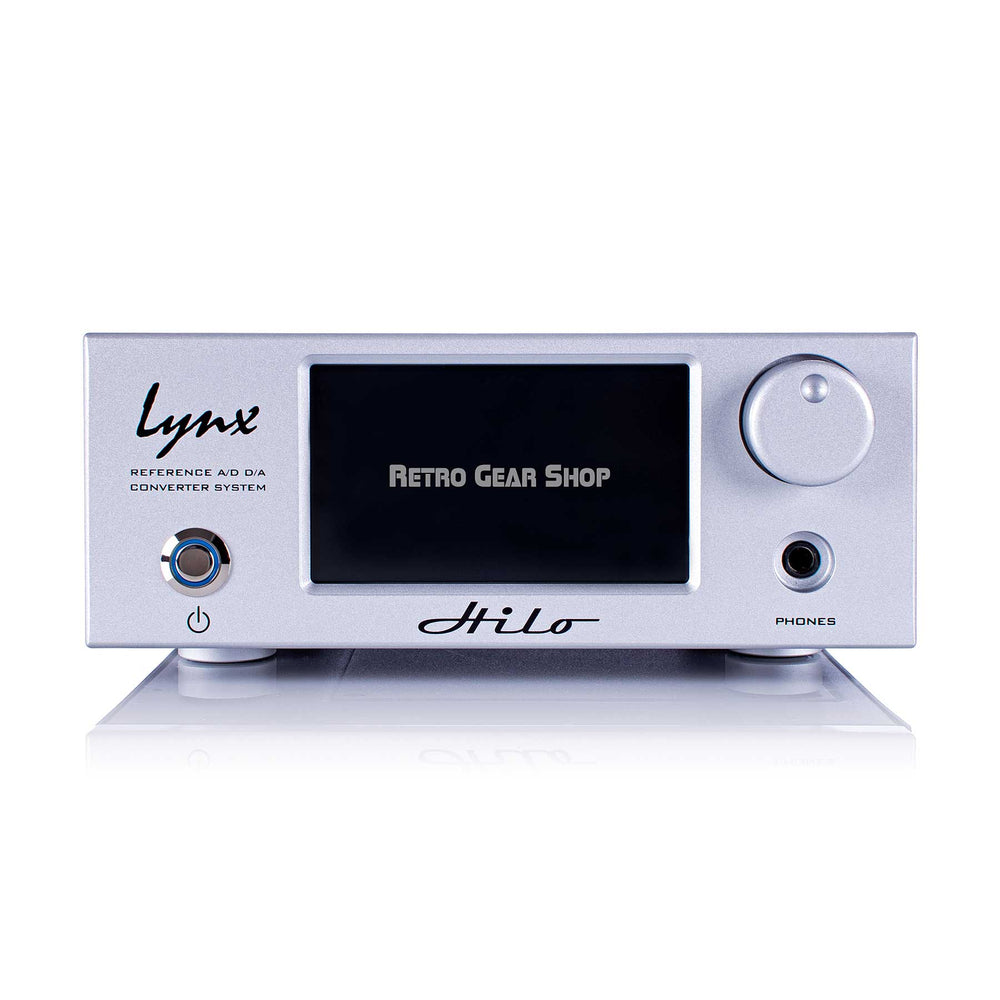

Lynx Hilo LT-USB Silver

Regular price $2,295

HomeOutboard/RecordingConvertersLynx

Lynx Studio Technology Hilo Reference AD/DA Converter LT-USB Silver

-Pristine, independently coupled 2in, 6out, AD/DA conversion with digital expansion up to 32x32.
-Unique touchscreen interface.
-Forever upgradable through our free firmware updates.
-Future-proof LSlot design with swappable USB, Thunderbolt and DANTE cards.
-Real-time meters and analysis tools, hyper-flexible routing and monitor control.
-Powered by mains or 9-18v DC battery packs for location recording.
-Lynx’s class-leading transparent audio quality.

Also available in black.

Retro Gear Shop is an Authorized dealer for Lynx Studio Technology products.

Brand New with full Warranty.

Free shipping in the USA with UPS Ground
Flat rate discounted shipping worldwide

Any questions, contact us!
Hilo represents the zenith of Analog conversion, improving on Lynx’s famous Aurora converters with state-of-the-art components and design techniques. The innovative design of the analog stage and converter topology allow ultra-low noise and distortion specifications, producing an unprecedented level of clarity and depth-of-image. Much more than a “me too” stereo converter, Hilo actually features three unique sets of analog outputs, each with their own Digital-to-Analog converters, and independent routing. Main Outs, Monitor Outs and Headphone Outs all can feature a unique combination of sources with independent level controls.

Metering
Hilo displays real-time, accurate metering and analysis. Dual horizontal, VU analog, all I/O and spectrum analysis cover all tasks.

Routing
Route anything, anywhere. Set independent input levels, channel modes and mute states for each output. Then set unique level offsets for each output. Truly flexible.

Monitoring
One-to-one monitoring. Independently level-match your 4x4 selected sources, then globally control with the master-volume.

Scenes
Device-wide settings recall. Save custom scenes for different tasks and switch through them in a click.

Settings
No need for extra computer software, change any setting directly on Hilo, such as sample rate, clock source or trims.

Connected apps
With Hilo, you get free connected applications. Hilo Remote for iPad and desktop offer you full control with extended features.

LSlot connectivity options
We don’t restrict how you choose to connect your devices. With LSlot, you can change your connection whenever you need. We have you covered now, and in the future when new standards are made available.

Analog Performance

Line in L/R
THD+N: -114dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.01dB, 20–20kHz
Crosstalk: -140dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Female XLR connectors

Line out L/R
THD+N: -109dB @1kHz, -1dBFS, 20kHz filter, +22dBu trim
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20–20kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Full-scale trim settings: +0dBV, +2dBV, +4dBV, +6dBV, +18dBu, +20dBu, +22dBu, +24dBu
Male XLR connectors

Monitor out L/R
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A- weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -135dB maximum @ 1kHz, -1dBFS signal
Output level at max: +24dBu or +10dBu, jumper selectable
1/4" TRS connectors

Headphone out
THD+N: -107dB @1kHz, -1dBFS, 20kHz filter, volume at max
Dynamic range: 121dB, A-weighted, -60dBFS signal method
Frequency response: ±0.02dB, 20-20kHz
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
Output level at max: +19dBu
1/4” headphone jack

Digital Performance

AES/EBU:transformer-coupled on XLR connectors
S/PDIF I/O coax:transformer-coupled on RCA jacks
S/PDIF I/O optical:on optical connectors
ADAT I/O:8 channels at 48 kHz when selected on optical connectors

Sample Rates
All standard rates up to 192 kHz using SynchcroLock sample clock generator

Synchronization Sources
Internal
External word clock I/O: 75ohm TTL signal on BNC connectors AES/EBU or S/PDIF inputs

Computer Connectivity
Windows 32-bit and 64-bit drivers provided by Lynx
Macintosh OS X drivers provided by Apple

LSlot™ Expansion Port
Supports Lynx LSlot expansion cards with up to 32 input and outputs simultaneously

LCD Display
480 x 272 LCD Touch Screen
