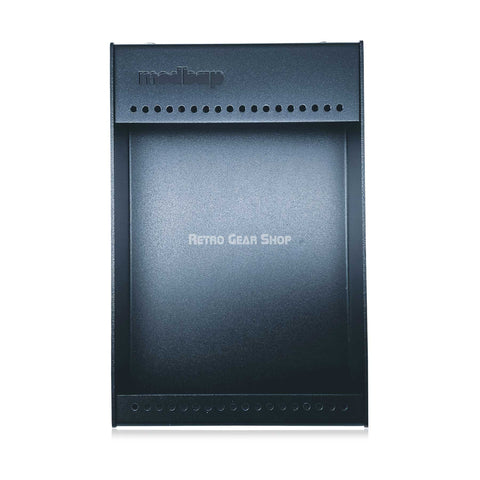

Modbap 20 Eurorack Powered Case
Modbap 20 Eurorack Powered Case Front
Modbap 20 Eurorack Powered Case Angle
Modbap 20 Eurorack Powered Case Top Angle
Modbap 20 Eurorack Powered Case
Modbap 20 Eurorack Powered Case Angle

Modbap 20 Eurorack Powered Case

Regular price $200


UDO Audio Super 6 Desktop Synthesizer Used

Mint condition. In stock ready to ship.

The Super 6 Desktop is a fully-featured Super 6 analog-hybrid 12 voice synthesizer, housed in an all-metal chassis. The Super 6 Desktop also includes ergonomic features such as VESA mount compliance, optional rack ears (7U) and robust flip up feet, as well as a huge 24-voice Super 6 polychain option (in a future update).

Retro Gear Shop is an Authorized UDO Audio Dealer.

Free shipping in the USA.
Flat rate discounted international shipping.
Binaural analog signal path
In Binaural mode, the Super 6 features a true stereo signal path in which the instrument’s twelve voices are twinned to form six stereo ‘super’ voices. Consequently, the left and right channels — and each of the player’s ears — are assigned their own complete synthesizer voice. Parameters for both channels of each super voice may be independently controlled, facilitating the player to create rich and unique stereo images. The effect ranges from subtle to extreme stereo movement, creating an enhanced sense of spatial positioning relative to “conventional” monaural signal-chains panned at their output.

Massive modulation without menus
Enormous flexibility at the player's fingertips through simple controls and a carefully designed front-panel. Going deeper, there is an intuitive and immediate modulation system based around the performance area switches. For those who want to go further, every panel control can be targeted for modulation, all simultaneously and all with unique amounts.

Analog voice architecture
The Super 6’s main filter is an analog 4-pole, 24 dB per octave, resonant low-pass filter using a classic polysynth filter design from Sound Semiconductor (SSI).
It is preceded in the signal chain by a voltage controlled high-pass filter that can either be off, fixed, or can also track the low-pass filter cutoff frequency for band-pass operation. The Super 6 also contains an analog amplifier section that can further be used to shape the sound by adjusting and modulating the amplitude or loudness over time.

• FPGA-based Super-wave oscillator core sampled at 50MHz with a centroid oscillator and six sister oscillators that can be dynamically de-phased in the stereo field
• Waveshapes: sine, sawtooth, square, triangle, noise and 16 user- downloadable alternative waveforms
Alternative DDS 1 waveform format:
• Normalized, single-cycle waveform with 4096 points • 16-bit signed integer format samples
• Bandlimited at sampling frequency/8 (Nyquist/4).
If 4096 Hz is your sampling frequency, then 512 Hz is the
upper limit of your passband.
• Binary file with no header data and file extension .ws6

• FPGA-based algorithmic oscillator core sampled at 50MHz
• Waveshapes: sine, sawtooth, square, triangle, noise, pulse
• Can be hard-synced to DDS 1
• LFO mode
• Sub oscillator mode (can be activated when in LFO mode)
• Pulse waveform with variable pulse width and PWM

• LFO and envelope modulation of DDS 1 & DDS 2 pitch
• Selectable 1⁄2 Super or full Super mode for DDS 1
• Sister oscillator detune spread control for Super waves
• Pulse-width control for pulse waveform
• LFO and/or ENV 1 can modulate the sister oscillator
detune spread for the Super waves and the pulse-width for the standard waves
• DDS 2 to DDS 1 cross-modulation for deep FM Sounds

• Stereo audio input that feeds through the VCA, VCF and effects section
• Gate triggering of envelopes and LFO 1 based on audio input level with
a variable-gain input stage

• Main LFO with low and high-frequency modes, rate adjustable from 0.05 Hz to 20 kHz
• Left-right phase control for stereo effects, harnessing the binaural sound engine
• Can be free-running or reset on note press
• One-shot mode allows LFO 1 to act as an additional envelope
• Keyboard tracking mode for high-frequency LFO (useful for FM sounds)
• LFO 1 can be mapped through the DDS 1 or DDS 2 audio path in either
fixed or tracking high-frequency modes for use as a drone or a
third oscillator
• Can be synchronized with the sequencer and arpeggiator as well
as an external clock

• Adjusts the mix-level of DDS 1 and DDS 2 audio signals
• When in X-Fade mode, adjusts split point on the keyboard of
crossfaded DDS 1 and DDS 2 (or audio input) signals

• The SSI2144 reprises the SSM2044 of legacy chipmaker Solid State Micro Technology, which many believe to be the best-sounding analog synthesis filter IC ever produced. Based on Dave Rossum’s patented classic improved ladder topology, the SSI2144 allows rich tonal characteristics that showcase the very best attributes of subtractive synthesis.
• Analogue 4-pole low pass self-resonant filter
• Two levels of overdrive
• High pass filter with fixed frequency or linked to low pass filter for a
bandpass response
• Selectable keyboard tracking modes with filter autotune for accurate
keyboard tracking
• Modulation by ENV 1 and/or ENV 2, LFO 1 and DDS 2

• Analogue VCA with selectable fixed or variable envelope (ENV 2) modulation
• LFO 1 modulation
• Dynamics control for selectable velocity sensitivity

• Invertible Hold-Attack-Decay-Sustain-Release, mappable through modulation matrix
• Looping mode with selectable keyboard tracking for use as an LFO or FM source

• Attack-Decay-Sustain-Release, multiple destinations

• 49-key Fatar mechanism with velocity and aftertouch
• Two-axis bender with LFO trigger
• Voice modes: Poly 1, Poly 2, Solo, Legato, variable size and type Unison
• Keyboard-adjacent dedicated controls for bender DDS 1/2 pitch
and VCF cutoff modulation
• LFO 2 with rate and delay controls, selectable triggered and
always-on modes
• Variable portamento
• Expression pedal and sustain pedal inputs
• Playable spring-lever keyboard octave selector
• MPE MIDI compliance with response to note on and off velocity,
polyphonic aftertouch, polyphonic pitch bend and polyphonic expression

• Intuitive modulation matrix with pre-defined destinations and also mapping to a wide range of front panel controls
• LEDs give clear feedback on mappings and modulation depths
• 20x audio-rate modulation computation

• MIDI-syncable, multi-mode arpeggiator with smart-hold
• MIDI-syncable 64-step sequencer with programmable note,
rest, slide, accent and length tracks
• LFO 1 and delay controls can be locked to the
arpeggiator/sequencer clock
• 16 rewritable memory locations for storing sequences

• Dual-mode stereo chorus using 24-bit 192 kHz processing
• Syncable and modulatable stereo delay with 24-bit 192 kHz processing

• 128 rewriteable patch memories with 64 factory patches and 64 empty slots for user patches
• Superior build quality, easy access buttons, sliders, knobs and a menu-free interface

• MIDI in, out and thru on DIN connectors
• USB IO for MIDI and patch, sequence and waveform management
• Audio input for stereo 1⁄4” jack
• Main left and right outputs for unbalanced 1⁄4” jacks
• High-quality stereo headphone power amplifier

• Easy file upload and download of patches, sequences and waveforms via simple USB ‘memory stick’ type interface with no extra drivers or applications required
• Easy OS upgrade over USB
