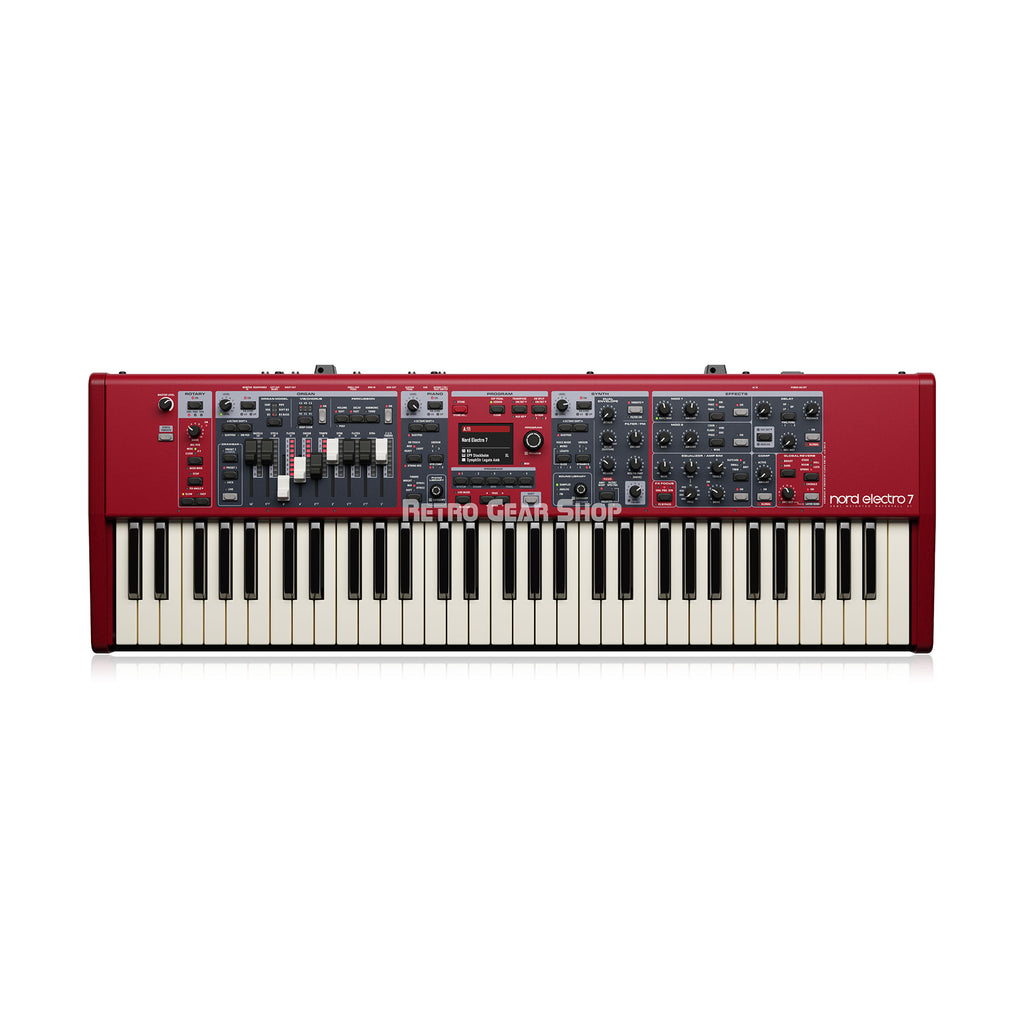

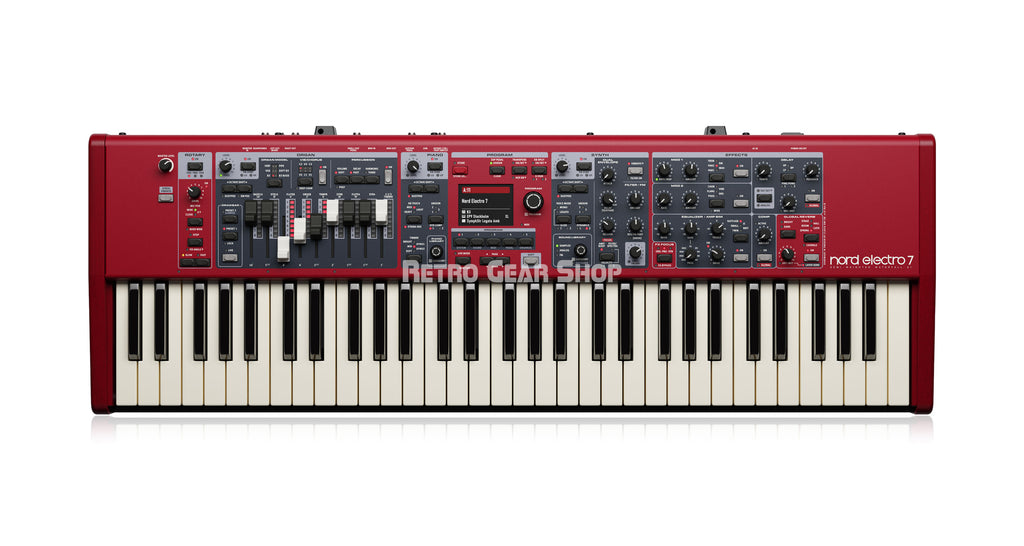

Nord Electro 7 61-Key Stage Keyboard

The Nord Electro 7 elevates the Electro series with a powerful new Synth Section, dedicated per-section effects and a refined panel design with a high-resolution color display. Combining our latest piano features with the Organ and Rotary Speaker from the acclaimed Nord Organ 3, the Nord Electro 7 offers exceptional versatility in a lightweight, stage-ready instrument.

General
• New Panel design and new large color display
• Physical Drawbars on all models
• Pitch Stick and Modulation Wheel on 73 and HP models
• HP model - new 73-key Kawai Triple Sensor Hammer Action keybed
• Expression Pedal Assign, enabling pedal control of Synth Filter and effect parameters

Organ Section
• B3, B3 Bass, Vox, Farfisa, Soft B3 and Pipe organs from Nord Organ 3
• Rotary Speaker emulation from the Nord Organ 3
• 3 mic positions for Rotary Speaker
• Physical Drawbars with LEDs on all models

Piano Section
• Compatible with the Nord Piano Library
• Push Encoder for selecting Category and Sounds
• Dynamic Compression, Unison, Timbre

Effects Section
• Dedicated effects per section
• Rate and Amount for Modulation Effects
• New Spring reverb
• New Amps (Brit and Suitcase)
• Global Reverb with per layer Send

Synth Section
• Samples, Analog waveforms and FM synthesis
• Push Encoder for selecting Category and Sound
• Vibrato with adjustable rate, amount and delay
• Mono, Legato and Glide
• Unison
• Low-pass filter with Resonance control
• FM Partial and FM Amount
• Dual envelope for Amp and Filter/FM
• Compatible with the Nord Sample Library

• Color display
• Organ, Piano and Synth sound sections
• Seamless Transitions
• Split Point Crossfades
• Pitch Stick and Modulation Wheel on 73 and HP models
• 20 banks with 25 programs - 500 locations
• Live Mode: 5 Live programs
• Selectable split point with LED indication (9 locations)
• Organize for programs
• Global Transpose: +/- 6 semitones
• Global Fine-tune: +/- 50 Cents
• Program Transpose: +/- 6 semitones
• MIDI over USB
• 61/73-key semi weighted waterfall keybed
• 73-key Triple sensor Kawai Hammer Action Portable keybed
• External keyboard feature (Aux KB)
• Expression Pedal Assign, enabling pedal control of Synth Filter and many effect parameters

Keybed
• Nord Electro 7 61: 61-key (5 octaves, C-C) Semi Weighted Waterfall keyboard
• Nord Electro 7 73: 73-key (6 octaves, E-E) Semi Weighted Waterfall keyboard
• Nord Electro 7 HP: 73-key (6 octaves, E-E) Triple sensor Kawai Hammer Action Portable keyboard

Organ Section
• B3, B3+Bass, Soft B3, Vox, Farfisa and Pipe model with full polyphony
• B3 Percussion Controls with Poly option
• Vibrato/Chorus with B3 Deep mode
• Adjustable percussion level and percussion decay
• 3 Tonewheel modes: select the level of "vintage" desired
• 2 Organ manual Presets and Live Drawbars
• Physical Drawbars with LED indicators
• Mount for Half-Moon Switch on Electro 7 61/73

Piano Section
• Categories: Grand, Upright, Electric, Digital/Layer, Clav/Harpsichord and Misc/Mallet
• Pianos can be added, replaced and organized using the Nord Sound Manager
• String Resonance
• Timbre settings - individually tailored for acoustic, electric and clavinet sounds
• 3 KB Touch settings
• Dynamic Compression for even sound level without altering the tonal character
• Unison with 3 amount options
• 120 Voices polyphony for Piano Library sounds.

Synth Section
• Sample, Analog and FM synthesis
• Samples can be added, replaced and organized using the Nord Sound Manager
• Preset library for Analog and FM sound
• Amp and Filter/FM ADR/ASR envelopes
• Velocity and Amount controls for Filter/FM envelope
• Low Pass Filter with Cutoff and Resonance controls for Analog and Sample sounds
• Amount and Partial controls for FM
• Mono, Legato and Glide options
• Unison with 3 amount options
• 3 Dynamics/amp velocity options
• Vibrato with adjustable rate, amount and delay
• Synth Vibrato button for real time control
• 30+ voice polyphony

Rotary Speaker
• Rotary Speaker emulation from Nord Organ 3
• Close, Wide and XY Mic Position options
• Bass Wide (stereo) option
• Dedicated tube Drive control
• Fix Angle option for Stop position (user adjustable)

Effect Section
• Dedicated Effects for Organ, Piano and Synth
• FX Focus with FX Bypass option
• Expression Pedal can be assigned to most effect parameters

Mod 1
• Pan1 (Soft), Pan2 (Hard), Tremolo, Wah and Ring Modulator
• Dedicated Rate and Amount Controls

Mod 2
• Phaser, Flanger, Chorus, Vibe and Ensemble
• Wide option for stereo width
• Dedicated Rate and Amount Controls

Equalizer/Amp Simulations
• Twin, Small, Suitcase, JC and Brit amp models
• Drive
• Three band EQ, with sweepable mid. +/- 15 dB gain/attenuation

Delay
• Tempo with Tap function
• Feedback and Dry/Wet controls
• Low Pass, High Pass and Band Pass feedback filter options
• Ping Pong with 3 amount options
• Analog mode
• Global mode

Compressor
• Amount control and Global option

Global Reverb
• Spring, Room, Stage, Hall and Cathedral reverb types
• Spring Reverb placed before Rotary Speaker
• Chorale option for all reverb types
• Bright/Dark options
• Dry/Wet control with Layer Send mode for individual control of reverb level per section

Connections
• 2 Audio outputs L & R - ¼", 6,35 mm jacks, unbalanced
• 1 Monitor input - 1/8", 3,5 mm stereo jack
• 1 Headphone output - ¼", 6,35 mm stereo jack
• 1 Expression pedal input - ¼", 6,35 mm TRS stereo jack
• Sustain Pedal - ¼", 6,35 mm jack. Compatible with Nord Sustain Pedal 2 (continuous sensor), Nord Triple Pedal 1 and switch type pedals
• Rotary Control/Foot Switch - ¼", 6,35 mm jack.
• Use a momentary pedal or a switch type pedal.
• MIDI In - 5 pin DIN connectors
• MIDI Out - 5 pin DIN connectors
• USB - type B connector for USB MIDI, Software Update and Sound Transfer
• Power Cord with IEC C14 connector

Included Accessories
• User Manual
• Power cord

Dimensions
• Nord Electro 7 61: 901 mm (35.5") x 104 mm (4.1") x 294 mm (11.6")
• Nord Electro 7 73: 1066 mm (42") x 104 mm (4.1") x 294 mm (11.6")
• Nord Electro 7 HP: 1070 mm (42.1") x 130 mm (5.1") x 341 mm (13.4")

Weight
• Nord Electro 7 61: 8.3 kg (18.3 lbs)
• Nord Electro 7 73: 9.5 kg (20.9 lbs)
• Nord Electro 7 HP: 13 kg (28.66 lbs)
