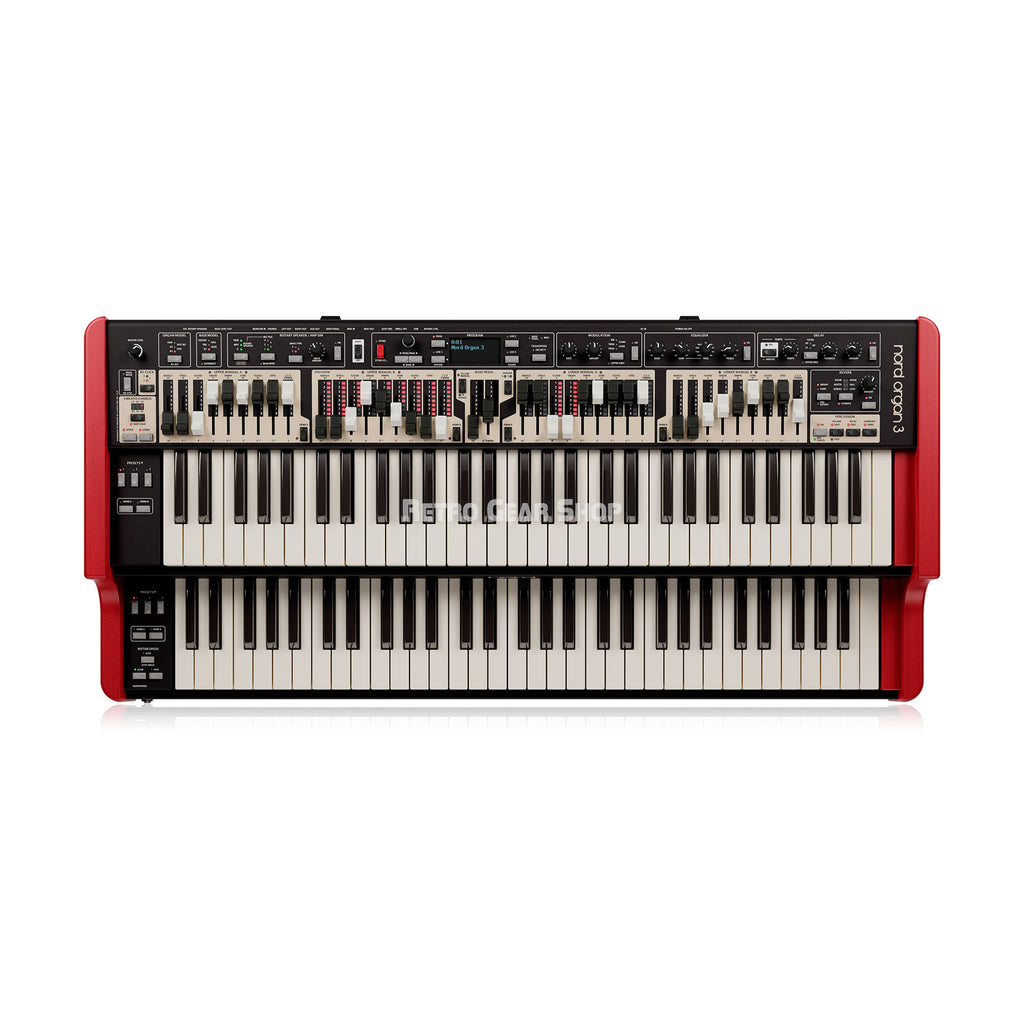

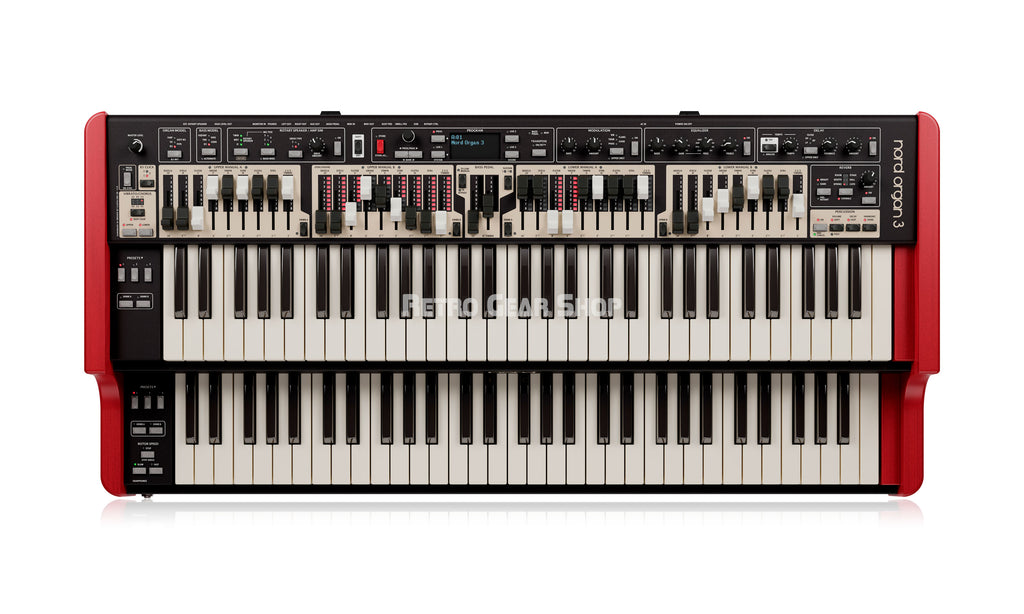

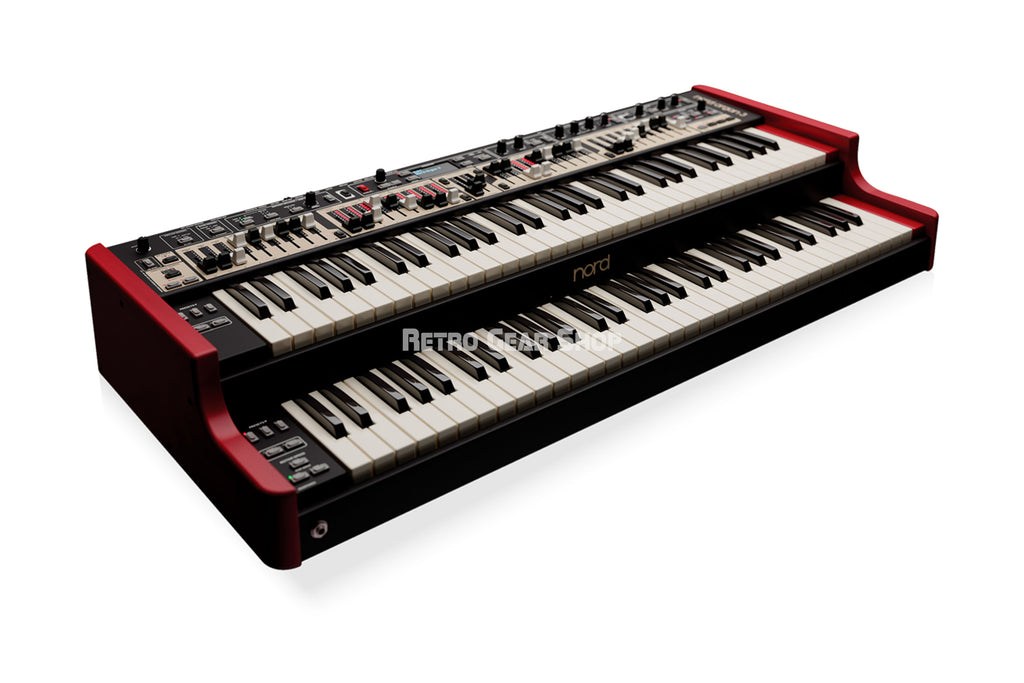

Nord Organ 3 Stage Keyboard

The acclaimed Nord Organ is back - reborn and reimagined as the all-new Nord Organ 3. The latest generation of our Organ series featuring massive improvements to sound, design and performance. With a greatly enhanced organ engine, added modulation effects and a new exceptional-sounding rotary speaker emulation, the Nord Organ 3 offers an unsurpassed level of detail and realism.

General
• New panel design with OLED display
• Triple sensor keybeds
• LED indicators for preset drawbar settings
• Per program Transpose function
• Bass to lower manual option
• Aux output with routing options for Bass/Pedal drawbars and more
• 11-pin Leslie connector
• High level output

B3 Organ
• Enhanced B3 organ model
• New and improved Chorus/Vibrato

Transistor and Pipe Organs
• Improved Farfisa and Vox organ models
• Pipe Organ emulation
• Soft B3

Bass Models
• Authentic B3, Vox and Farfisa Bass
• Synth Bass options based on classic pedal synthesizers

Rotary and Amp modeling
• Brand new Rotary Speaker emulation
• Multiple options for microphone placement
• Fixed Stop Angle feature
• 3 Drive Type options
• New British amp and speaker emulation

Effects
• Brand new Spring reverb
• Expanded Reverb section with Pre-Rotary option
• Delay with new Analog mode and Feedback filters
• New Modulation effects including Phaser, Tremolo, Ring Mod, Flanger and Chorus.
• Equalizer with sweepable middle band

General
• Master Level Control
• OLED display
• Transpose button
• 2 Drawbar sets per manual
• 1 LED indicator set per manual
• Pedal drawbars
• Aux output for optional Bass/Pedal routing
• 400 Program locations
• 3 Live Programs
• 1 Program and 2 Preset buttons per manual
• Drawbar A and B selector buttons per manual

Organ section
• B3, Soft B3, Vox, Farfisa and Pipe models with full polyphony
• Organ Bass models: B3, Vox, Farfisa and Pipe
• Synth Bass models: B3 synth, Trek and Taurus
• Percussion Controls with Poly and DB9 Cancel options
• Vibrato/Chorus with B3 Deep mode

Rotary Speaker/Amp Section
• Brand new Rotary Speaker emulation
• Multiple options for microphone placement
• 3 Drive Types and Drive amount control
• JC, Brit and Twin amp and speaker emulations

Effects
• Modulation: Phaser, Tremolo, Ring Mod, Flanger and Chorus with Rate and Amount controls
• 3-band Equalizer with sweepable middle band
• Delay: Analog mode, LP/HP/BP Feedback filters, Feedback Amount, Dry/Wet control, Tempo control with Tap option, Upper Manual only mode
• Reverb: Spring, Booth, Room, Stage, Hall, Cathedral, with Chorale, Bright/Dark, Pre-Rotary option and Amount control

Keyboard
• 2 x 61 Triple Sensor Semi Weighted Waterfall Keyboard

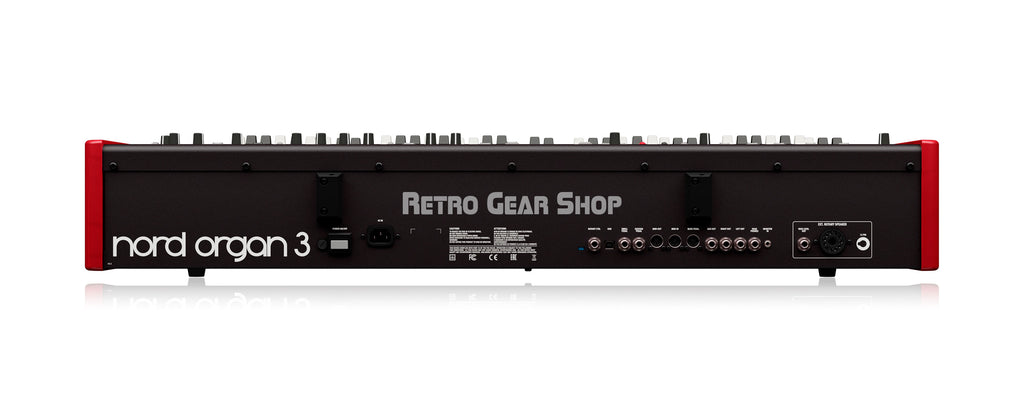

Connections
• Stereo Headphone Output - ¼", 6,35 mm stereo jack
• 2 Line Level Audio Outputs, L & R - ¼", 6,35 mm jacks, unbalanced
• 11-pin Leslie standard connector
• High Level Out ¼", 6,35 mm jack
• Aux Out ¼", 6,35 mm jack
• Monitor Input - 1/8", 3,5 mm stereo jack
• Sustain Pedal Input - ¼", 6,35 mm jack
• Rotor Control Input - ¼", 6,35 mm jack, Half-Moon Switch or momentary pedal
• Swell Pedal Input - ¼", 6,35 mm TRS stereo jack
• MIDI In - 5 pin DIN connector
• MIDI Out - 5 pin DIN connector
• Bass Pedal MIDI In - 5 pin DIN connector
• USB - type B connector
• IEC C14 power connector

Dimensions
• 985mm(38,8”) x 165mm (6,5”) x 446mm (17,6”)

Weight
• 17kg (37.5lbs)

Included Accessories
• User Manual
• Power cord
