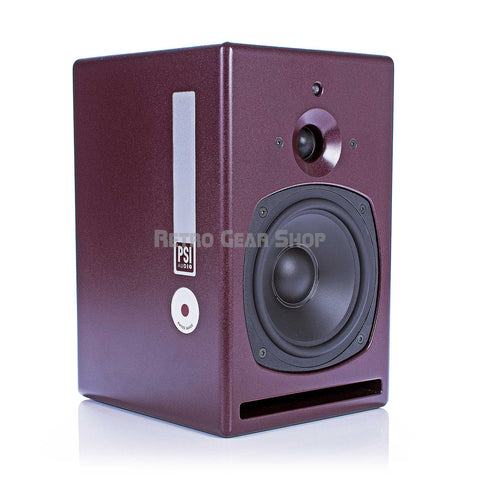

PSI Audio A17-M

Regular price $1,879

HomeOutboard/RecordingMonitorsPSI Audio

Incredible monitor for tracking, mixing or mastering. Very accurate speaker so you can make smart mix decisions that will translate well to other systems.

Price is for a single monitor.

Available in black or pure white color for an additional $90.
Custom colors are available for an additional 20%, contact us if interested.

Very broad bandwidth in a compact cabinet.A17-M Back
Flat frequency response.
Optimised directivity by phase coherency.
Optional metal bracket.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.

A classic near-field precision monitor, the A17-M is the ideal entry model to the PSI Audio range. Perfectly suited for surround sound and near-field applications, the A17-M is ideal for studio application where the ultimate in precision is required. Its compact form incorporates the full range of PSI Audio’s outstanding technologies.

The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behavior – with excellent stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area.

Designed to work in harmony with the full range of A series monitors the A17-M also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub – thus protecting your investment.

Power RMS: 80 + 40W
Program Power: 120W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 104 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 115 dB (pair)
Response at -6dB: 43 - 23000 Hz
Tolerances: ±2.5 dB (50Hz - 20kHz)
Distortion THD: less than 1.5% (100Hz-12kHz)
Phase tolerances: ±45° (180Hz - 20kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 90° x 90° (H x V)
System: 2 Way(s)
Crossover frequency: 3.0 kHz
Woofer's dim. Ext. / Diaphragm: Ø175 mm / Ø130 mm
Tweeter's dim. Ext. / Diaphragm: Ø100 mm / Ø25 mm
Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 200 x 320 x 230
Gross / Net Weight: 9.5 / 8.4 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
External Temperature: 5 - 40°C
