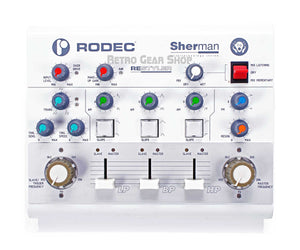

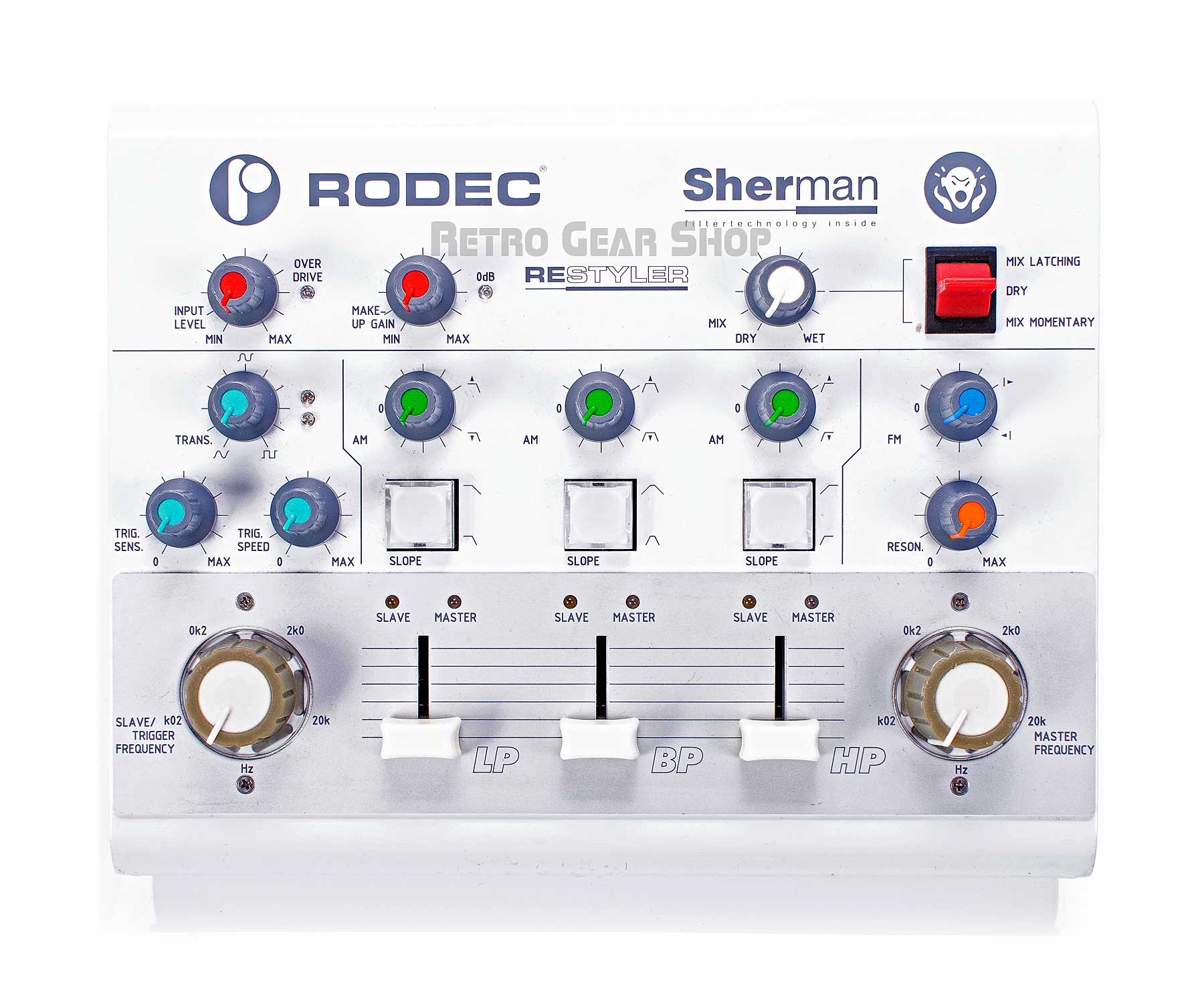

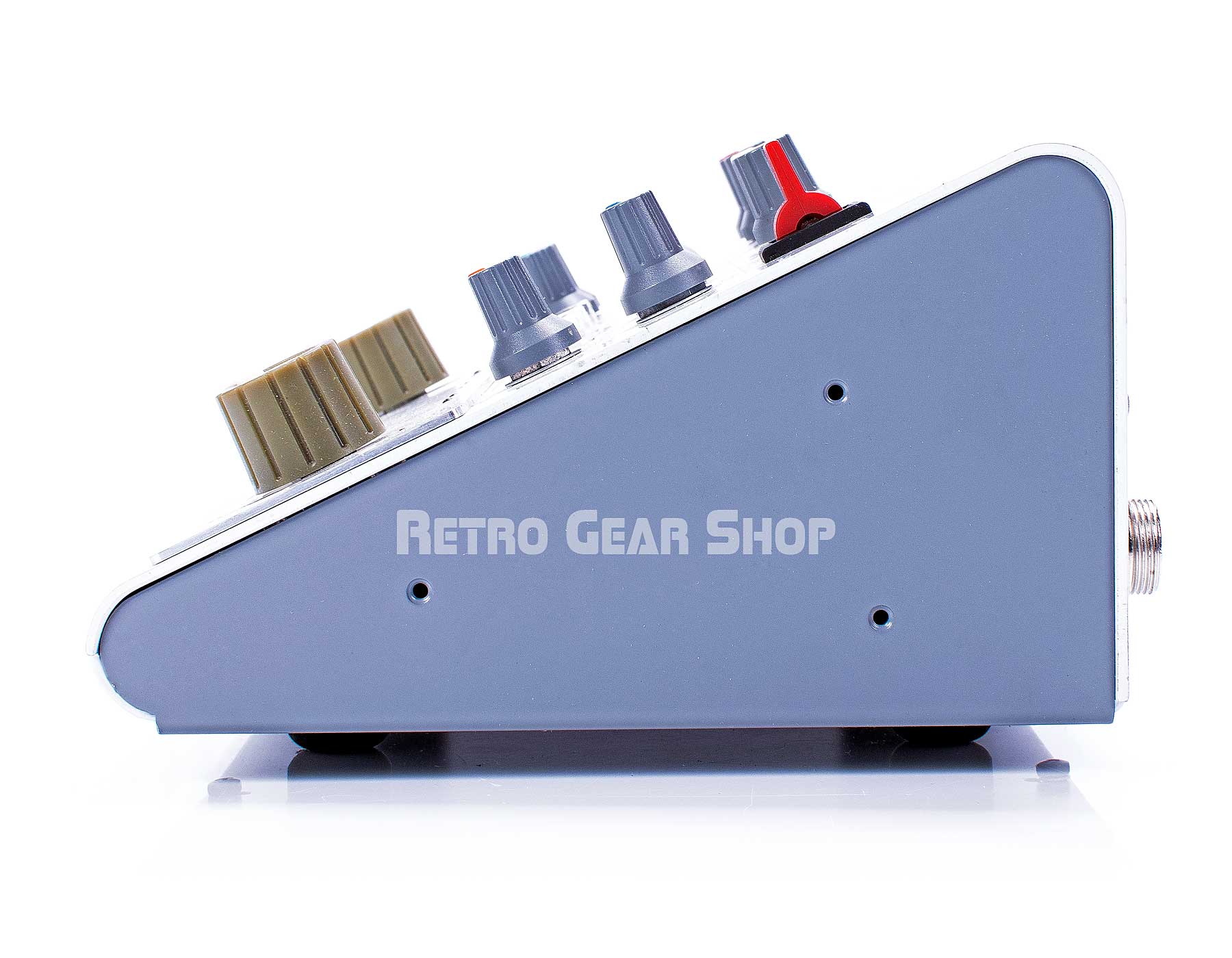

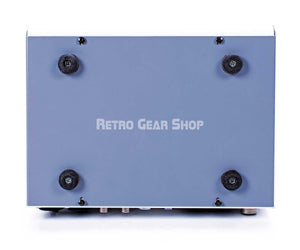

Rodec Sherman Restyler - used

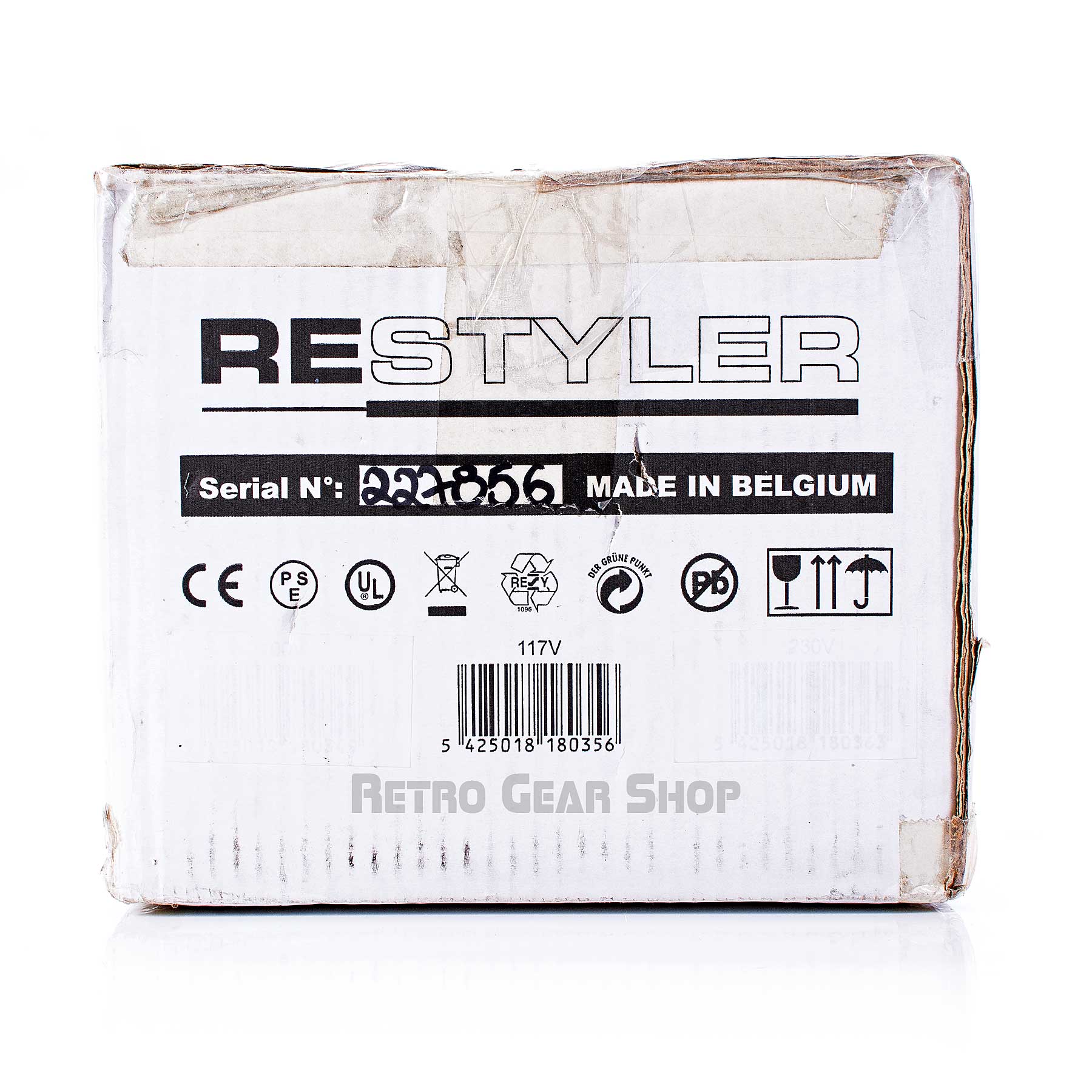

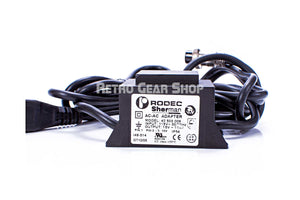

Excellent condition. Fully functional. Includes original box, power supply and pictured extras. Original box shows a little wear, but unit itself is in great shape with only minor signs of wear.

In stock packed up ready to ship!
**Check out the pictures to make sure you like it. Pictures are of actual item for sale.**
The Rodec / Sherman "Restyler" is the result of great collaboration between two high-end analogue Belgian manufacturers!
This unique masterpiece is no regular effects unit or filter bank ... it's a one of a kind "RESTYLER"

The Restyler redefines the dynamic, punch, groove and sound of your music, instrument or musical production.
It can be used by deejays, musicians, producers, remixers & musical freaks worldwide.

Nominal analogue input levels:
Asymmetrical (RCA): 50mV to 10V / 100k
Symmetrical (JACK): 50mV to 10V / 200k
Symmetrical (XLR): 50mV to 10V / 200k

Nominal analogue output levels:
Asymmetrical (RCA): 0V to 3.3V/ 150
Symmetrical (JACK): 0V to 6.6V / 300
Symmetrical (XLR optional): 0V to 6.6V / 600

General specifications:
Frequency range master and slave frequency potentiometers: 15Hz – 39kHz
Maximum resonance / oscillation level: +15dBm (on asymm. outputs) +21dBm (on symm. outputs)
Crosstalk left to right: >47dB @ 1kHz
Frequency response: +/- 0.50dB from 20Hz to 20kHz

Power supply voltage: 230VAC
Power supply frequency: 50Hz
Power consumption: 18.5W

Operating temperature: 0°C (32°F) – 40°C (104°F)
Operating humidity: 5% - 90% (no condensation)

Mechanical specifications:
Dimensions (W x D x H): 222.0mm (8.74") x 172.0mm (6.77") x 115.0mm (4.53")
Packed box dimensions (W x D x H): 250mm (9.84") x 250mm (9.84") x 217mm (8.54")
Weight (without transfo): 1.90kg (4.19lbs)
Weight (with transfo): 2.60kg (5.73lbs)
Packed weight: 3.10kg (6.83lbs)
