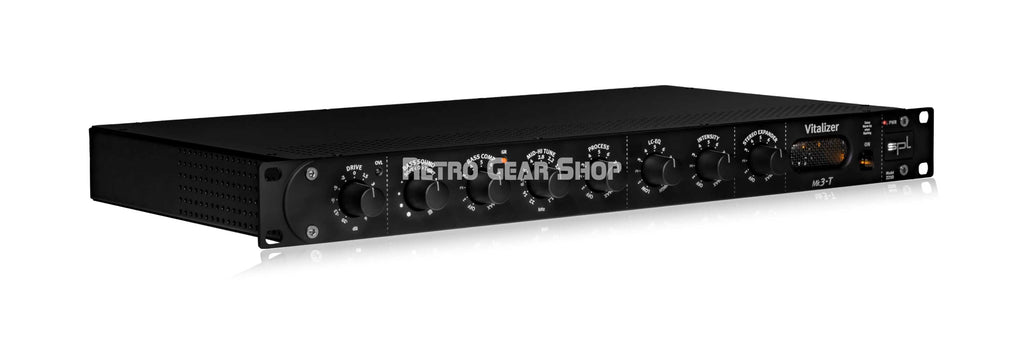

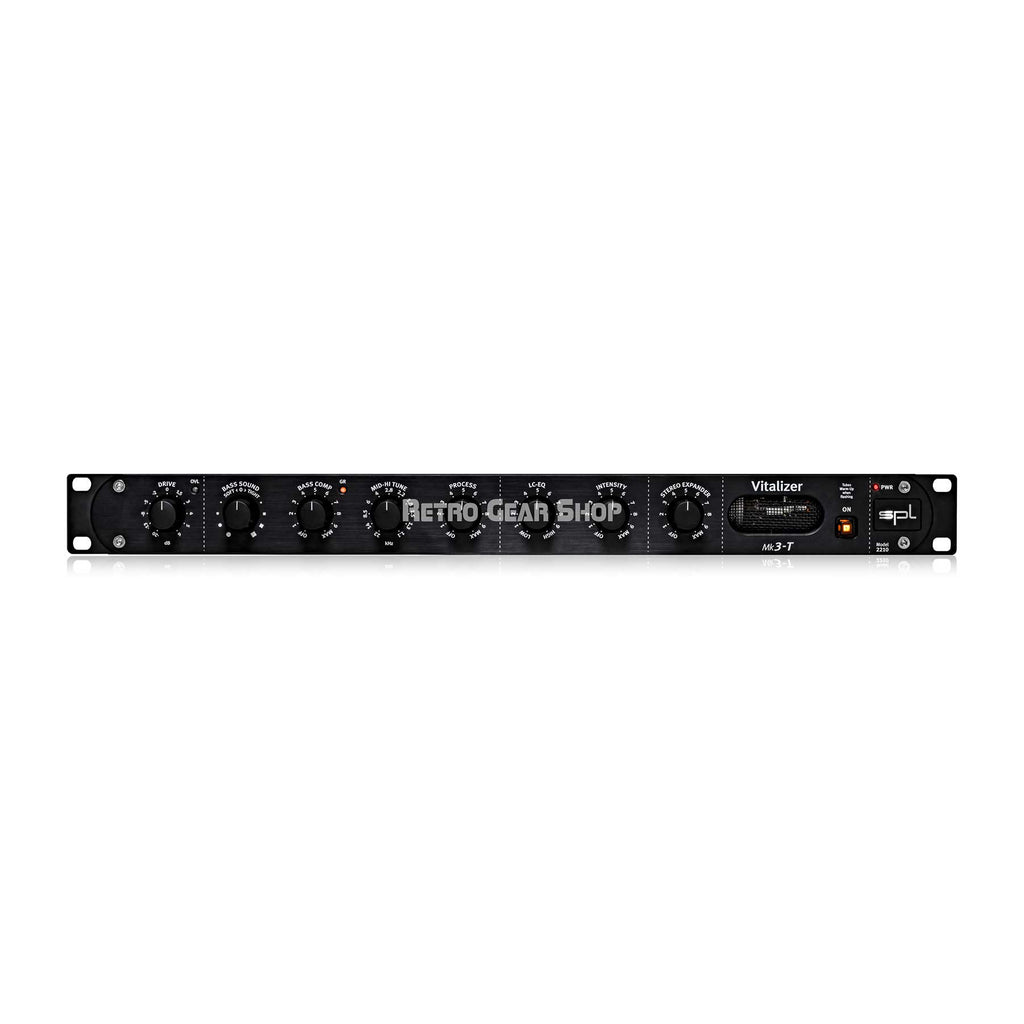

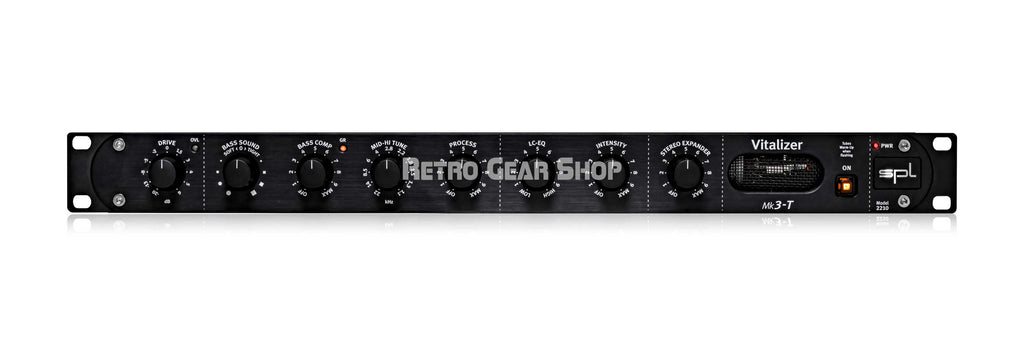

SPL Audio Vitalizer Mk3-T

The patented Vitalizer circuitry makes the Vitalizer Mk3-T an unsurpassed sound designer. Whether live or in the studio, audio productions sound more alive, have more details, more transparency, a higher perceived loudness and, if required, an overwhelming bass fundament.

The Vitalizer Mk3-T not only swaps the classic, golden robe of the previous model for the new, black design of the SPL Studio Series – the higher internal audio voltage of +/-18 V elevates this third generation SPL classic to greater sonic results and impresses with an even better and more detailed sound experience.

• The De-Masking
A key feature of the Vitalizer technology is the unmasking of superimposed sound components. The Vitalizer thereby relates the time of perception of a frequency to its amplitude. Through a minimal temporal offset of loud frequencies, quieter, previously superimposed sound components are “de-masked” and thus become audible.

• The Vitalizer adapts the frequency spectrum to the curves of equal loudness, which improves the loudness perception in particular.
The non-linear sensitivity of the human hearing is described already in the 1930s by the “Fletcher-Munson curves”. These “curves of equal loudness” (today defined by the standard ISO 226:2003) illustrate the equal perception of loudness as a measure of sound pressure level, over the frequency spectrum, for which a listener perceives a constant loudness when presented with pure steady tones.

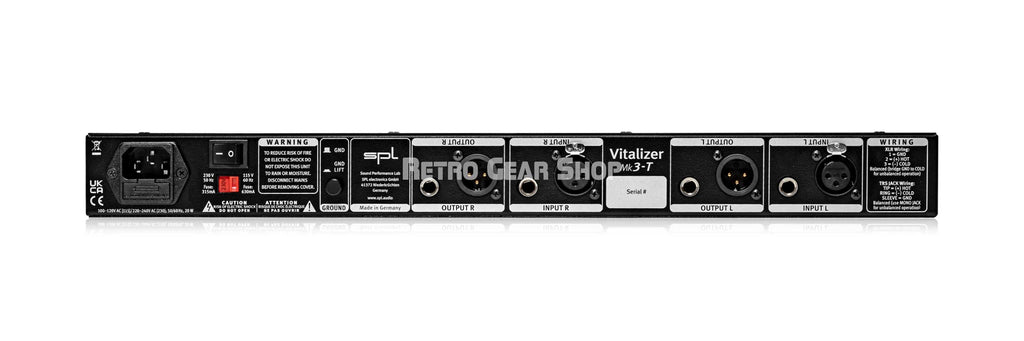

Analog inputs & outputs; XLR & TRS Jack (balanced)
• Input impedance: 22 kΩ
• Output impedance: 75 Ω
• Maximum input level: 22.5 dBu
• Common Mode Rejection Ratio (CMRR): 86 dB
• Frequency range (-3 dB): 10 Hz – 100 kHz
• THD + N (0 dBu, 10 Hz – 22 kHz): 0.01 %
• Noise (A-weighted): -99 dBu
• Dynamic range: 122 dB

Internal Linear Power Supply with Shielded Toroidal Transformer
• Operating voltage
for analog audio: +/- 18 V
• Operating voltage for relays and LEDs: + 12 V
• Tubes anode voltage: 250 V
• Tubes heating voltage: 12.6 V

Mains Power Supply
• Mains voltage (selectable): 230 V AC, 50; 115 V AC, 60 Hz
• Fuse for 230 V: T 400 mA
• Fuse for 115 V: T 800 mA
• Power consumption: max. 20 W

Dimensions & Weight
• W x H x D (width x height x depth): 482 x 44 x 237 mm
19 x 1.73 x 9.33 inch
• Unit weight: 3.4 kg
7.5 lbs
• Shipping weight (incl. packaging): 4.75 kg
10.47 lbs
