Stereoping Programmer Waldorf Microwave 1 Used

Stereoping Programmer Midi Controller loaded with Waldorf Microwave 1 midi program and Microwave faceplate. Take your Microwave sound design and programming to new levels with this hands on controller!

Very limited stock.

Includes Manual & Power Supply. Retro Gear Shop is the only Stereoping authorized dealer in the USA!

The Stereoping ‘Synth Programmer’ is the next logical step after our successful Synth Controller. It allows direct access to all parameters of your favorite music synthesizer – with 45 pots, 4 endless dials, a 2×16 character display and 7 old-school pushbuttons. High quality electronic parts in a tough and cute steelcase Made in Germany.

The Synth Programmer will be available in several editions, each highly specialized and optimized in visual design and firmware to get the most out of the supported synthesizer.

The programmer will be connected to your synth in a loop (MIDI IN to MIDI OUT and vice versa) for both to use the same initial patch-parameter values. On turning a knob the display shows – besides the new – also the ‘old’ value for targeted, non-destructive editing. Of course the programmer has a second MIDI IN jack to be connected to your DAW or sequencer. Incoming Midi data will be merged with the parameter changes from the frontpanel and will be sent together into your synthesizer. You can tweak the sound while the sequencer fires notes into the synth at the same time. The 45 most important parameters are assigned directly to pots. The remaining are clustered in groups and quickly accessible over display and encoders. One feature we always loved on vintage synthesizers is the Chord Memory. We therefore thought it would be nice to integrate one in the Synth Programmer.

Each Synth Programmer comes with a Chord Memory. We therefore thought it would be nice to integrate one in the Synth Programmer. A learnt chord (up to 6 notes) can be transposed on the keyboard by pressing just one key. The Chord Memory of the Synth Programmer does not only memorize one chord, it offers five, each with it’s own strum delay! These five ‘Chord-Slots’ can be swapped quickly by midi notes to play or automate the most complex chord progressions. All your learnt chords will be saved automatically and are instantly available after the next powerup.

Each Synth Programmer comes with a decent, detailed, printed operation manual in english. For the DIY kit we will offer a pictured building instructions PDF. The kit is complete: all parts, pre-programmed MPU, knobs and a tough steelcase with faceplate.

Synth Programmer Editions

The Synth Programmer will be offered in 6 Editions, each carefully designed and programmed to get the most of the targeted synthesizer. It is NOT possible to swap the editions directly on the programmer. This would not make any sense – the faceplate would not match anymore. The Matrix does not have any Wave Envelope and the Microwaves Oscillators have no Crossmodulation e.g. But you can dump any edition into the programmer, so you can safely try out all the others. We also will offer faceplates separately. If you decide to permanently swap to another edition – no problem.

The edition for Waldorf Microwave offers full access to all of the 165 Single parameters.

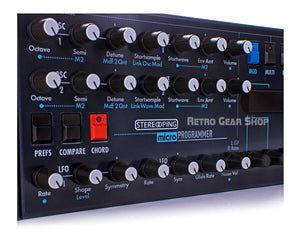

To easily manage the fixed modulations we developed a clever system: press the MOD button, turn the pot with the modulation parameter you want to change (printed in blue) and you got all the “Mod Src/Mod Ctrl/Mod Amnt” parameters on screen, directly accessible thru the 4 encoders. There is also a decent MULTI mode: assign any of the Microwave’s Multi-Instrument parameters to one of the 4 pot-rows on the right programmer’s side, e.g. Detune, Transpose, Pan and Volume. The pots now offer direct editing for the first 6 instruments. For the 3 rows to the left you can choose any CC# to be sent on the Midichannel of these first 6 instruments. Selecting Sound Programs making use of these CC# as modulation sources turns the Microwave in combination with the Synth Programmer into a real modulation monster.

Weight: 5.6lbs
Dimensions: Width: 19"
Front height: 2.5" (bottom to knob top)
Rear height:3.5" (bottom to knob top)
Depth: 5.25" (3U rack height)
Stereoping Programmer Microwave Manual
Stereoping Programmer Microwave Firmware V1.02
