Strymon BigSky
Home → Sales Archive → Sold Effects
To create a reverb experience as natural, beautiful, and immersive as BigSky required tremendous feats of sound engineering and artistic imagination. Using the fundamentals of acoustical science as our beacon, we carefully studied and scientifically analyzed reverb technology from the past fifty years. We faithfully captured the essence of these classic sounds, and forged ahead to dream up our vision of reverbs from the future.
Feel the mechanical tension of the Spring reverbs. Hear the floating particles of the Cloud machine. Defy the laws of physics with the Nonlinear reverbs. Unleash the multi-head reverberations of the Magneto machine. BigSky gives you twelve studio-class reverb machines, each with simple yet powerful controls.
Sound Design
• Hand crafted, studio-class reverb algorithms deliver lush, gorgeous, and musically inspiring reverb experiences
• Twelve reverb machines to choose from: Room, Hall, Plate, Spring, Swell, Bloom, Cloud, Chorale, Shimmer, Magneto, Nonlinear, Reflections
• Seven front-panel tone shaping knobs: Decay, Pre-Delay, Mix, Tone, Mod, Param 1, Param 2 (Param knobs assignable per preset)
• Additional menu parameters allow for easy customization of reverb sounds
• 300 easily accessible and namable presets
• Press-and-hold Infinite Sustain and Freeze functions, saveable per preset
• Spillover and Reverb Persist modes, saveable per preset
• Selectable Speaker Cabinet emulation for direct-to-PA gigs or recording applications
Hardware
• Three rugged metal footswitches for preset selection and effect bypass
• LED display for preset info, reverb decay time, and extended parameter control
• Multi-color preset LEDs (green for active preset, amber for edited preset)
• Full MIDI implementation allows extended control for those with more complex rigs
• Sturdy and lightweight light blue anodized aluminum chassis, with laser-etched artwork
• Durable black anodized aluminum knobs
• Studio-grade audio input and output jacks

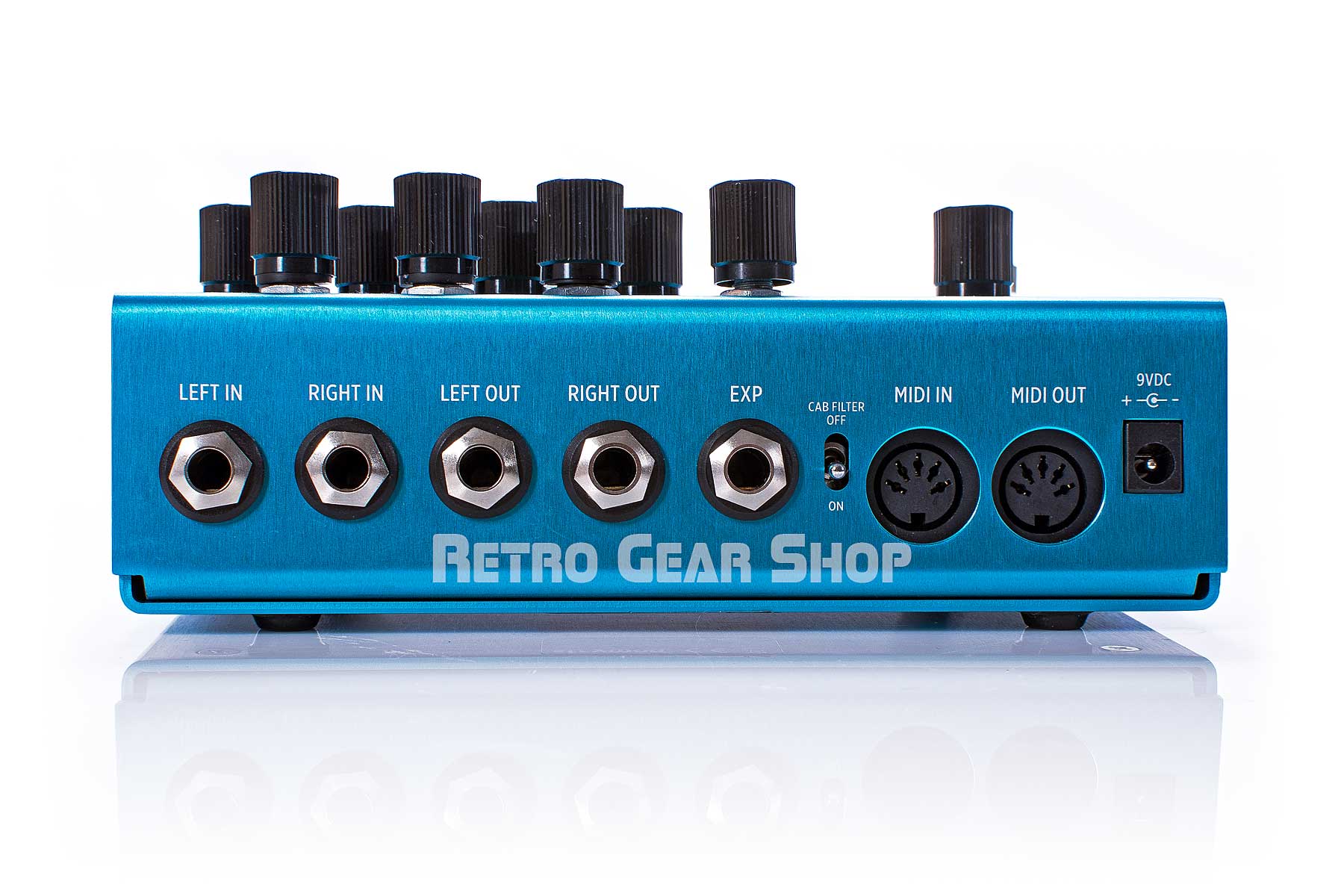

Ins & Outs
• Stereo input and output
• Expression pedal input with selectable control over any knob or combination of knobs, saveable per preset (also configurable as external tap input)
• MIDI input and output
• Included 9V center-negative power supply (300mA minimum required)
Audio Quality
• Analog dry path for a zero latency dry signal that is never converted to digital
• Premium analog front end and output section
• Ultra low noise, high performance 24-bit 96kHz A/D and D/A converters
• 115dB typical signal to noise at 50% wet mix (120db at 100% dry mix, 109dB at 100% wet mix)
• 20Hz to 20kHz frequency response
• +8dBu maximum input level easily handles instrument and line signals
Processor
• Super high performance DSP in a compact form factor
• 32-bit floating point processing
• 366MHz SIMD SHARC processor core, capable of 2.4 Gigaflops peak performance
More
• True Bypass (electromechanical relay switching)
• High quality, tranparent Analog Buffered Bypass mode
• +/- 3dB Boost/Cut, saveable per preset
• Optional Kill Dry mode mutes dry signal, for use in parallel effects loops
• Dimensions: 6.75″ (171mm) wide, 5.1″ (130mm) deep
• Designed and Built in the USA
Strymon BigSky User Manual
