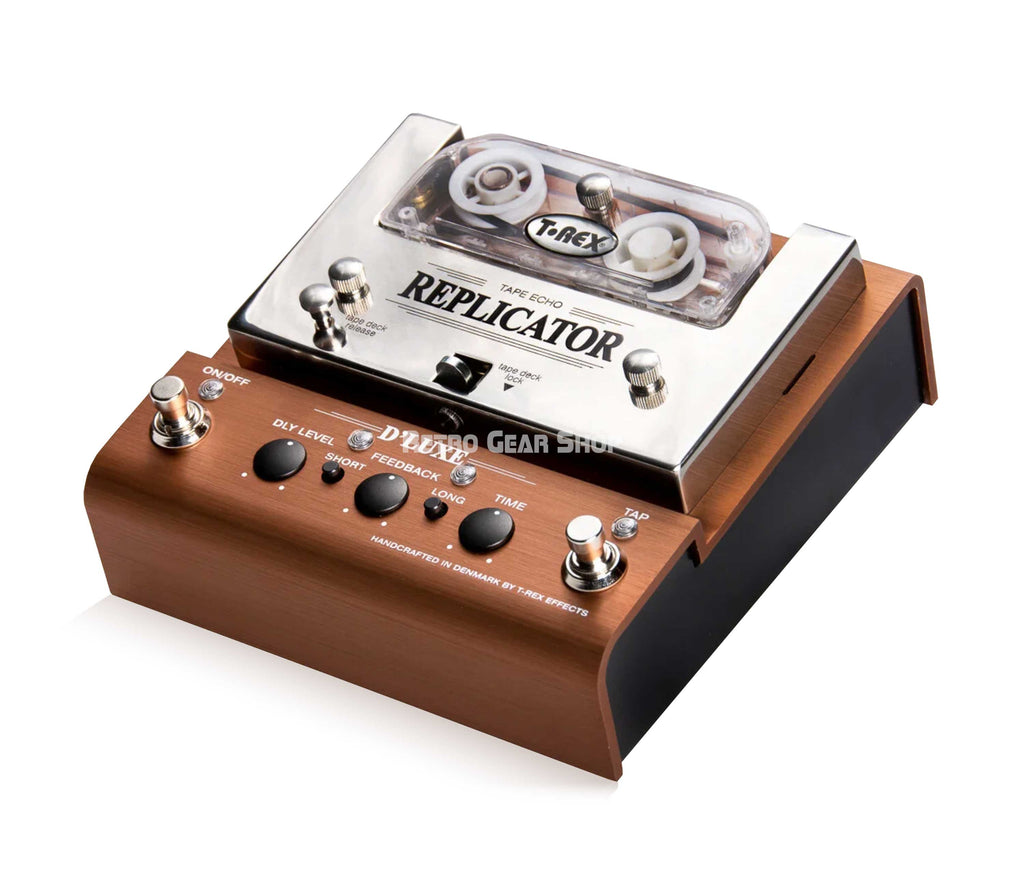

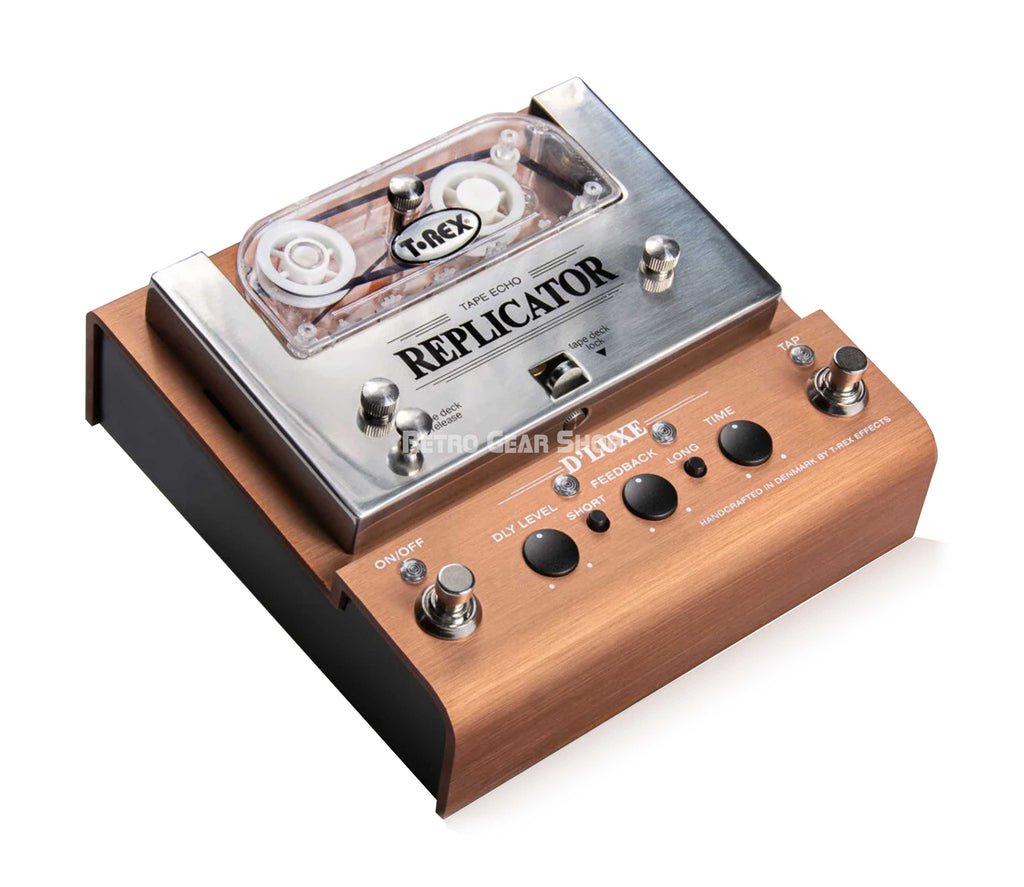

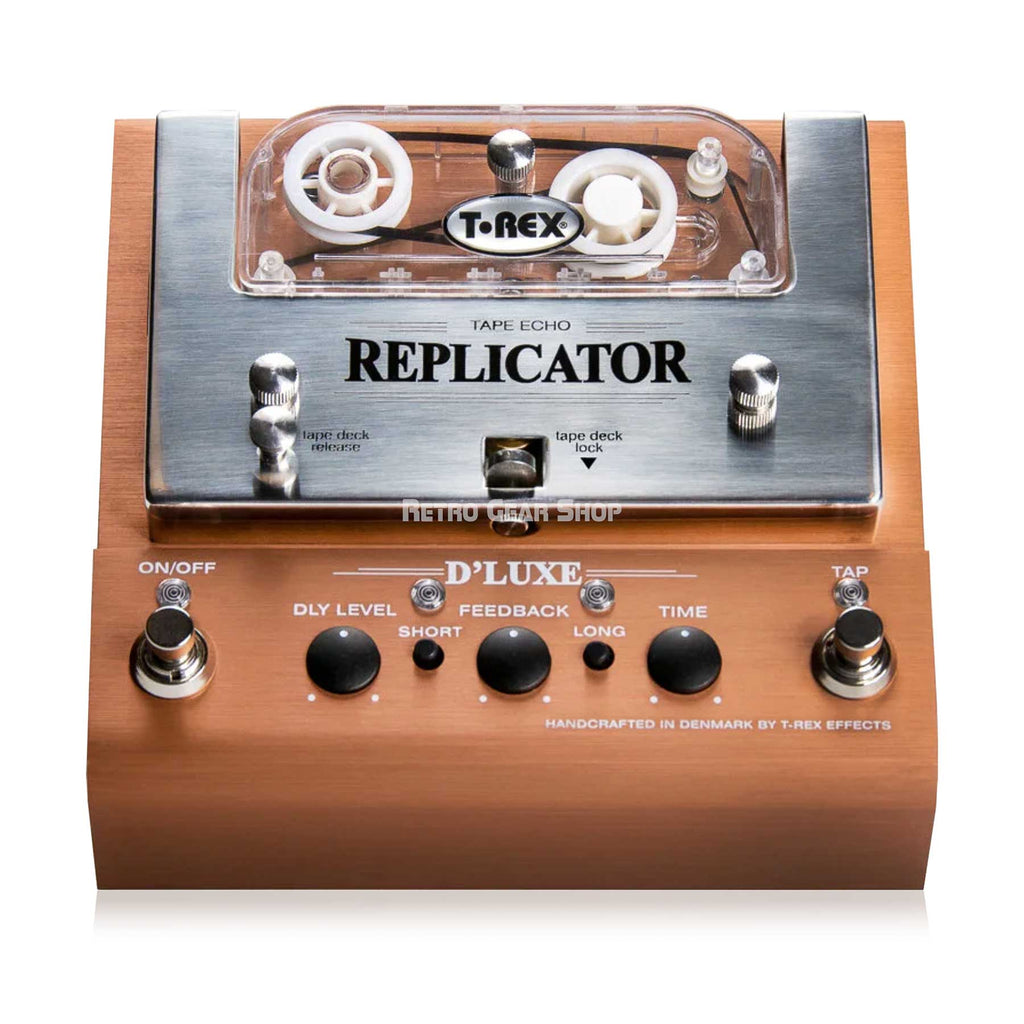

T.Rex Effects Replicator D'Luxe Tape Echo
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
The Replicator D’Luxe is a sum up from all the knowledge we have built up over the years, making Tape delays.
It is a 2 head machine. The drive mechanism has been updated with a noiseless belt drive. A tape lock/release mechanism is added, to make the pinch wheel and tape last longer and electronics have been tuned to perfection.
• Multiple Playback-heads for true analog tape echoes
• One Record head and two playback heads. Short Head for slap back delay. Long head for longer modern delays, or combine both heads for a semi Delay-Room experience
• Delay time Short head =108 – 520mS. Delay time long head = 215 – 1000 mS
• Tap tempo for Long Head and half the time for the short head
• True Bypass switching with a gold plated relay
• New motor suspension with belt drive, for reduced noise operation
• New Tape deck lock-mechanics to protect pinch roller and tape for longer life span
• All analog signal path from input to output
• Power supply with exchangeable blades 90-240 Volt, and an extra tape cartridge included
• Input impedance @ 1KHz: > 500K Ohm
• Output impedance @ 1KHz: < 1K Ohm
• Power supply (included): 12VDC, center negative
• Current draw @ 12VDC: 300mA
• Maximum input signal Vp-p: 8,7V p-p (12dBu)

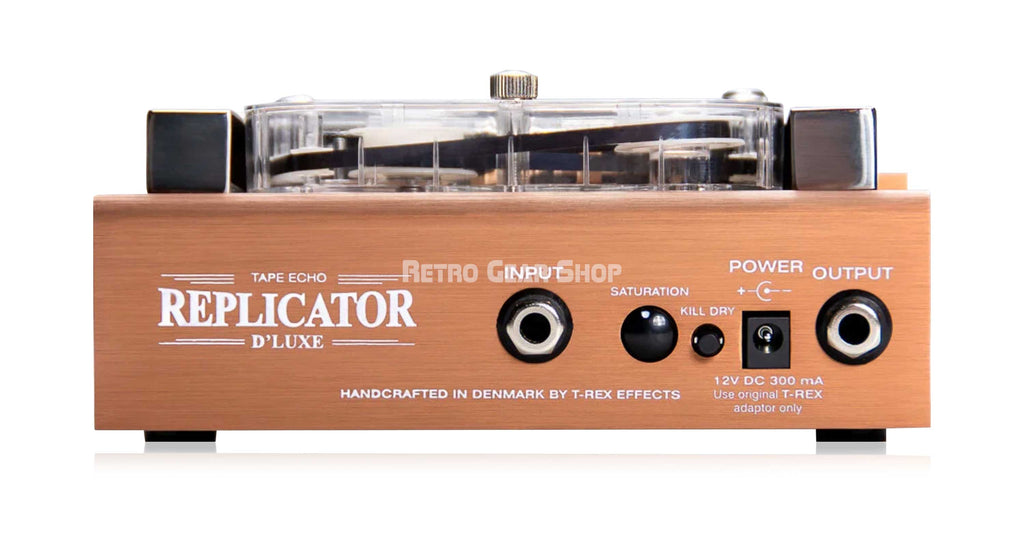

• External connectors: input, output, DC inlet
• Controls: delay time, feedback, delay level, saturation, kill dry, short, long, on/off, tap tempo
• Pedal size incl. Knobs (W x H x D): 80 x 174 x 175 mm / 3,15 x 6,85 x 6,89 in
• Weight excl. Packaging: 1,50 kg / 52,91 oz
