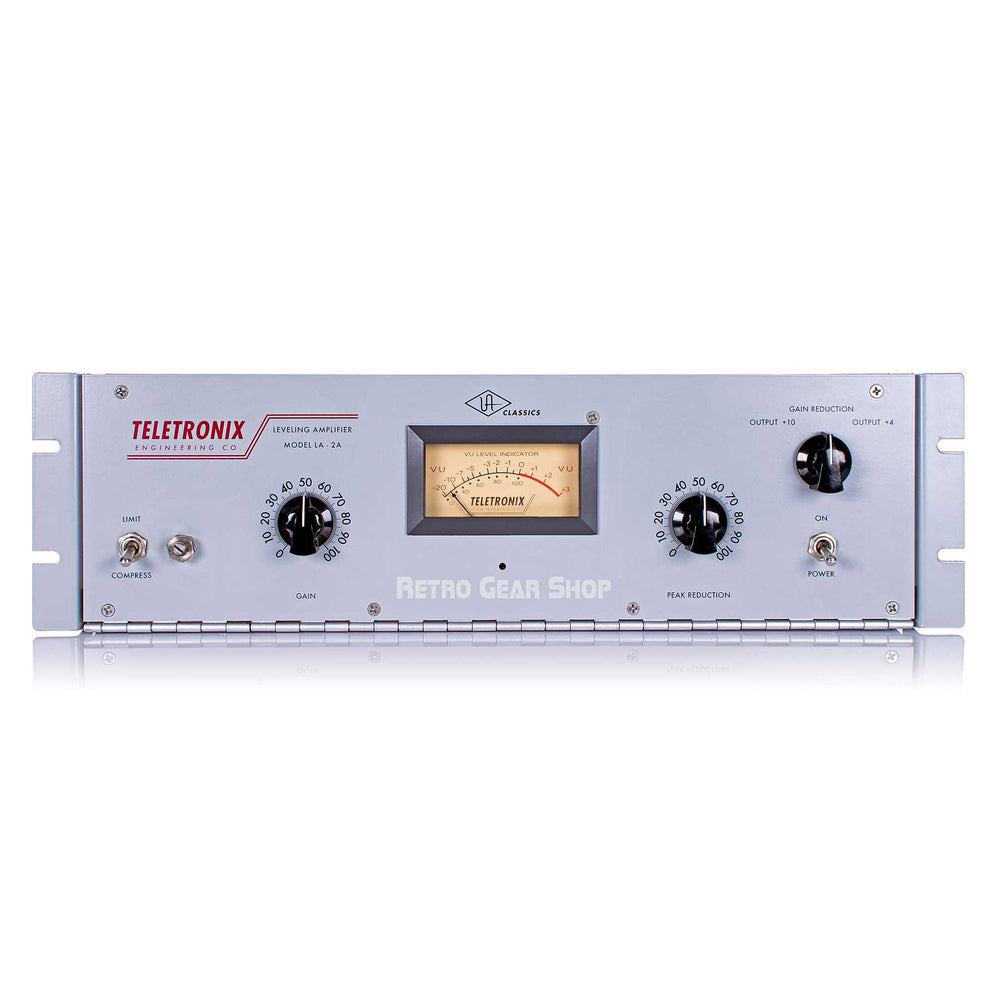

For sale is a UA LA2A tube compressor. Lightly used, but in mint shape and fully functional. From original owner, lightly used in smoke free home studio. Includes original box.
- Dial-in legendary optical tube compression textures for vocals, bass, drums, and more.
- Record your tracks through vintage UA, "handmade in the USA," circuits
- Easily add iconic warmth and tube limiting with simple, easy-to-use controls
- Track and mix with a piece of audio recording history
- True to the original in design, manufacturing and performance
- Lag free, distortion free optical attenuator system
- Distortion less than 0.5% THD
- 0 to 40 dB gain limiting
- Balanced stereo interconnection
- Frequency response 1 dB, 30 to 15,000 cps
- Output level of 10 dBm and 40 dB gain
- Low noise – less than 70 dB below ±10 dBm output
Input Impedance
50, 150, 250, 600 ohms
Output Load Impedance
50, 150, 250, 600 ohms
External Connections
Jones Barrier terminals and XLR connectors
Frequency Response
+0/-1 dB 30 Hz to 15kHz
Gain
40 dB ±1dB
Input Level
+16 dB maximum
Output Level
+10 dB nominal, +16 dB maximum
Distortion
Less than 0.5% THD (0.25% typical) at ±10 dBm
Noise
70 dB below +10 dBm output level
Attack Time
10 microseconds
Release Time
0.06 seconds for 50% release; 0.5 to 5 seconds for complete release
Meter
dB gain reduction and dB output
Power Requirements
35 watts, 120/240 volts, 50/60 Hz
Maximum operating temperature 160°F
Dimensions
19" Rackmount chassis, 3U
Weight
13 lbs.
Universal Audio LA-2A Manual
