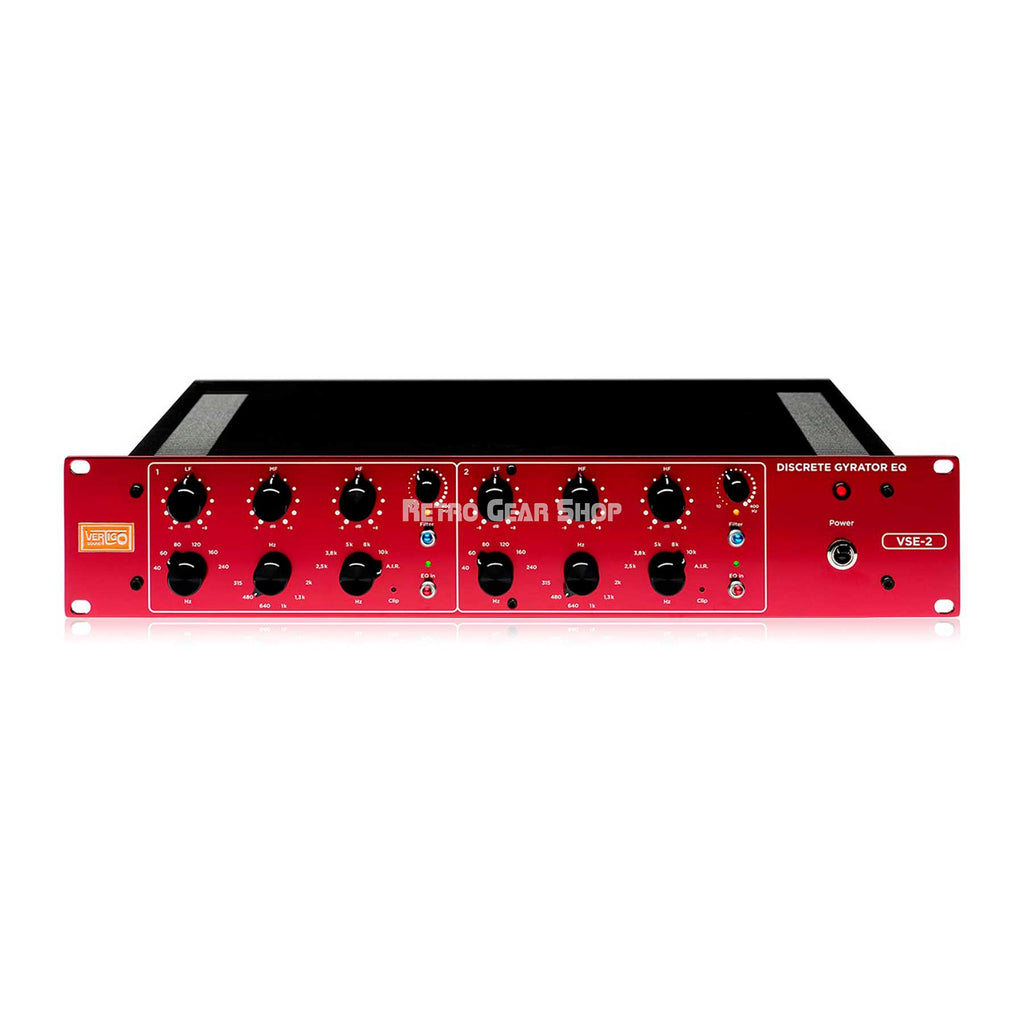

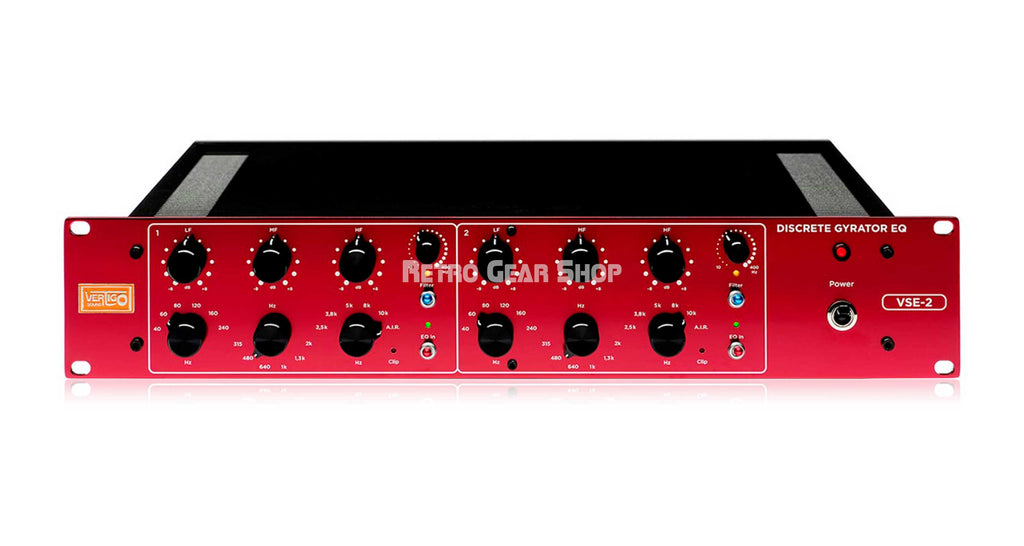

Vertigo Sound VSE-2 Discrete Gyrator EQ

Vertigo Sound VSE-2 Discrete Gyrator EQ

$5,880
×
Vertigo Sound VSE-2 Discrete Gyrator EQ

We often restock popular items or they may be returned by the other customers. If you would like to be notified when this happens just enter your details below.

Vertigo Sound VSE-2 Discrete Gyrator EQ

Please select variant
Please enter name
Invalid email address
Required mobile number Invalid number Invalid country code Too short Too long ✓Valid
Only plain are not allowed in the message Message length must be 250 characters allowed
Country is required
Your notification has been registered. Close
Looks like you already have notifications active for this size!

We respect your privacy and don't share your email with anybody.

×

We have cancelled your request.

  • Free USA shipping.
  • New.
  • Authorized Dealer.
  • Pre-order. Contact us to order, for best possible price and for ETA.

Description

The VSE-2 is another BIG IMPACT DESIGN and is setting a new benchmark for Tracking, Mix-Bus and Mastering applications. Unlike other EQs on the market the VSE-2 is equipped with six discrete gyrators and lots of matchless detailed features. This unique set-up makes the sound of the golden decade of analog recording equipment available in today‘s studio environment.


Features

• Discrete gyrator based Equalizer concept
• Discrete operational Cut and Boost amplifier +-8db
• 18 selectable frequencies on each channel
• Dual Mono Design
• Hi Pass Filter 10Hz-400Hz with Bypass
• Transformer balanced Input
• All EQ parameters controlled by rotary switches
• Unique A.I.R Mode (Enhancement of the auditory threshold)
• Smooth and Punchy
• Super Low Noise (-98dBu)
• Cut & Boost steps +-: 1dB, 2dB, 3,5dB, 5,5dB, 8dB

Specifications

• Cinemag Balanced In. That 1646 Balanced Out
• Dynamic Range: 122 dB
• Frequency response: 10 Hz … 80 kHz (– 3dB)
• Max. Output Level: + 23dBu / 600 Ohm balanced floating
• Signal to Noise Ratio at + 6dBu = 105dB (20 … 20 kHz, unweighted, RMS)
• Noise: – 99dBu (20 Hz – 22 kHz – unweighted, RMS) @ 0dB Unity Gain
• Crosstalk between channels: > 100dB
• Power consumption: max 10 Watts
