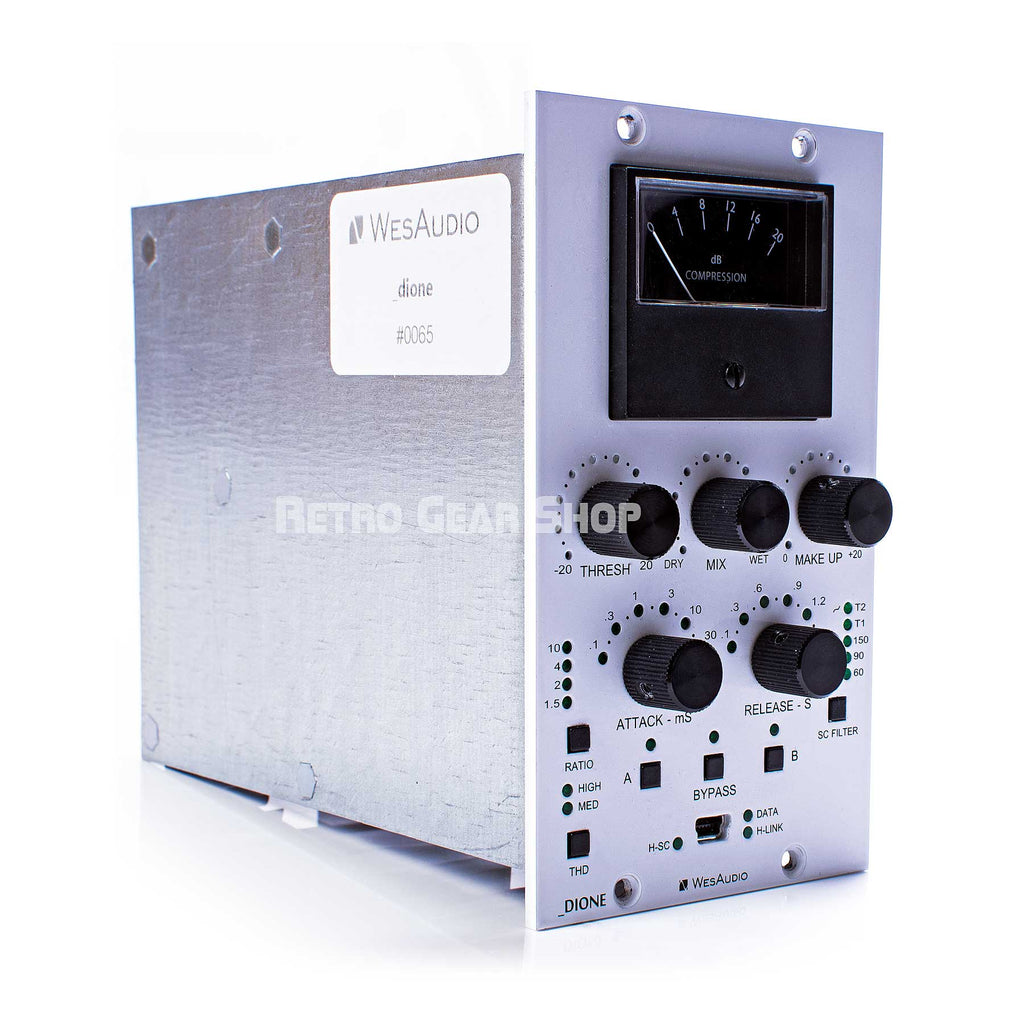

Wes Audio Dione Compressor

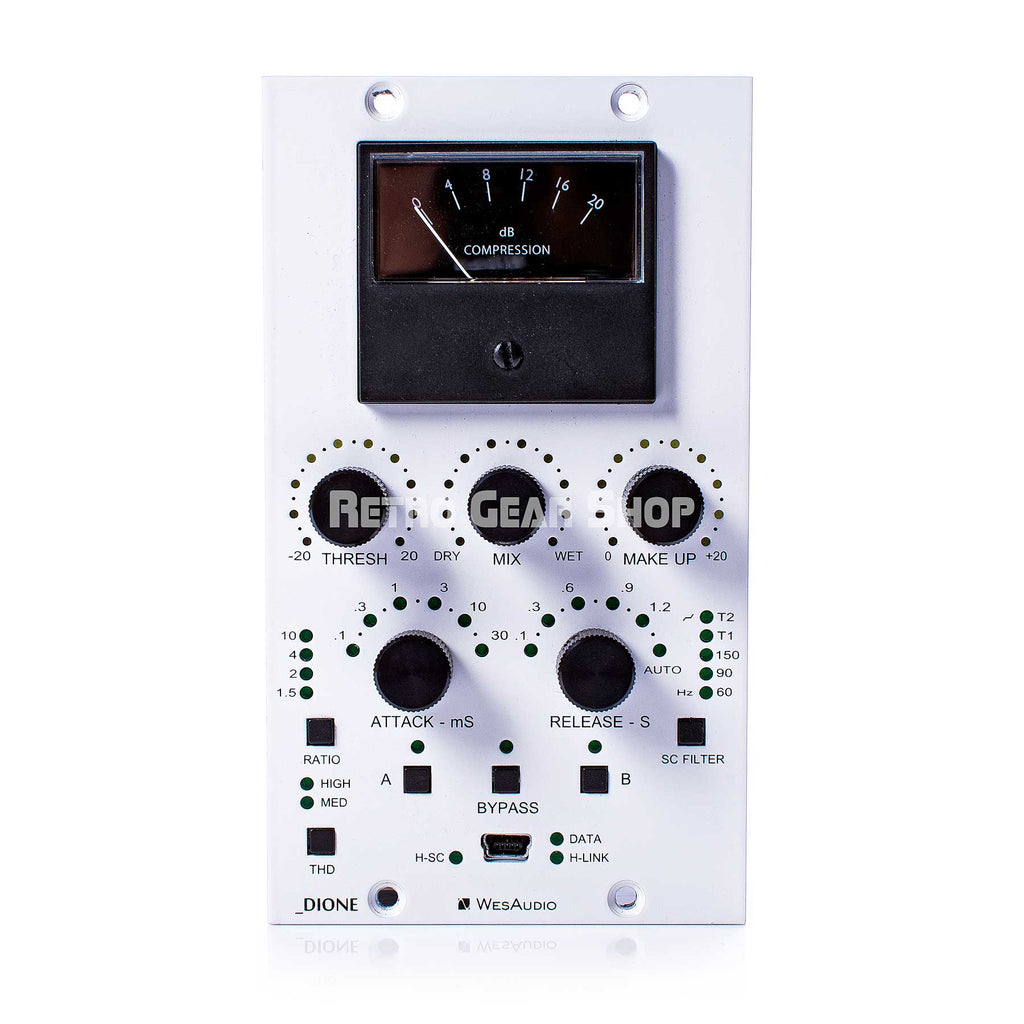

Wes Audio Dione Front
Wes Audio Dione USB Cable
Wes Audio Dione Front Left
Wes Audio Dione Back Rear
Wes Audio Dione Left
Wes Audio Dione Right Internals
Wes Audio Dione Bottom
Wes Audio Dione Top
Wes Audio Dione Box Internal Padding
Wes Audio Dione Original Box
Wes Audio Dione USB Cable

Wes Audio Dione

HomeSales ArchiveSold Outboard/Recording

Legendary sound of Stereo Bus compressor has been true companion on countless recordings since 40 years. Often recognized as “mixbus glue”, this particular compression sound have become industry standard. We present DIONE – fully analog, legendary VCA compressor with digital recall.
Main features summary:
– 100% analog device with +24dBu of headroom powered by QUAD VCA THAT 2181,
– MIX KNOB FOR PARALLEL COMPRESSION
– THD – harmonic distortion with two modes (Medium & High),
– SIDE CHAIN FILTERS – 3 high pass filters at 60,90 and 150 Hz, and 2 tilt filters which are special “curve” designed filters,
– FOUR RATIO SETTINGS – 1.5:1 and 2:1 for gentle mixbus processing, and 4:1 and 10:1 for large variety of applications,
– 500 SERIES and ng500 (e.g. _TITAN) SERIES COMPATIBLE,
– TOTAL RECALL AND PLUGIN CONTROL compatible with most DAWs.
– ANALOG AUTOMATION in DAW.

Other features:
– Fully digitally controlled and isolated analog circuit,
– Digital recall can be acheived by connecting unit directly through front panel mini USB socket, or using it inside _TITAN chassis,
– Digital sidechain – it is possible to send any track from your DAW as side chain signal to the compressor – It is enough to configure side chain feature in connected plugin,
– 3 touch sensitive encoders allow record automation of particular parameters (Threshold, Mix, Make Up) in DAW,
– True bypass,
– Accurate analogue GR meter and its precise simulation implemented in the plug-in itself,
– Free software and firmware upgrades.
Frequency response: 20Hz-20kHz (0.1dB)
THD+N (WET): 0.008% (1kHz,0dBu)
THD+N (DRY): 0.004% (1kHz,0dBu)
Input impedance: 10kohm
Output impedance: <100ohm
Max gain: 21dB
Crosstalk: < -90dB
Attack: 0.1,0.3,1,3,10,30 (ms)
Release: 0.1,0.3,0.6,0.9,1.2,Auto (s)
Ratio: 1.5,2.4.10
SC Filter: 60,90,150,T1,T2
THD (MID switch): 1%
THD (HIGH switch): 4%

Wes Audio Dione User Manual

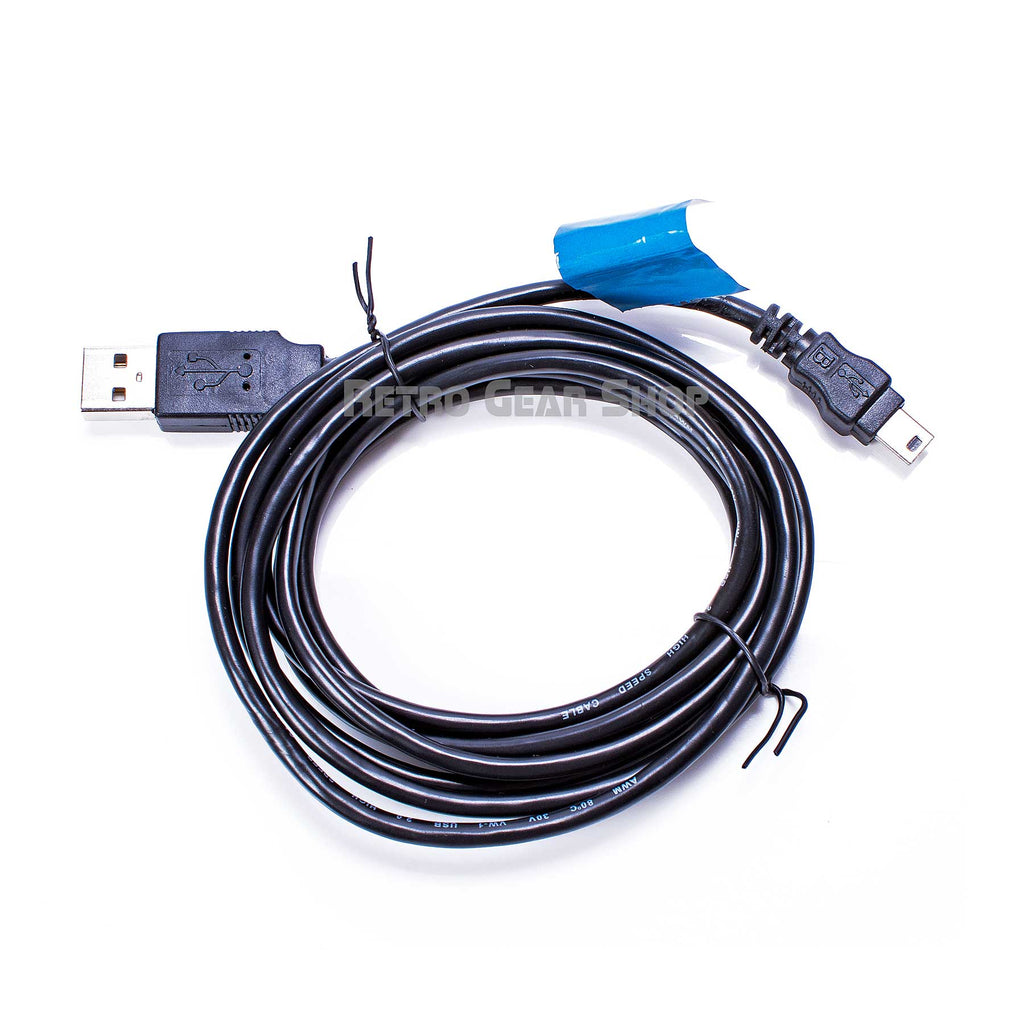

Wes Audio Dione USB Cable
Wes Audio Dione Front Left

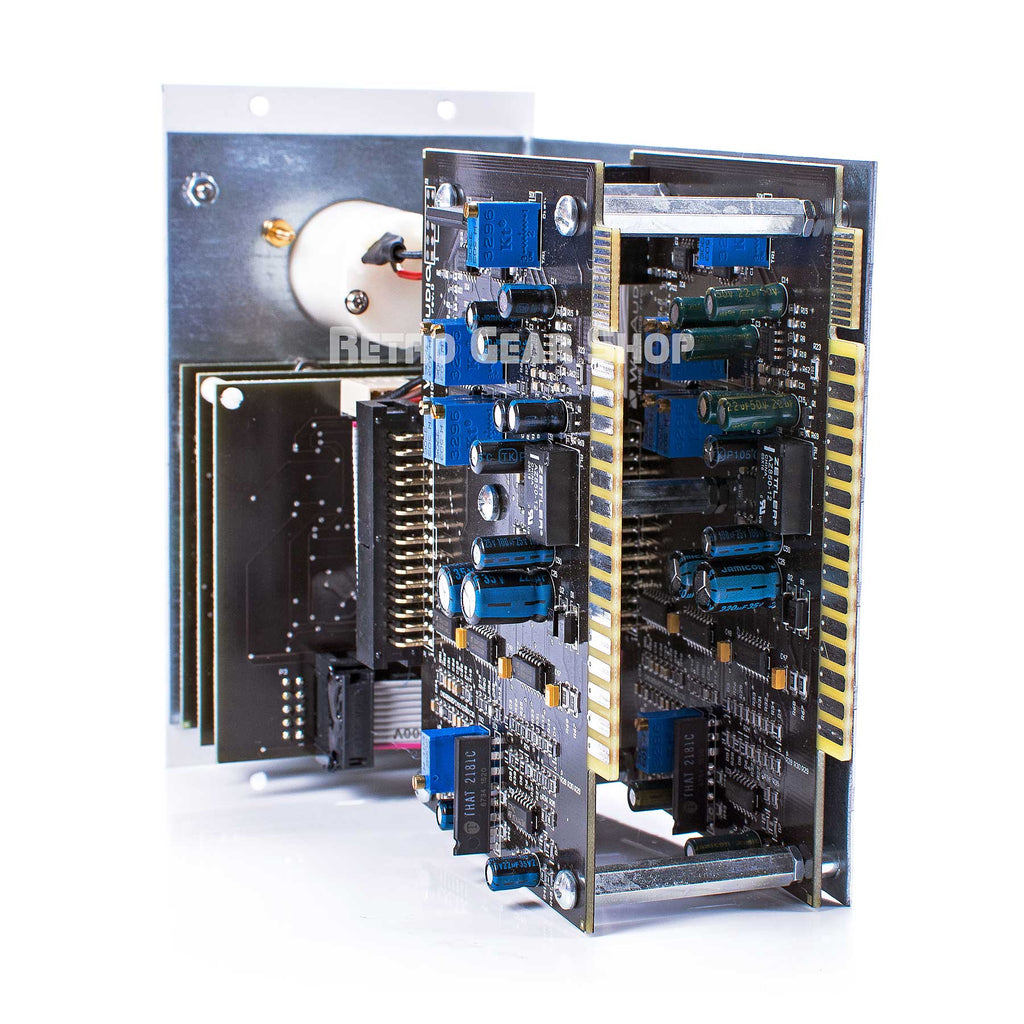

Wes Audio Dione Back Rear

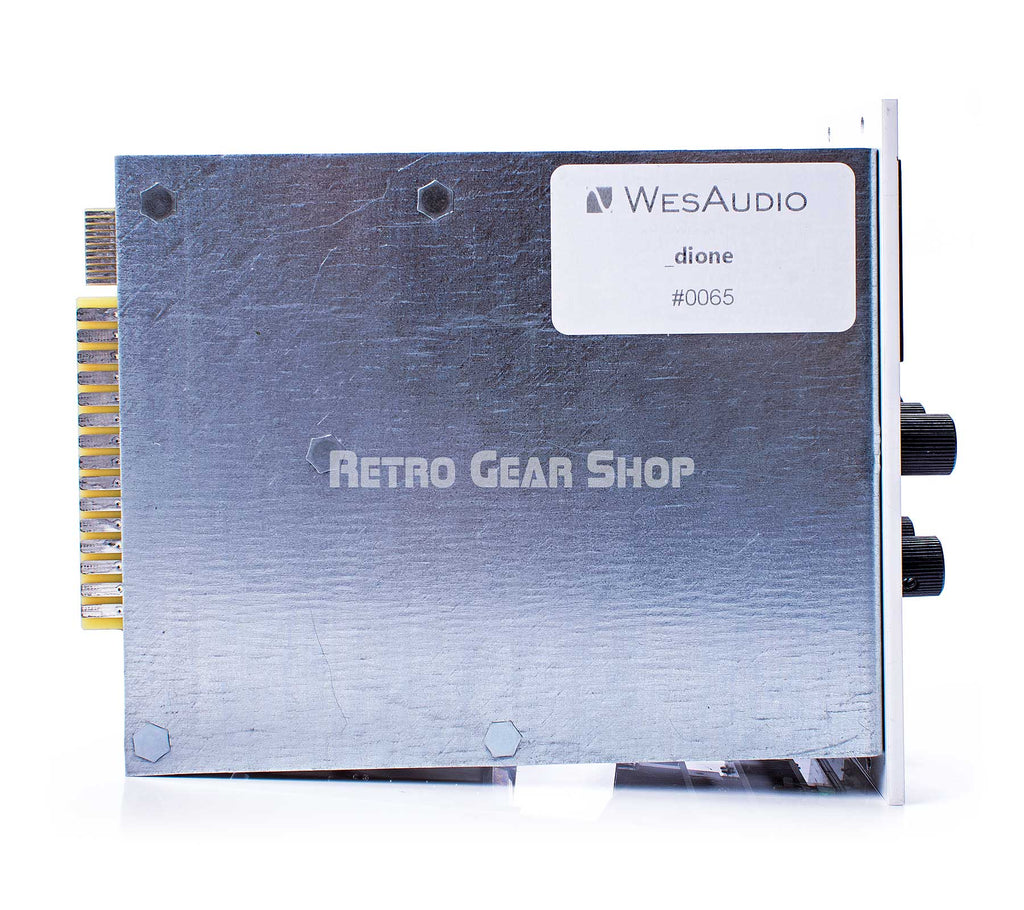

Wes Audio Dione Left

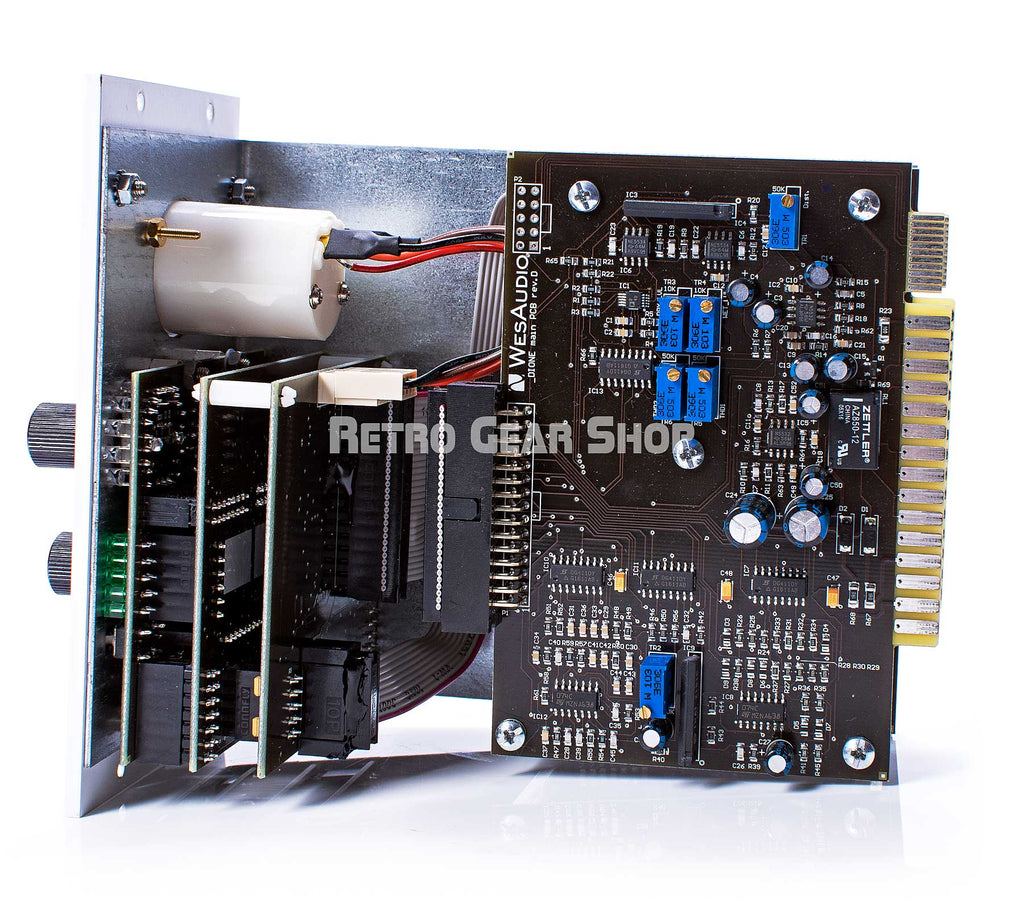

Wes Audio Dione Right Internals

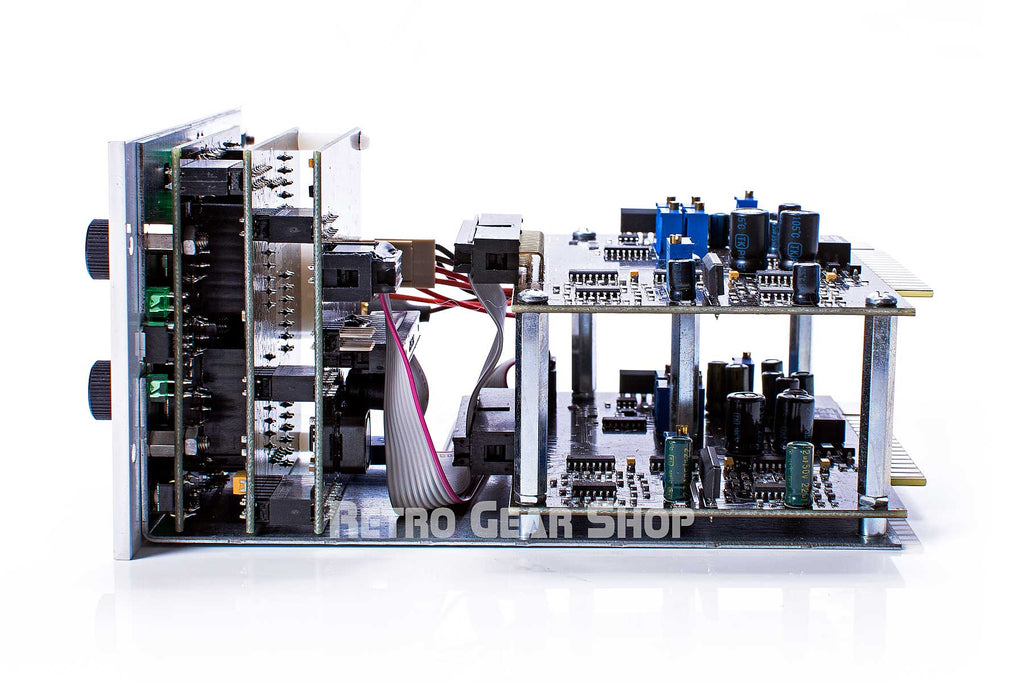

Wes Audio Dione Bottom

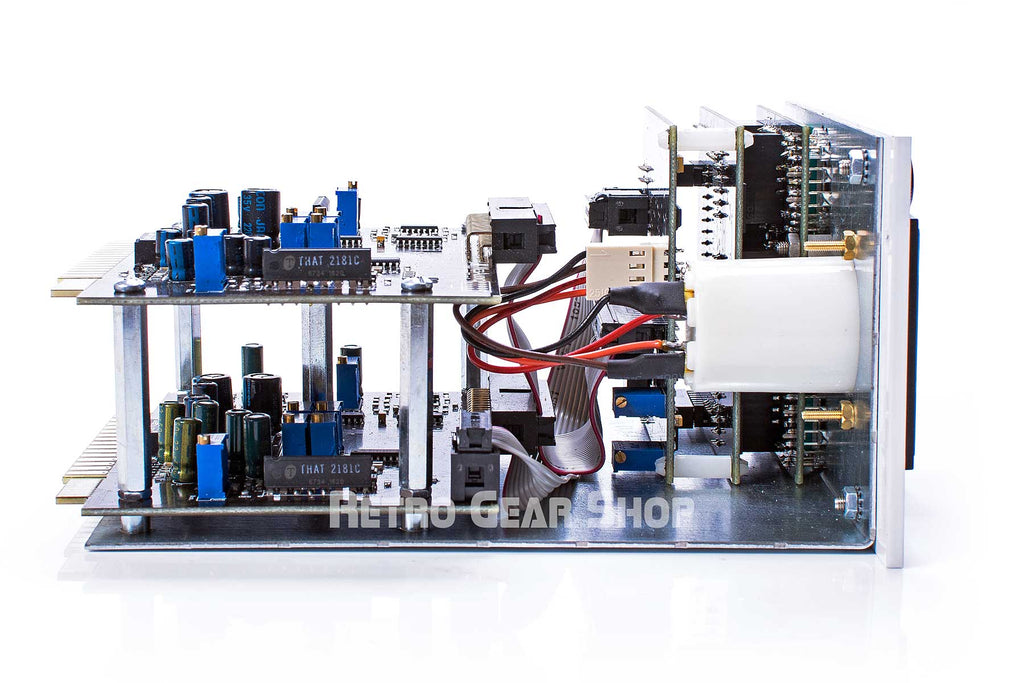

Wes Audio Dione Top
