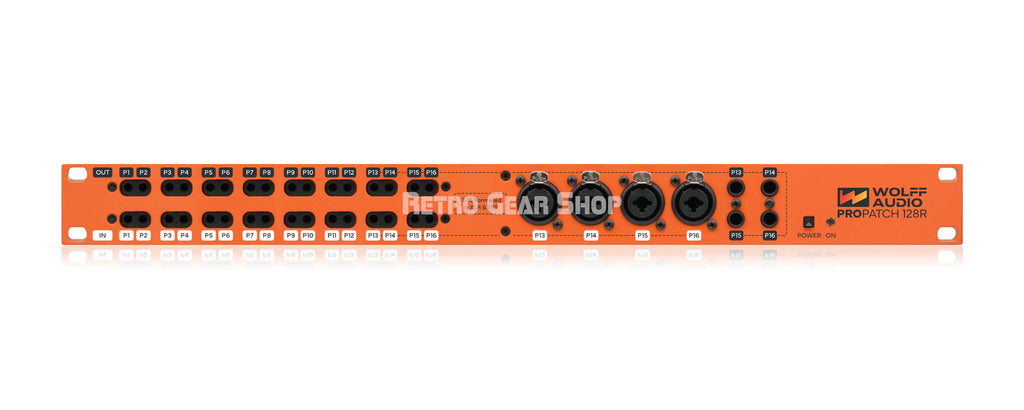

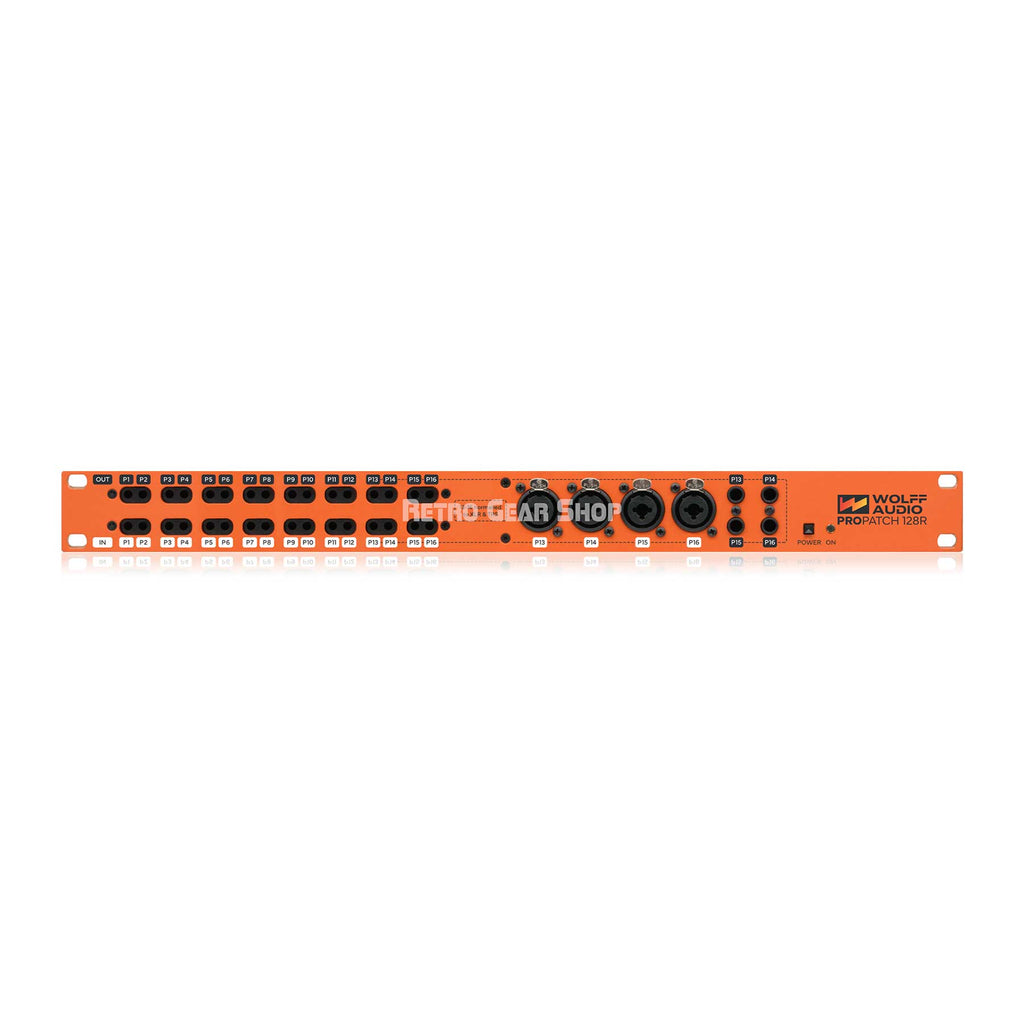

Wolff Audio ProPatch 128R 128-Point Digitally Controlled Analog Patchbay (64 in / 64 out)
We respect your privacy and don't share your email with anybody.
Alert me if this item is restocked
We have cancelled your request.
At the heart of every ProPatch is Wolff Audio’s proprietary relay based, software controlled switching architecture. A patchbay’s role is to route signals without affecting them—a purely passive connection. ProPatch contains no buffers, amplifiers, or active electronics in the signal path. None. Active circuitry, by definition, alters how connected gear interacts: introducing noise, affecting impedance, shifting frequency response, and potentially disrupting 48V phantom power. ProPatch’s relay based passive signal path delivers direct, balanced routing with no coloration, no interference, and no compromise.
ProPatch signal chains are configured and managed using an app that supports Windows, Mac or iPad OS. The app provides easy to use creation of complex device chains, including mults, mono to stereo, inserts, processors, AB groups and many more intuitive and useful shortcuts. All of these can be saved, recalled and associated with sessions.
• 128 PATCH POINTS, 64 X 64 I/O, ANY-TO-ANY ROUTING
• STRAIGHT WIRE PERFORMANCE, RELAY BASED, ZERO ELECTRONICS IN THE SIGNAL PATH
• FREQUENCY RESPONSE FROM DC TO LIMIT OF THE TEST EQUIPMENT
• 0% DISTORTION AND NOISE, DC TO LIMIT OF THE TEST EQUIPMENT
• 100% BALANCED INTERNAL SIGNAL PATH
• CONFIGURE ROUTING PRESETS FOR INSTANT RECALL
• LAST USED PROPATCH CONFIGURATION IS NON-VOLATILE AND AUTO-LOADS ON POWER UP
• USE THE “WOLFF HOUND” UTILITY APP TO CONNECT TO A PROPATCH ON THE NETWORK
• CREATE SIGNAL CHAINS WITH “AB” BLOCKS TO AUDITION ALTERNATE DEVICES AND PATHS
• ACCEPTS MULTIPLE SIGNAL TYPES INCLUDING MIC, LINE, CONTROL VOLTAGE, MIDI AND TIMECODE
• PASSES 48V PHANTOM POWER. SWITCHING IS INSTANT, ALLEVIATING PHANTOM SHORT ISSUES
• HIGHEST CHANNEL DENSITY PER RACK UNIT OF ANY PATCHBAY (TRADITIONAL OR AUTOMATED)
• SINGLE RACK UNIT CHASSIS, NO HEAT, NO FANS
WHAT’S IN THE BOX?
• POWER SUPPLY (UBIQUITOUS USB-C)
