Zahl EQ1 + 500 Dual Rack Combo Deal

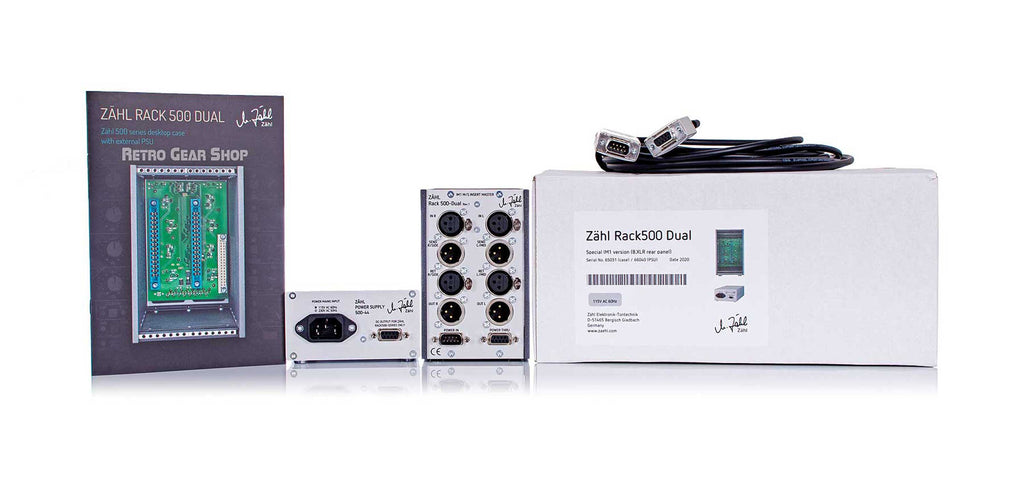

For sale is a combo bundle discount deal. This listing includes both a Zahl EQ1 module with a 500 Dual Rack. Save some buying these together.
The legendary ZÄHL EQ from the state-of-the-art mixing console AM1 in the API 500 format, and the 500 series desktop case with external PSU. This is the highest quality dual channel 500 series rack on the market, incredible build quality with plenty of power to supply high end modules.
Zahl EQ1
Twin Contest
HI with BELL/SHELF and MID with fully parametric BELL – same quality standard, but different circuit technologies and sound character. For optimum versatility MID frequency range switchable to HI range, HI frequency applicable at HI MID band. Similar: LO and LO MID.
Single band switching
- Individual ON/OFF switching
- Direct comparison each band ON/OFF while leaving GAIN pot in position
- Minimizing noise/preserving signal integrity by switching OFF unused bands
For sensitive use
- Global EQ GAIN setting 5dB or 15dB
- GAIN resolution enhancement
- Easier restoration of GAIN setting
- Direct comparison of different GAIN setting
__
Zahl Rack-500 Dual

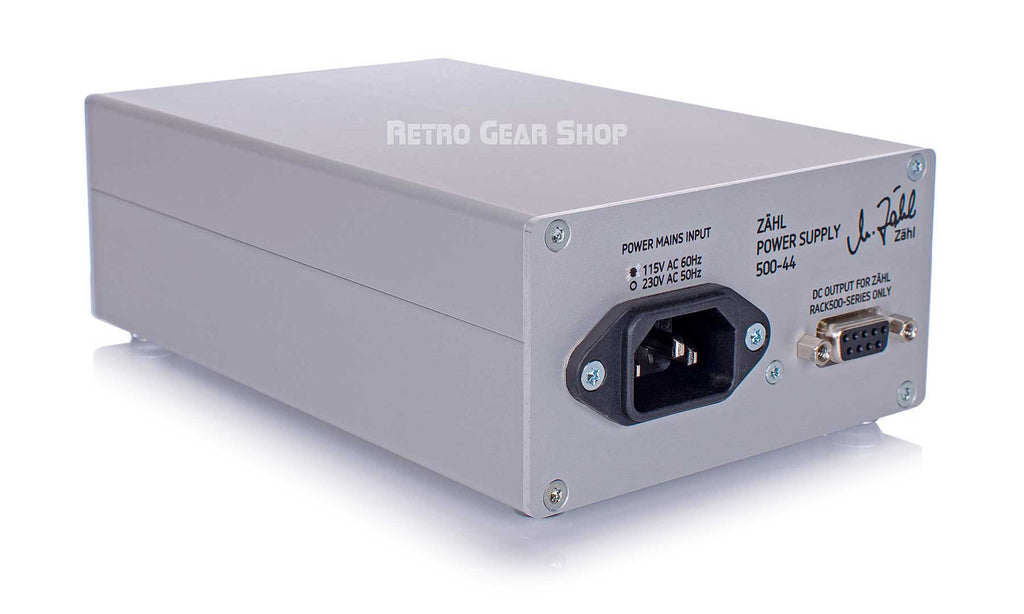

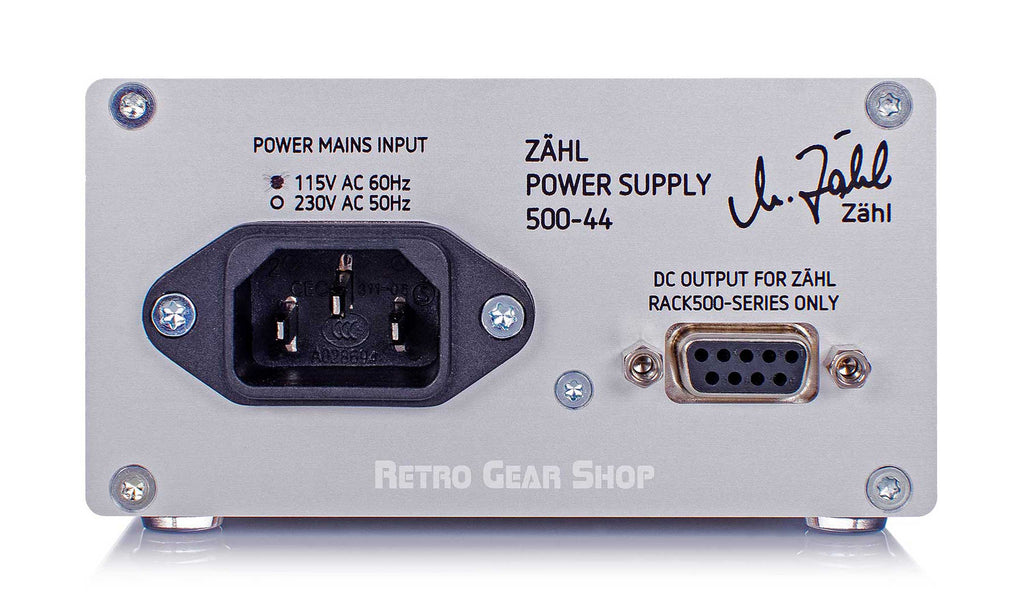

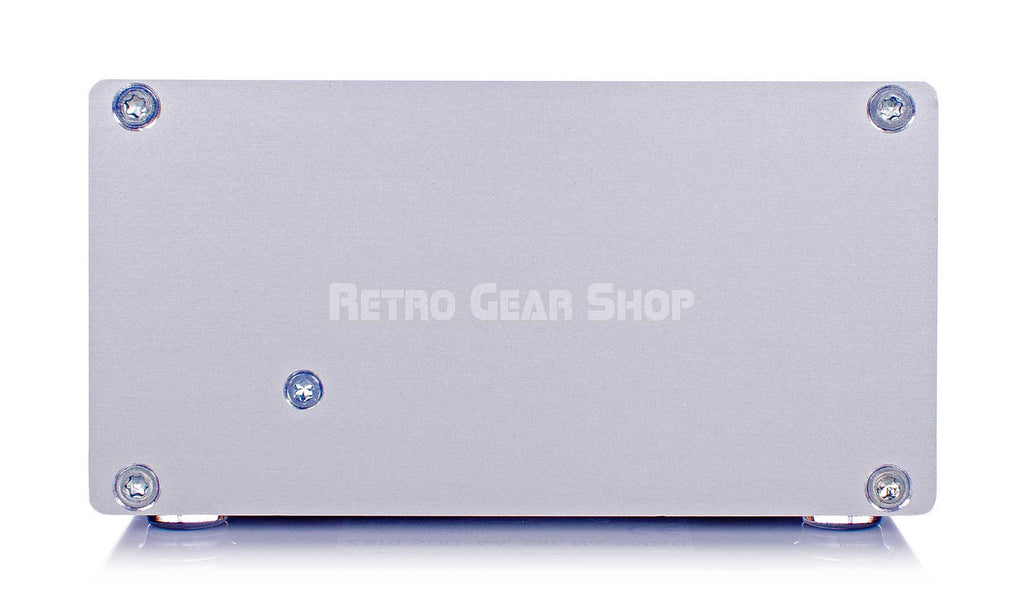

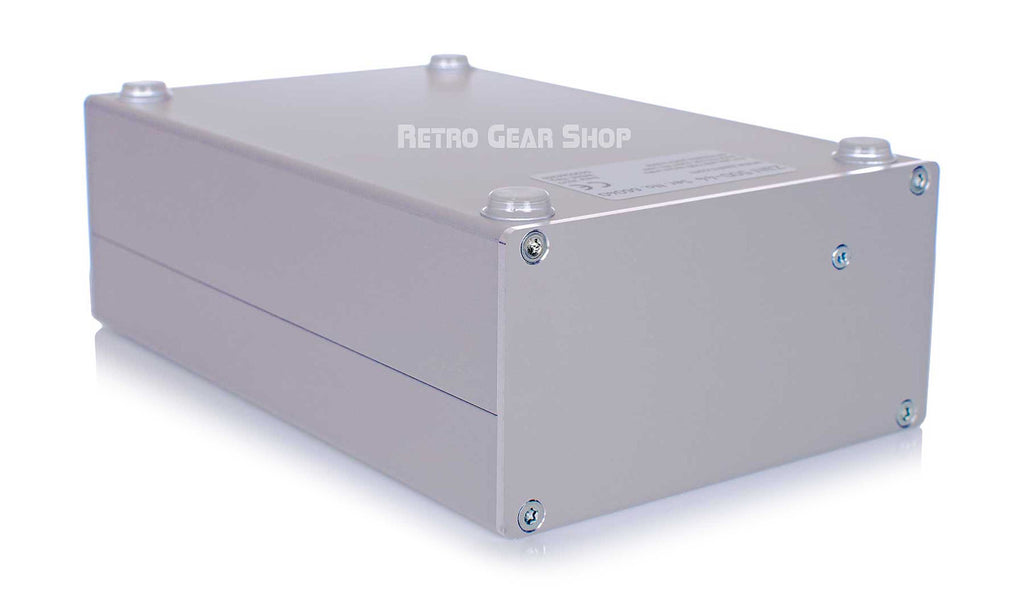

External PSU
External PSU with power transformer, rectifier, filtering and pre-stabilization can be placed up to 6m away from rack avoiding any interference.
Power Regulators for +/-16V and +48V inside rack. Optimal, extremely short audio signal path, XLR connectors and module connectors on same PCB.

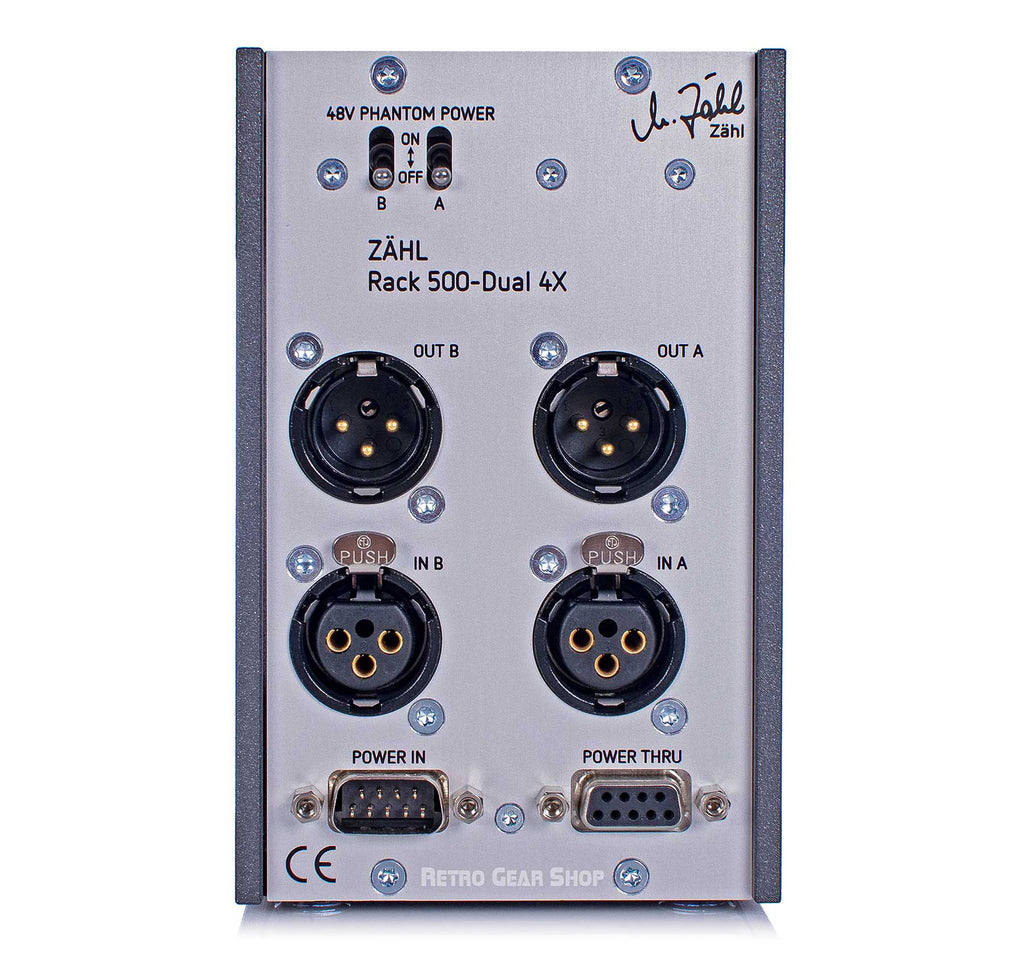

High grade connectors
High grade connectors, power STANDBY switch, +48V switchable for each slot.

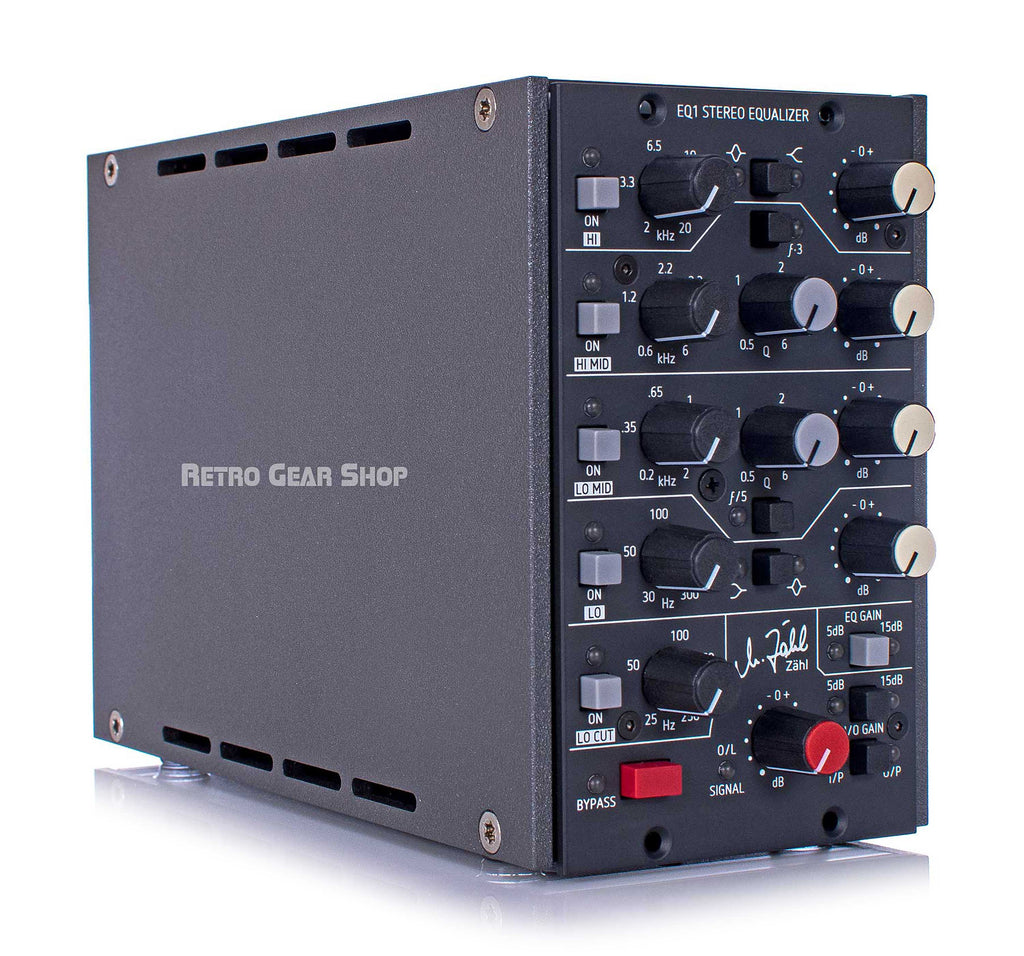

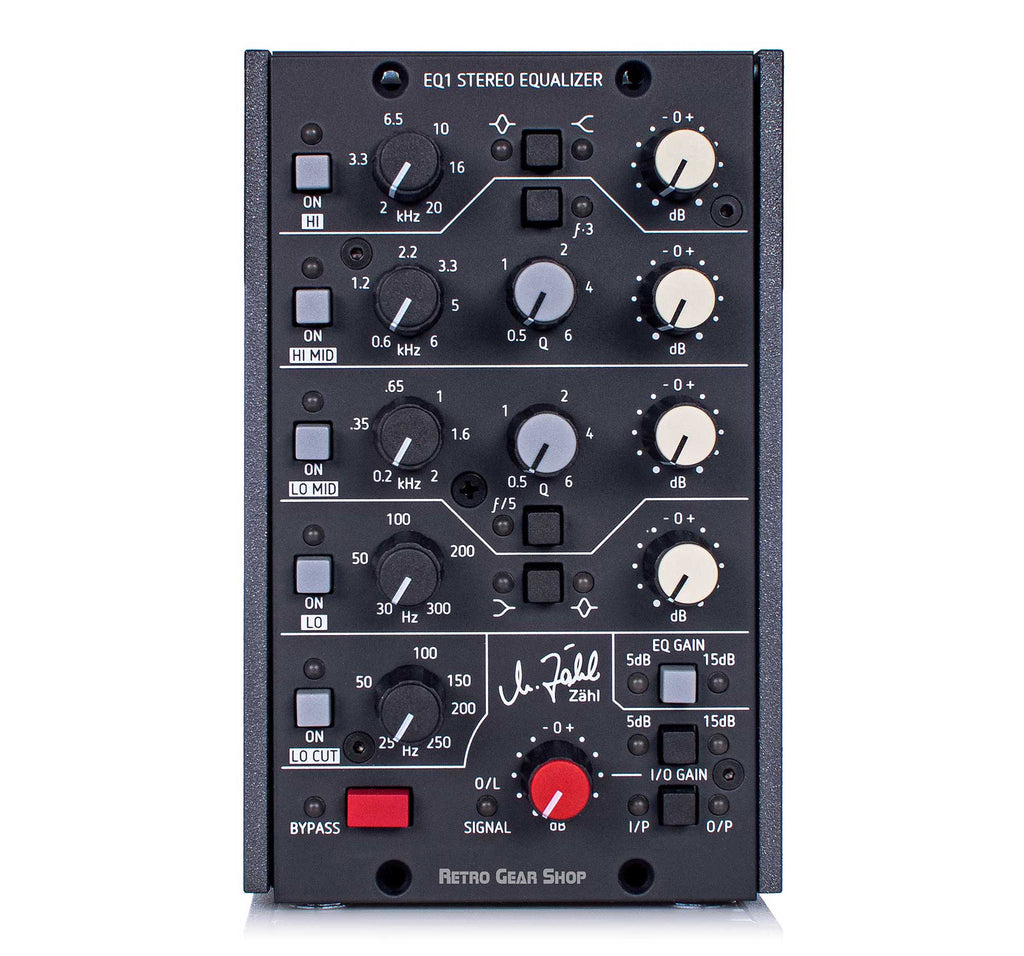

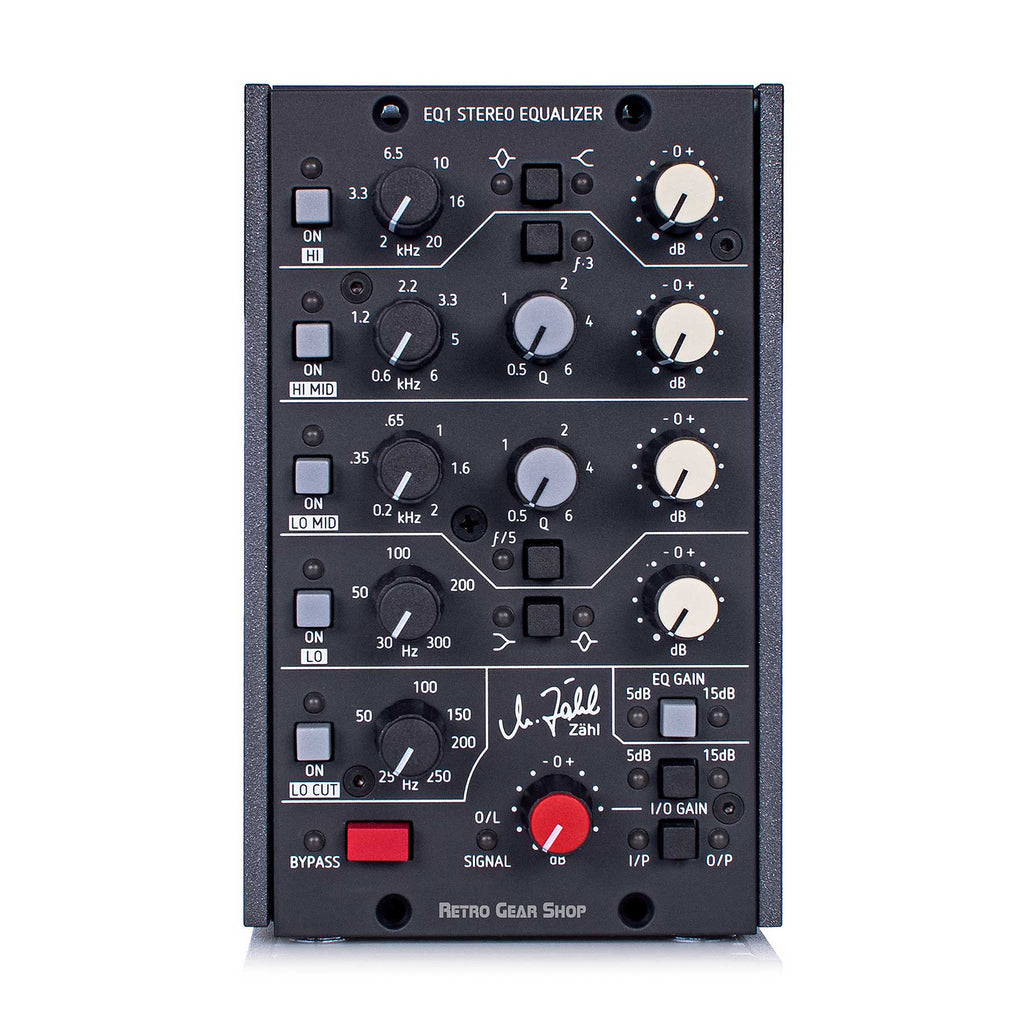

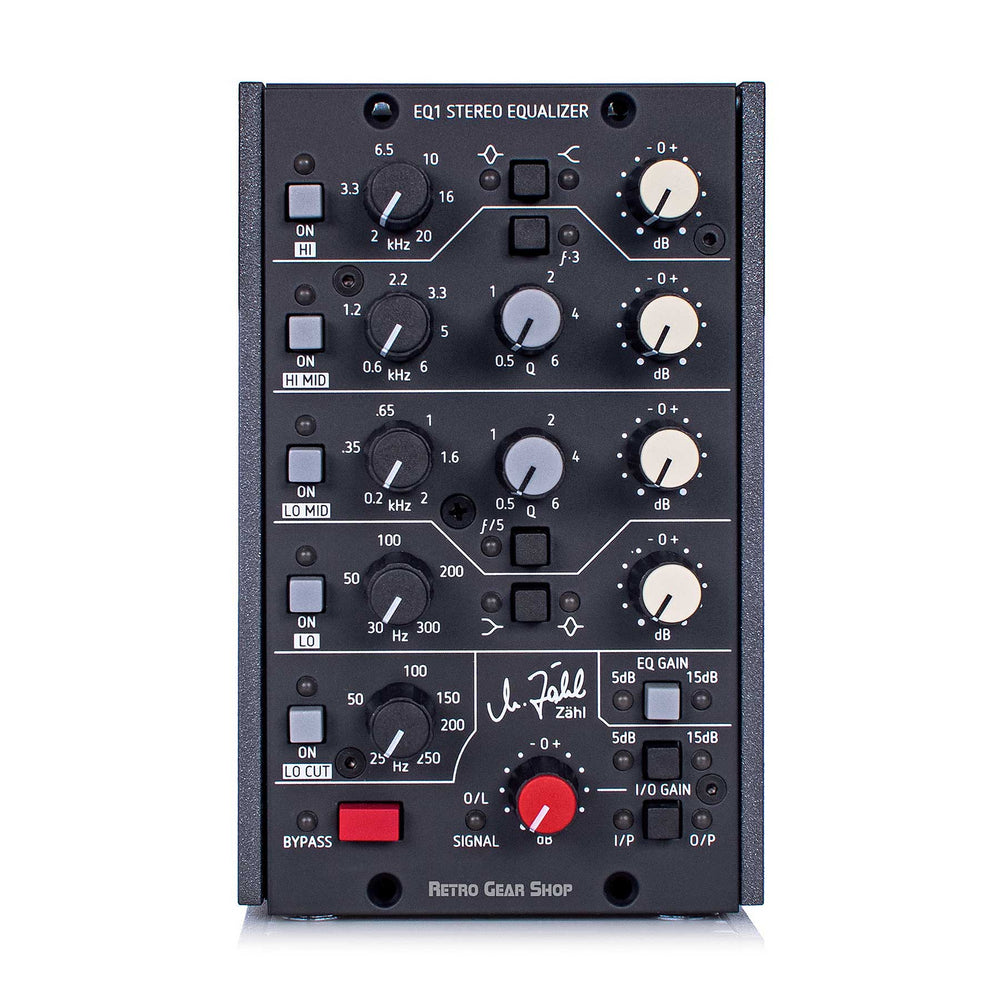

Zahl EQ1
Stereo design for mix & mastering as well as voices & instruments
- Highly musical design
- Intuitive, user-friendly, self-explaining layout
- Lowest noise and distortion signal paths built with highest quality components
- Audio switching on EQ gain potentiometer zero position for bypassing unused stages
- No microprocessor, no clock pulses, sequential logic only
- Individual power stabilization on each module, no switched power circuitry
- Fully compatible with API 500 module series specs, occupying two slots
I/O Stage
- Electronically balanced, max. level > +26dBu
- True overall hard bypass (relais), disconnecting I/Os
- Gain stage switchable to input or output, thus optimizing headroom vs. noise
- Gain range +/- 15 dB or +/-5dB, trimmed zero gain at mid position
- SIGNAL LED (green) level present
- O/L LED (red) overload warning driven by 10 checkpoints throughout signal chain
HI EQ
- Gain range +/- 15 dB or +/-5dB, bypass in mid position
- Individual ON/OFF switch
- Frequency 2 kHz to 20 kHz
- BELL/SHELF characteristic switchable for effective treatment or sensitive adjustment with very soft slope and ‘airy’ character
HI MID EQ
- Gain range +/- 15 dB or +/-5dB, bypass in mid position
- Frequency 600 Hz to 6 kHz
- Frequency range switchable to 1.8 kHz to 18 kHz (x3)
- Adjustable Q-factor
LO MID EQ
- Gain range +/- 15 dB or +/-5dB, bypass in mid position
- Frequency 200 Hz to 2 kHz
- Frequency range switchable to 40 Hz to 400 Hz (/5)
- Adjustable Q-factor
LO EQ
- Gain range +/- 15 dB or +/-5dB, bypass in mid position
- Frequency 30 Hz to 300 Hz
- BELL/SHELF characteristic switchable with slight sub frequency roll-off at high gain shelf
LO CUT
- Frequency adjustable 25 Hz to 250 Hz
- Individual ON/OFF switch
__
Zahl Rack-500 Dual
- Fully compatible to API 500 series standard
- Linear power circuitry, no interference from clock pulses etc.
- 120V 60Hz USA & 230V 50Hz for use in Europe
