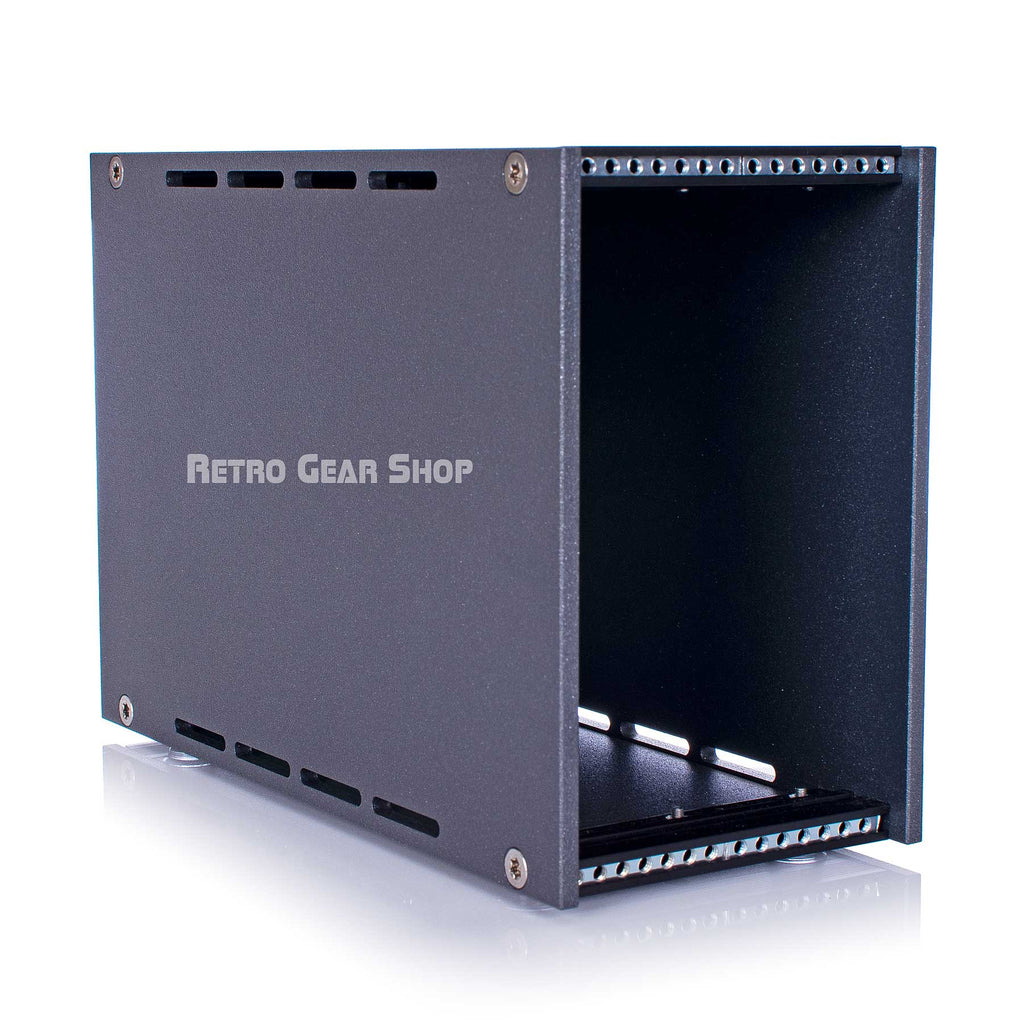

Zahl Rack-500 Dual 500 Series Power Supply Chassis

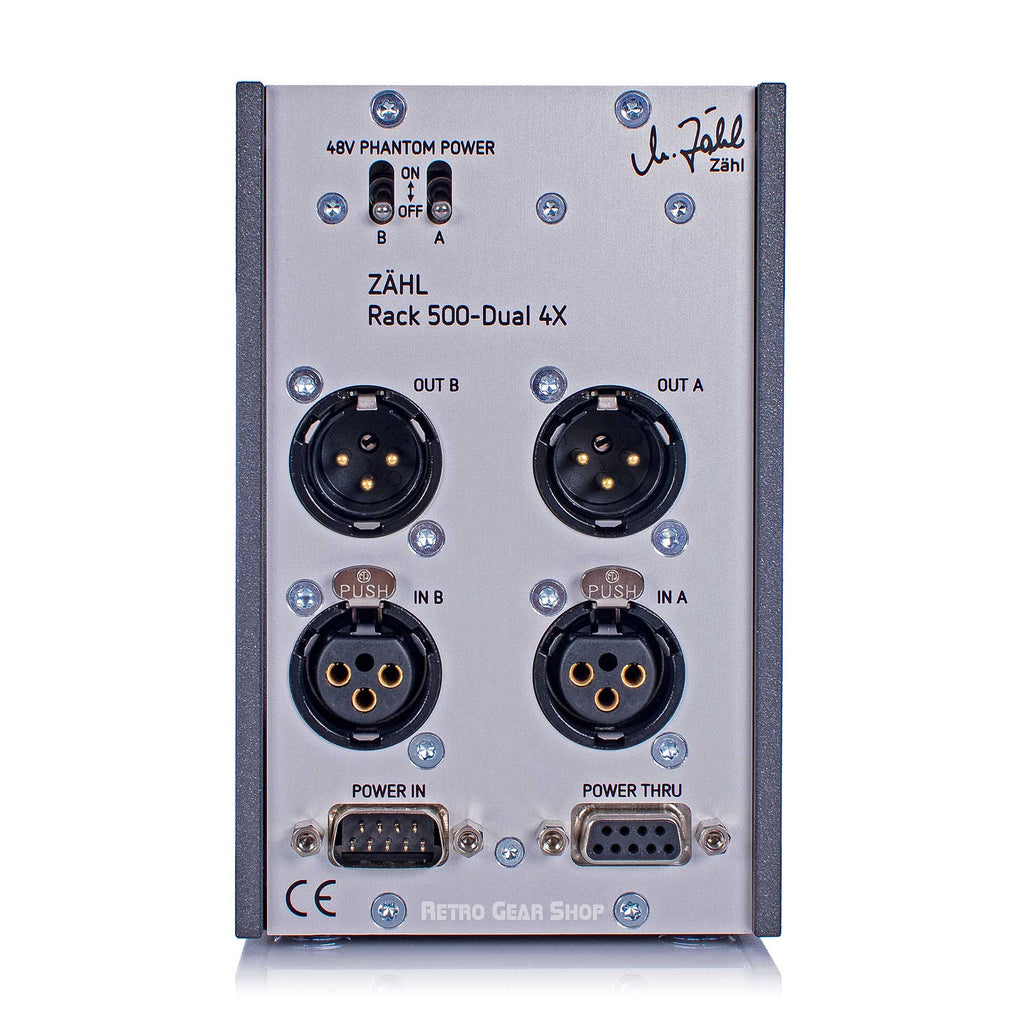

Zahl Rack-500 Dual Rear
Zahl Rack-500 Dual Front
Zahl Rack-500 Dual IM1 Rear
Zahl Rack-500 Dual IM1 Front
Zahl Rack-500 Dual IM1 Right Rear
Zahl Rack-500 Dual Front Left
Zahl Rack-500 Dual EQ1 Racked Angle
Zahl Rack-500 Dual EQ1 Racked
Zahl Rack-500 Dual Power Supply Front
Zahl Rack-500 Dual Power Supply Rear
Zahl Rack-500 Dual Power Supply Top Left
Zahl Rack-500 Dual Power Supply Bottom Right
Zahl Rack-500 Dual Box Manual Cable Power Supply
Zahl Rack-500 Dual Power Supply Cable
Zahl Rack-500 Dual Front

Zahl Rack-500 Dual

Regular price $930

HomeOutboard/Recording500 SeriesZahl

Zähl Rack-500 Dual

500 series desktop case with external PSU.
This is the highest quality dual channel 500 series rack on the market, incredible build quality with plenty of power to supply high end modules.

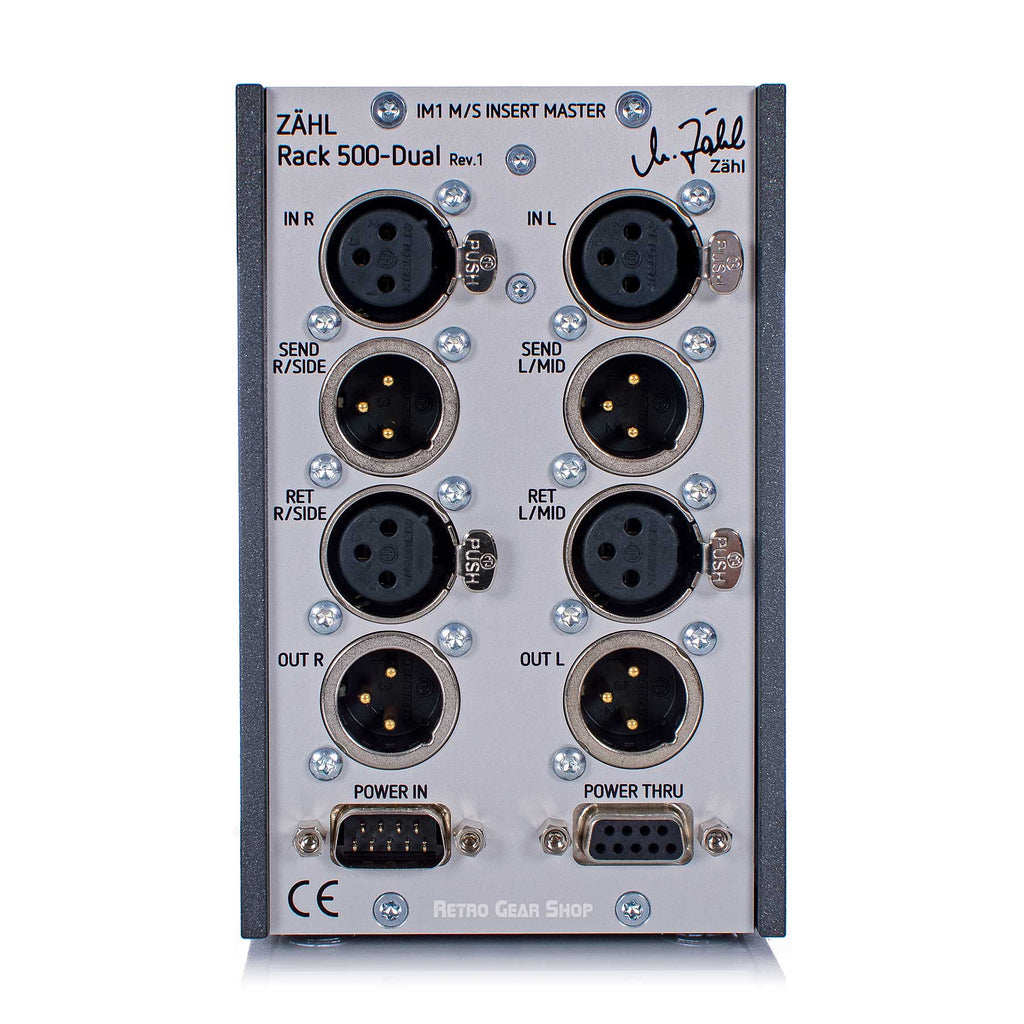

Standard version is appropriate for any regular 500 series units with 2 xlr-in & 2 xlr out. If you want a rack for a Zähl IM1 M/S Insert Master, select the IM1 version, specifically equipped for an IM1 module with 4 xlr-in & 4 xlr-out.

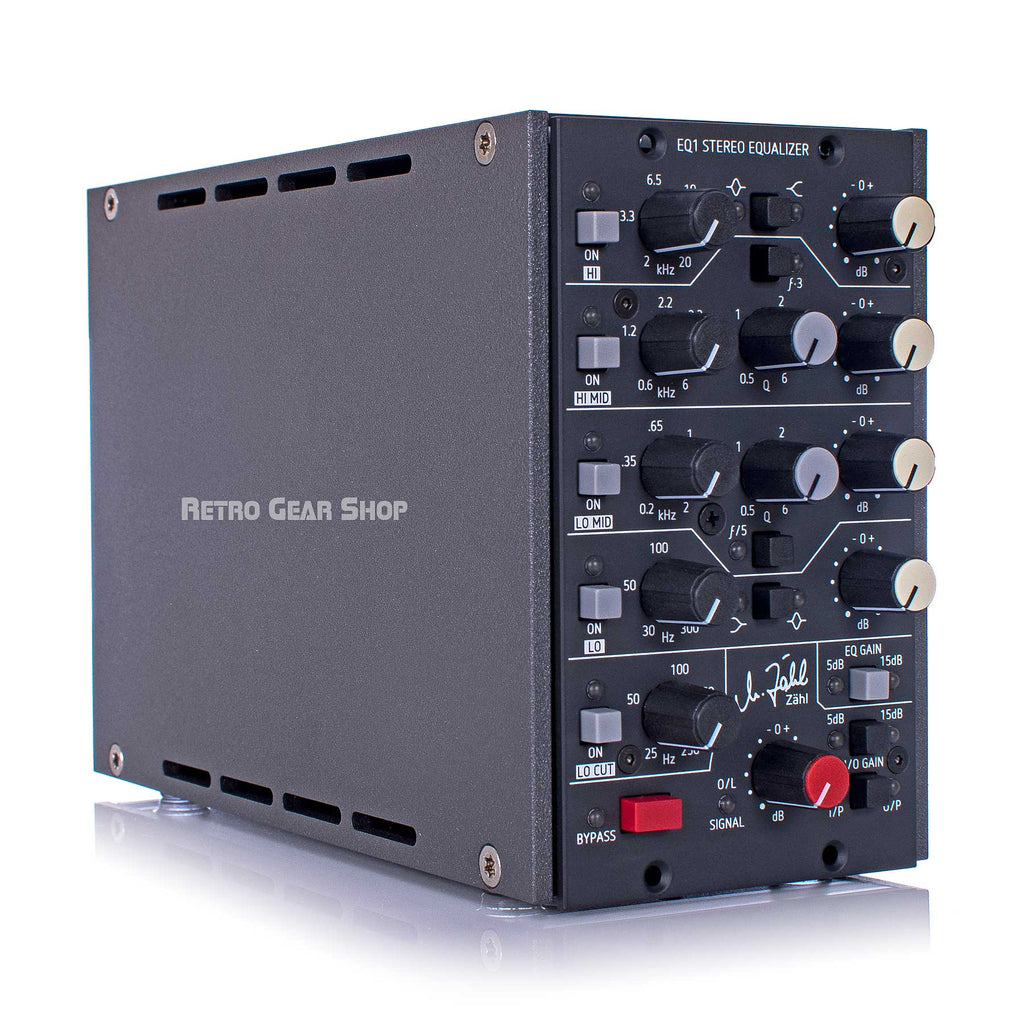

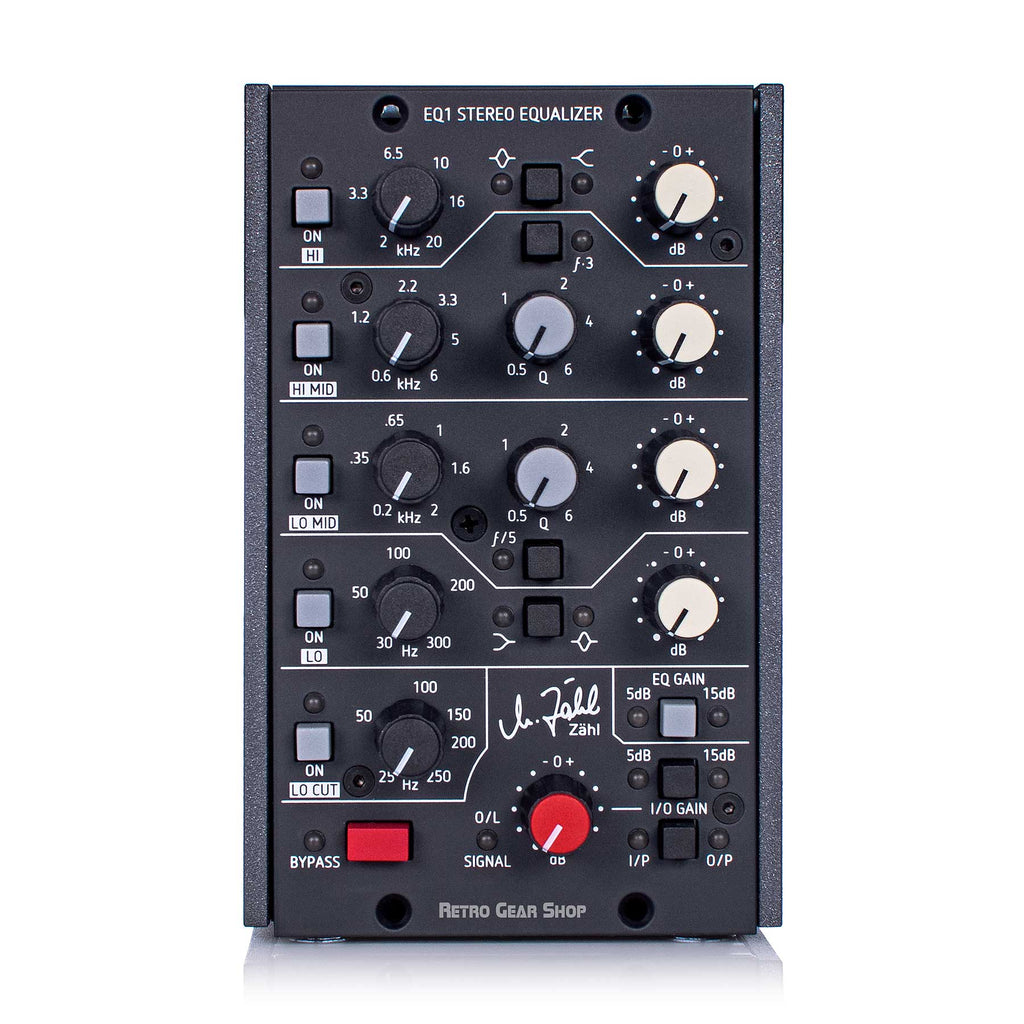

Rack comes empty, loaded EQ1 in photos is for example purposes only and is not included. This product includes rack, box, manual, power supply and power cable.

Retro Gear Shop is the exclusive USA Authorized dealer for Zähl products.
High quality Level - Why Another 500 Series Rack

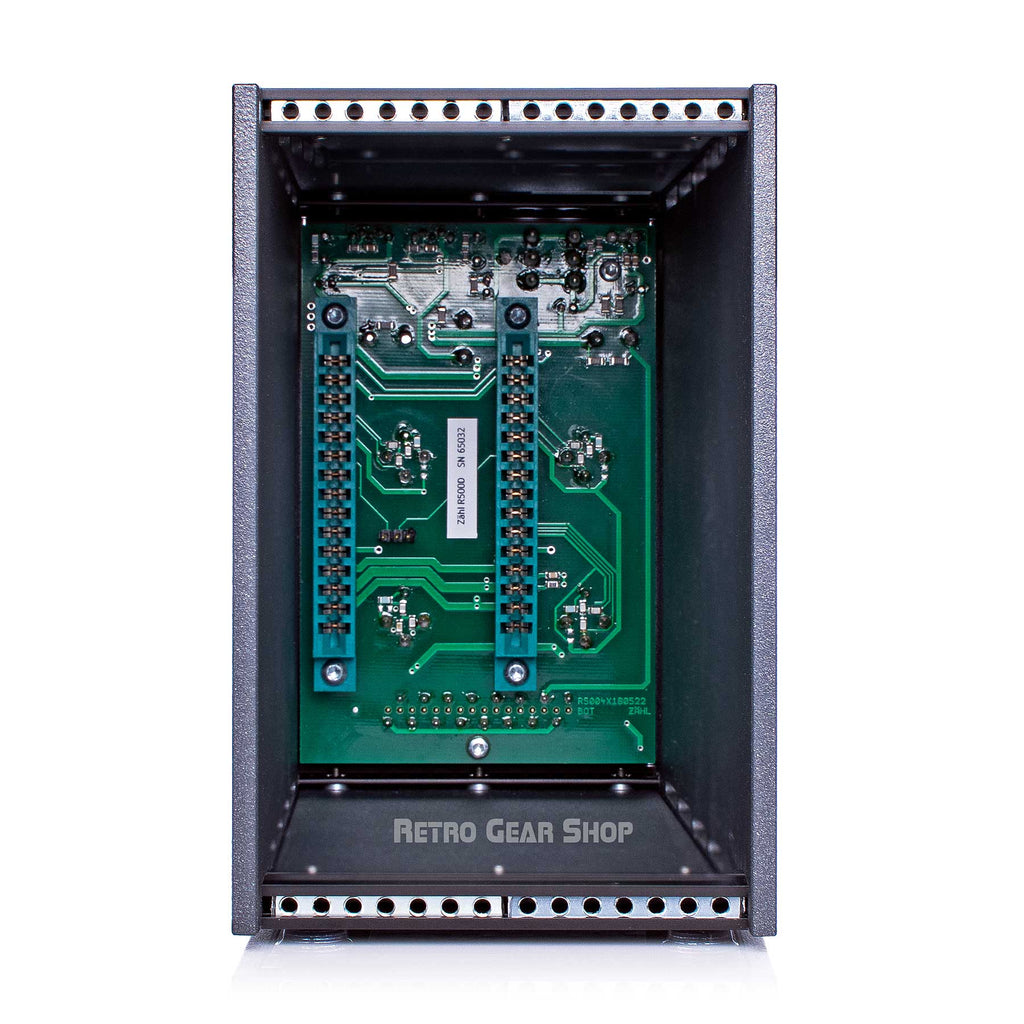

Concerning quality, our 500 series products are as accurate as top class 19” audio equipment. The only catch: The rack they are operated in has to be at the same quality level. Otherwise the user can not benefit the superb performance. Rack 500 Dual provides what we think is the best technical environment for 500 series units. It holds up to two single space modules or one double space module.

By its compact and lightweight design it can be easily placed in the “sweet spot” when being operated.

Special Features

External PSU

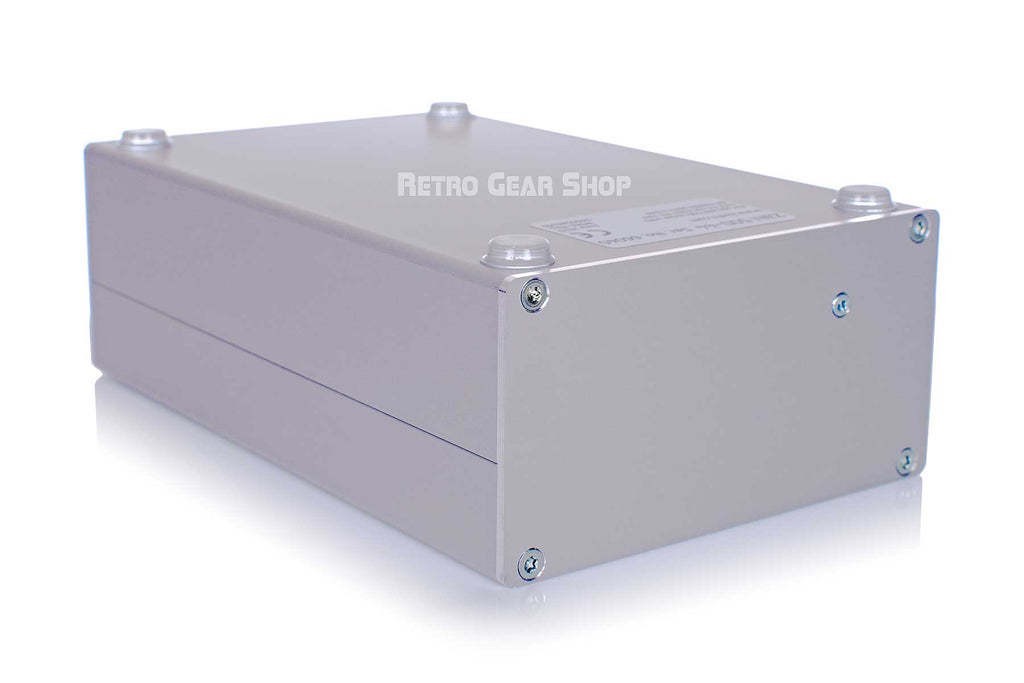

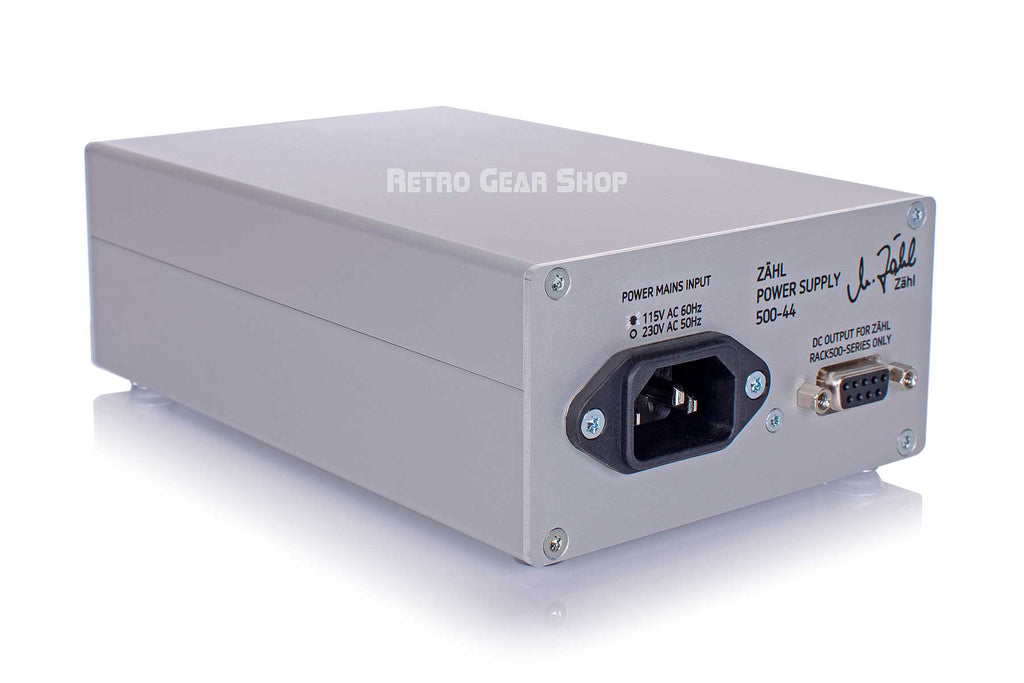

External PSU with power transformer, rectifier, filtering and pre-stabilization can be placed up to 6m away from rack avoiding any interference. One PSU can supply two ZÄHL Rack 500 Duals.

Power Regulators
for +/-16V and +48V inside rack. Optimal, extremely short audio signal path, XLR connectors and module connectors on same PCB.

High grade connectors
High grade connectors, power STANDBY switch, +48V switchable for each slot. POWER THRU for second rack.
More design features

- Fully compatible to API 500 series standard
- Linear power circuitry, no interference from clock pulses etc.
- One PSU can supply two racks, 6m cable to first rack, 4m daisy chain cable to second rack
- 120V 60Hz USA & 230V 50Hz for use in Europe

Zahl Rack-500 Dual Manual
Zahl Rack-500 Dual Front
Zahl Rack-500 Dual IM1 Rear

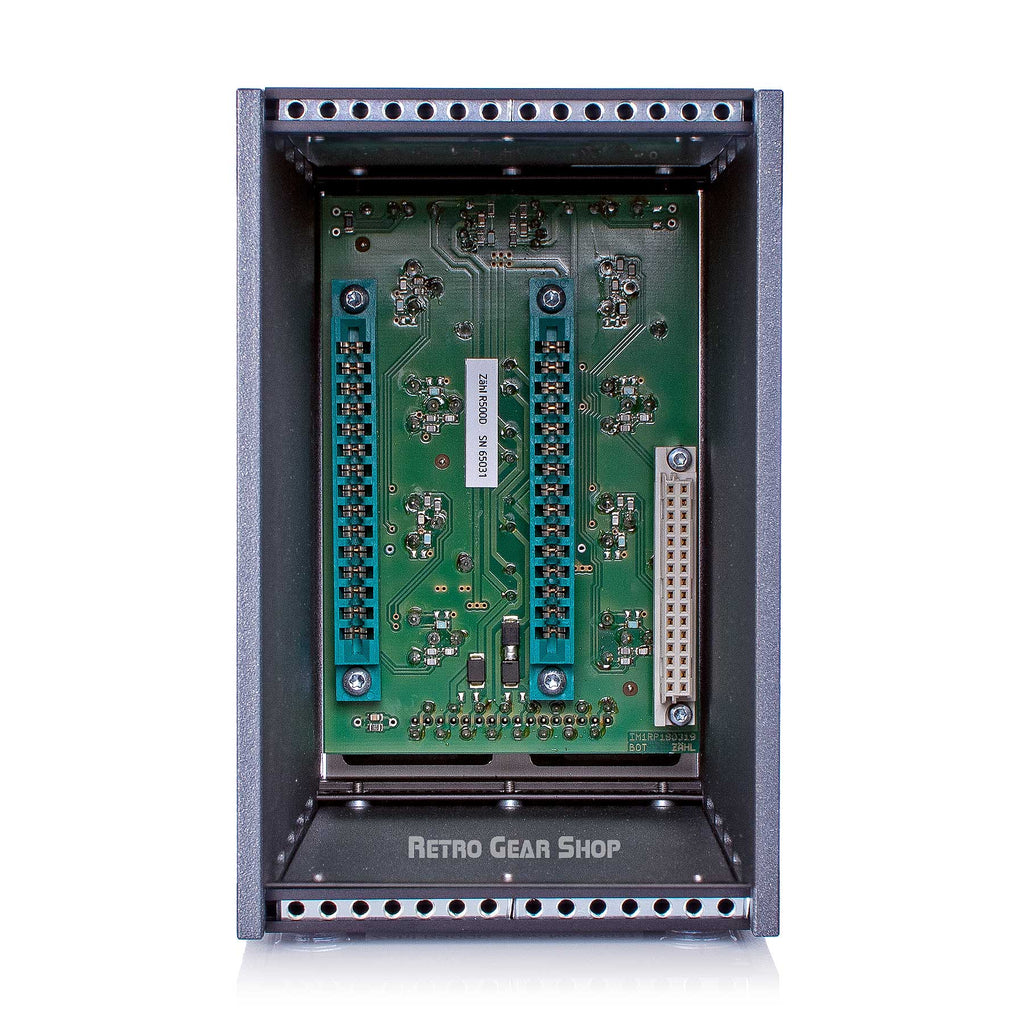

Zahl Rack-500 Dual IM1 Front

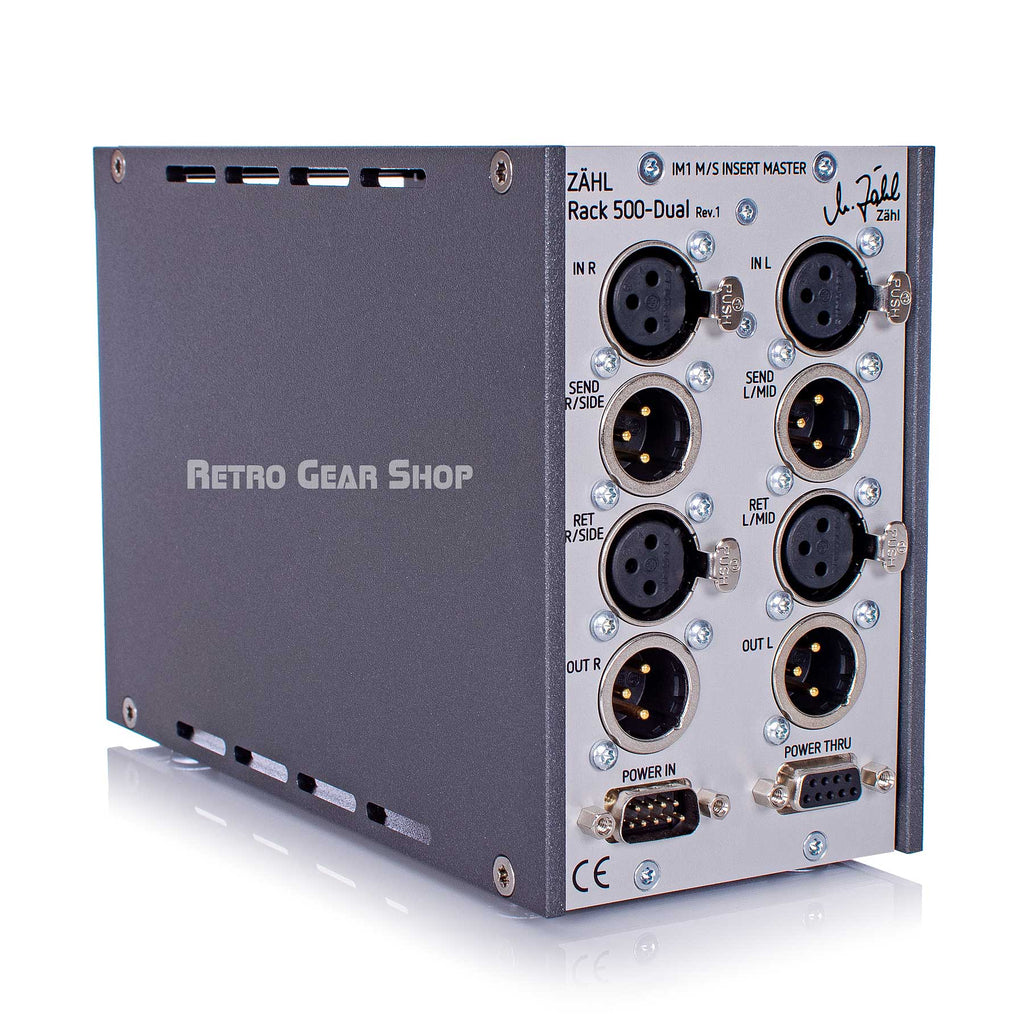

Zahl Rack-500 Dual IM1 Right Rear
Zahl Rack-500 Dual Front Left
Zahl Rack-500 Dual EQ1 Racked Angle
Zahl Rack-500 Dual EQ1 Racked

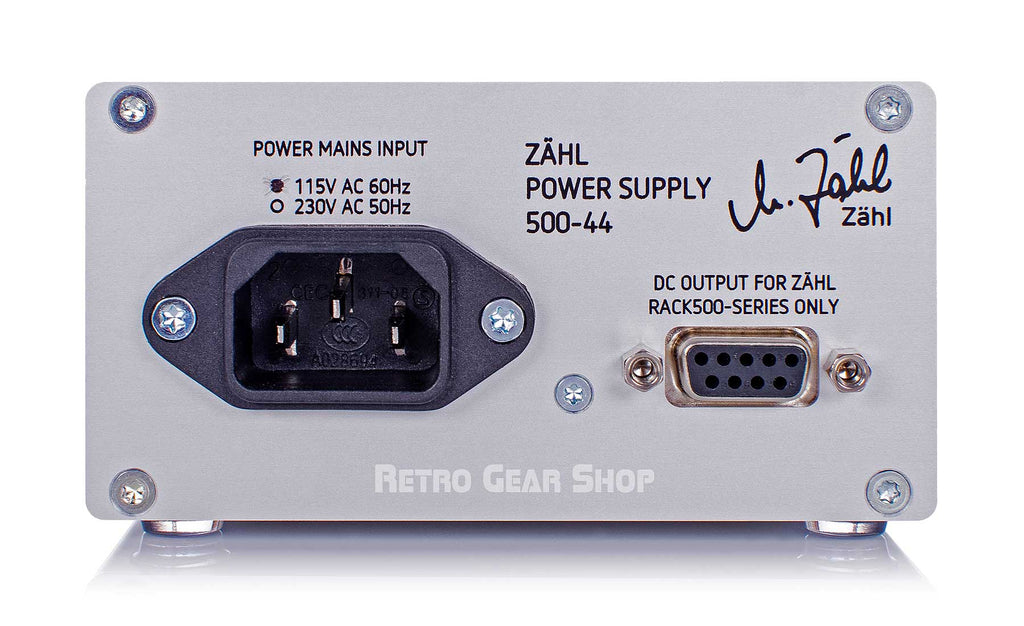

Zahl Rack-500 Dual Power Supply Front

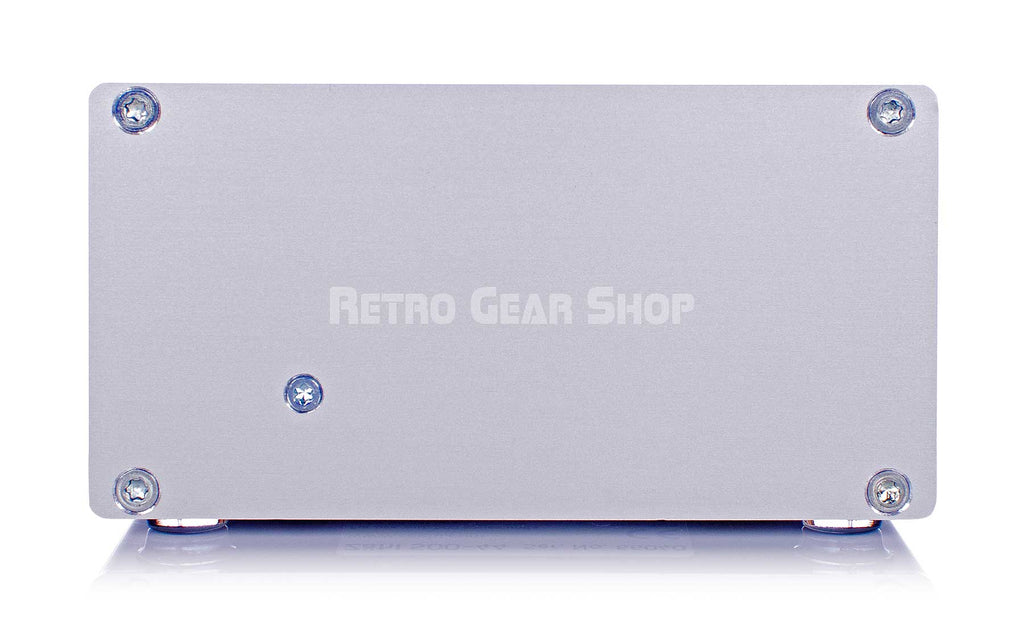

Zahl Rack-500 Dual Power Supply Rear
Zahl Rack-500 Dual Power Supply Top Left
Zahl Rack-500 Dual Power Supply Bottom Right

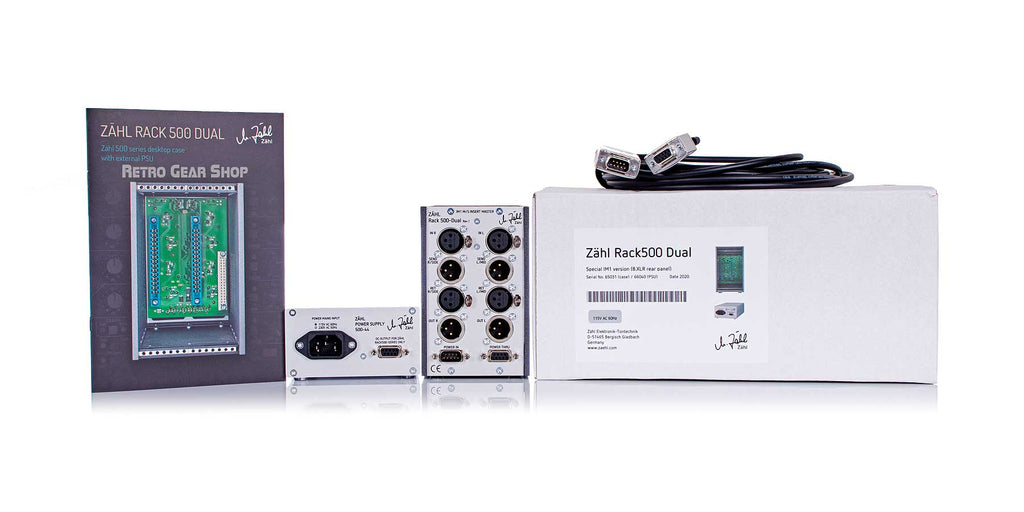

Zahl Rack-500 Dual Box Manual Cable Power Supply

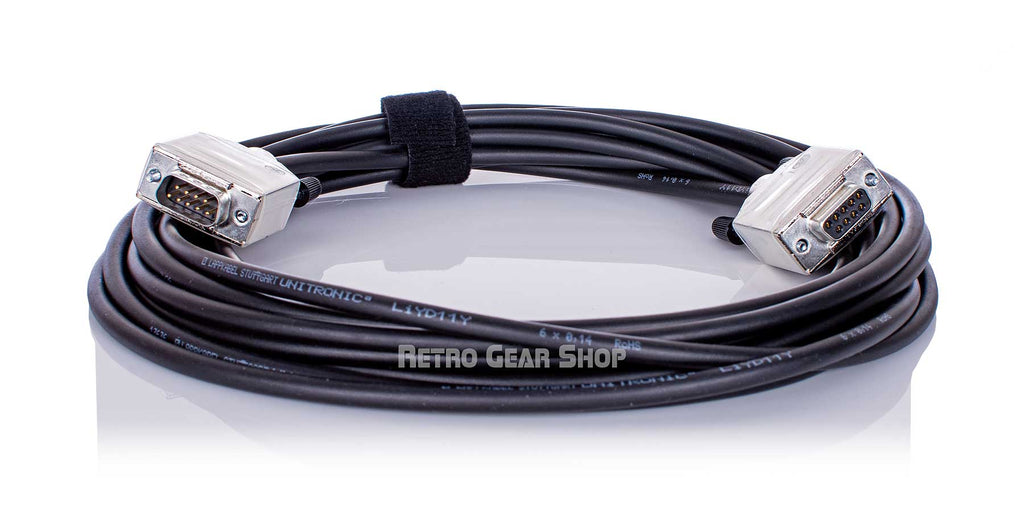

Zahl Rack-500 Dual Power Supply Cable
