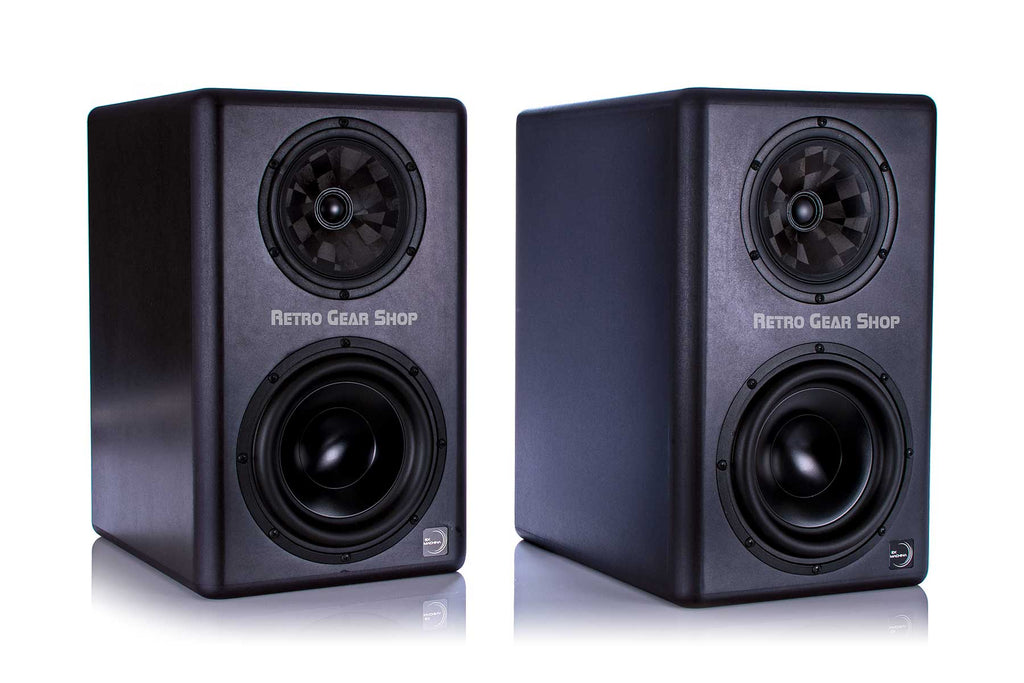

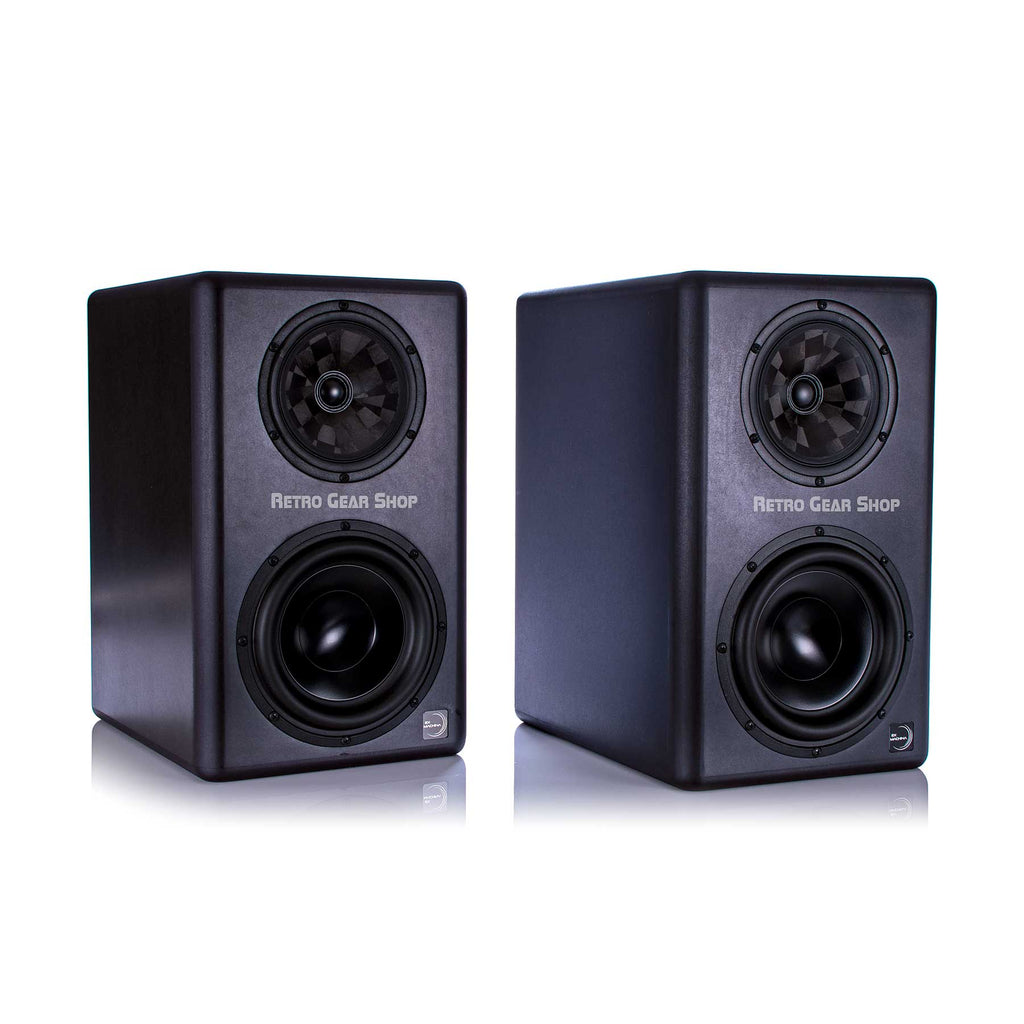

Ex Machina Soundworks Pulsar MKII Pair
Pulsar is an ideal choice for nearfield and midfield monitoring applications in any setup, or as primary monitors in small to medium sized rooms.
Pulsar features custom SEAS drivers with cutting edge diaphragm materials, acoustically inert, sealed Valchromat cabinets, Hypex Ncore amps and AKM Velvet Sound conversion, and a dedicated SHARC DSP per speaker deploying proprietary calibration technology. And, like all Ex Machina monitors, it offers an ultra-wide sweet spot, linear phase and magnitude response, vanishingly low distortion and superb transient response, for effortless clarity and highly detailed insight into your mixes.
Any questions, contact us!
Retro Gear Shop is an authorized Ex Machina Soundworks dealer.
Brand New with full Warranty.
Pulsar is an ideal choice for nearfield and midfield monitoring applications in any setup, or as primary monitors in small to medium sized rooms.
Pulsar features custom SEAS drivers with cutting edge diaphragm materials, acoustically inert, sealed Valchromat cabinets, Hypex Ncore amps and AKM Velvet Sound conversion, and a dedicated SHARC DSP per speaker deploying proprietary calibration technology. And, like all Ex Machina monitors, it offers an ultra-wide sweet spot, linear phase and magnitude response, vanishingly low distortion and superb transient response, for effortless clarity and highly detailed insight into your mixes.
Any questions, contact us!
Retro Gear Shop is an authorized Ex Machina Soundworks dealer.
Brand New with full Warranty.
Magnitude Linearity: +/- 1db 35hz – 30khz
Phase Linearity: +/- 15° 35hz – 30khz
Maximum Continuous SPL (per pair at 1m): 106db at 35hz, 113db 100hz – 30khz
THD+N (94db at 1m): less than .5% 100hz – 30khz
Directivity Index: 90° conical coherence

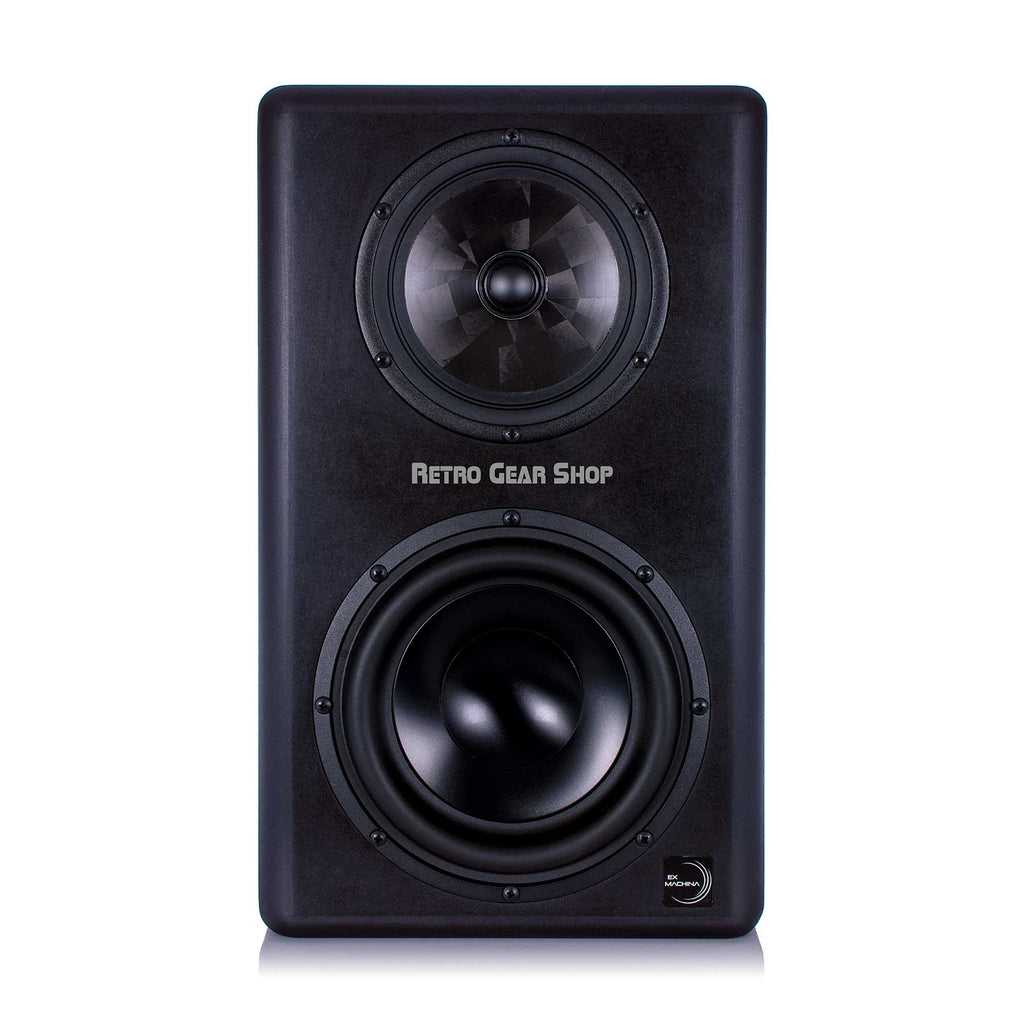

Driver Complement
1”/25mm Ora Graphene Audio’s GrapheneQ™ tweeter, coaxial arrangement with midrange
6.5”/176mm Textreme thin-ply woven carbon fiber midrange, underhung surround, FEA optimized tweeter waveguide
8”/221mm long throw aluminum alloy subwoofer
Amplifiers
Hypex Ncore – 250W RMS Subwoofer, 100W Midrange, 100W RMS Tweeter
Crossovers
200hz, 2khz8th order, phase corrected
Dimensions
(HxWxD)482 x 289 x 396 mm (19 x 11.4 x 15.6 inches)
Weight
25kg / 55lbs per speaker
Phase Linearity: +/- 15° 35hz – 30khz
Maximum Continuous SPL (per pair at 1m): 106db at 35hz, 113db 100hz – 30khz
THD+N (94db at 1m): less than .5% 100hz – 30khz
Directivity Index: 90° conical coherence
Driver Complement
1”/25mm Ora Graphene Audio’s GrapheneQ™ tweeter, coaxial arrangement with midrange
6.5”/176mm Textreme thin-ply woven carbon fiber midrange, underhung surround, FEA optimized tweeter waveguide
8”/221mm long throw aluminum alloy subwoofer
Amplifiers
Hypex Ncore – 250W RMS Subwoofer, 100W Midrange, 100W RMS Tweeter
Crossovers
200hz, 2khz8th order, phase corrected
Dimensions
(HxWxD)482 x 289 x 396 mm (19 x 11.4 x 15.6 inches)
Weight
25kg / 55lbs per speaker
